QSFP-100G-SR4-S

QSFP-100G-SR4-S

QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM 10-3142-01 Transceiver Module

The QSFP-100G-SR4-S Transceiver Module Compatible with Nexus 3000 Series N3K-C3232C,Nexus 9000 Series (Modular 9500) N9K-X9432C-S,Nexus 9000 Series (Fixed 9200) N9K-C92160YC-X.Please buy it by our web.

item no.:
QSFP-100G-SR4-
brand:
Top-Trans
Warranty:
1 Year
Temperature:
0 to 70°C
Data Rate:
100G
Distance:
100m
Wavelength:
850nm
Connector:
MTP/MPO-12

contact now

Datasheet

product details

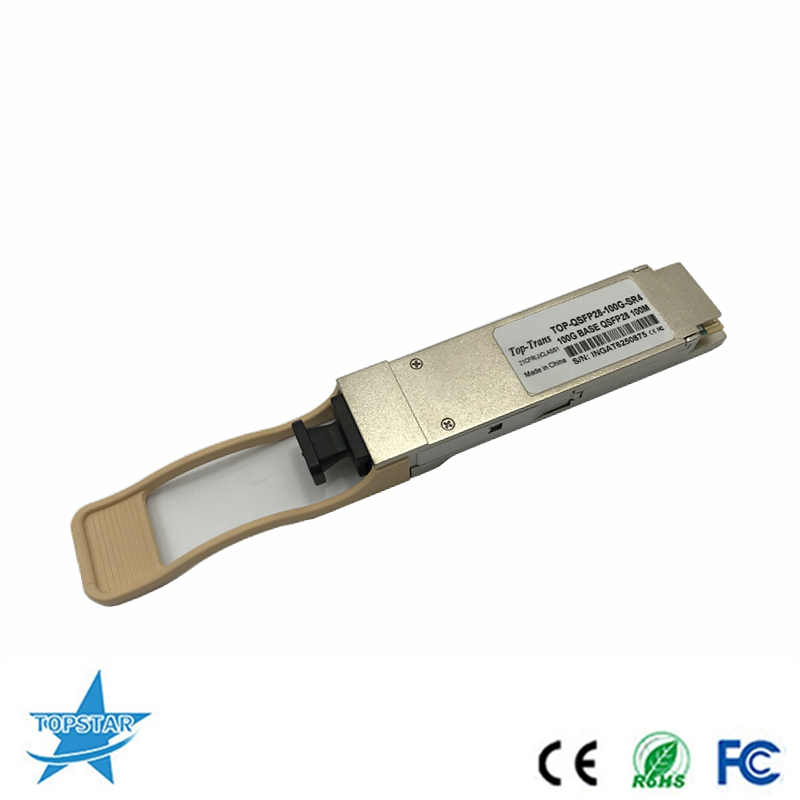

QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM 10-3142-01 Transceiver Module

Features

4 independent full-duplex channels
Up to 28Gb/s data rate per channel
QSFP28 MSA compliant
Compliant to IEEE 802.3bm 100GBASE-SR4
Up to 100m OM4 MMF transmission
Operating case temperature: 0 to 70oC
Single 3.3V power supply
Maximum power consumption 3.5W
MTP/MPO optical connector
RoHS-6 compliant

tags : QSFP-100G-SR4-S 100GBASE-SR4 QSFP28 QSFP28 850nm 100m 10-3142-01 Transceiver Module QSFP-100G 100m QSFP28 10-3142-01
