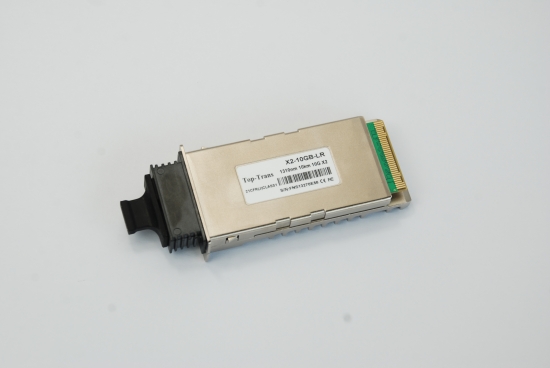

Compatible Finisar Juniper 10GBASE X2 1310nm 10km LR Transceiver Module

The X2 Module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface. An integrated Coder / Decoder and multiplexer / demultiplexer .


  • item no.:

    TOP-X2-10G-LR
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Brand new
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10GB
  • Distance:

    10KM
  • Wavelength:

    1310nm
  • Connector:

    SC
product details

Finisar  Juniper 10GBASE X2 1310nm 10km LR Transceiver Module

The 10GBASE X2 LR 10KM Transceiver is compatible with  equipments for 5G wireless network solution.


Features

  • Compatible with X2 MSA Rev2.0b
  • Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
  • Transmission Distance up to 10Km(SMF)
  • SC Receptacle 1310nm DFB Laser
  • SC Duplex Optical Connector
  • Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
  • Management and control via MDIO 2-wire interface
  • Power Supply :+3.3V, APS(+1.2V)
  • Diagnostic Optics Monitoring
  • Temperature Range: 0~ 70 °C
  • ROHS Compatible


Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System

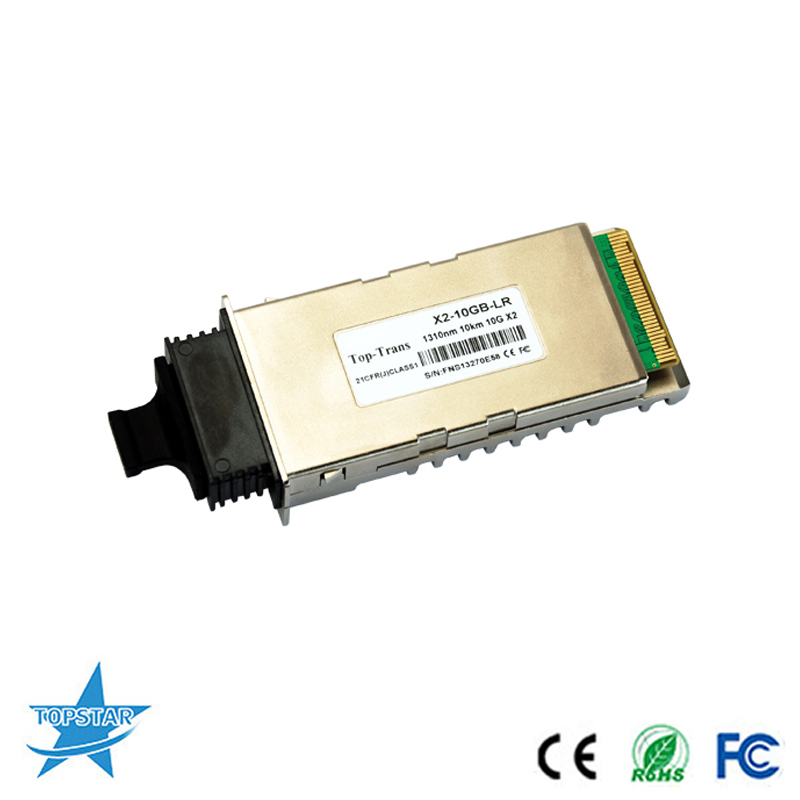

10G X2 LR


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner etc specialist testing equipment before shipment.

SFP transceiver



OEM& ODM

Customized label and package , OEM and ODM service offered

fiber transceiver manufacturer


Send Us An Inquiry

We will contact you as soon as possible!
