Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers

item no.:
QDD-400G-ZRP-S
lead time:
2-3 working days
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
payment:
ex-w
Warranty:
3 Years
Condition:
New
Temperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃
Data Rate:
400G
Connector:
LC

contact now

product details

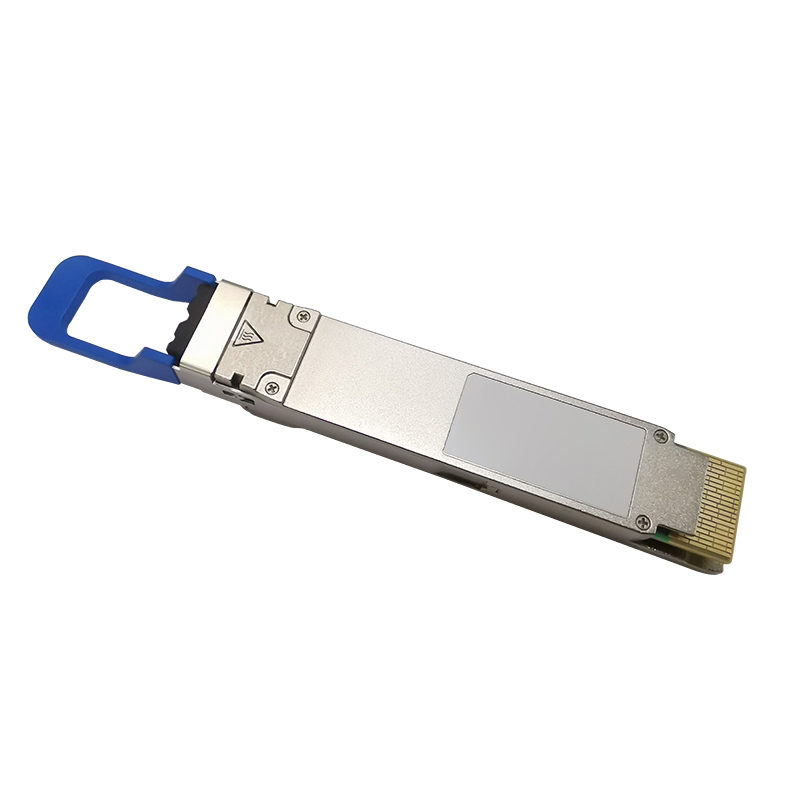

Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers

QDD-400G-ZRP-S

MSA and TAA Compliant 400GBase-ZR+ QSFP-DD Transceiver (SMF, Coherent, LC, DOM, Open ZR+)

Features

• QSFP-DD MSA compliant

• Hot pluggable QSFP-DD footprint (Type 2A)

• Supports 400/300/200/100Gbps Payload

• Duplex LC connector

• Tunable C-band Transmitter

• Coherent Receivers

• Power Dissipation < 21.3W

• Single +3.3V Power Supply

• 8x 26.5625GBd PAM4 Serial Electrical Interface (400GAUI-8, RS(544/514) FEC)

• 2x 26.5625GBd PAM4 Serial Electrical Interface (100GAUI-2, RS(544/514) FEC)

• 4x 25.78125GBd NRZ Serial Electrical Interface (CAUI-4, RS(528/514) FEC)

• O-FEC (15%) with 11.6dB Net Coding Gain

• Up to 1300km Point-to-Point Transmission on Single Mode Fibre

• Operating case temperature: -5oC to 80oC

• RoHS Compliant

Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.

OEM& ODM:

Customized label and package , OEM and ODM service offered

Send Us An Inquiry

We will contact you as soon as possible!

subject :
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
