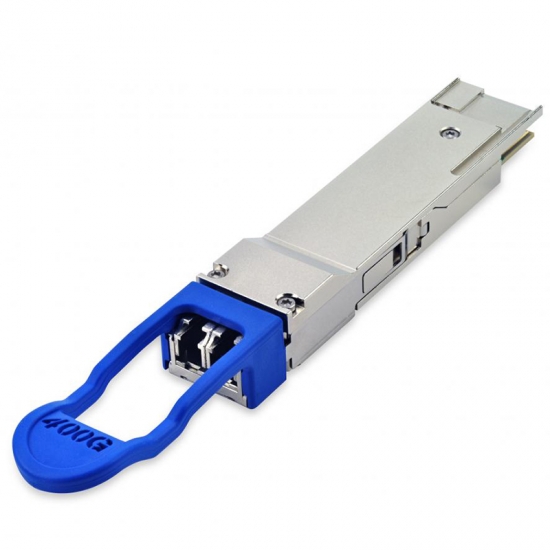

Compatible Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver

item no.:
400G QSFP-DD LR8 2km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
425 Gb/s
Distance:
10 km
Wavelength:
1310nm
Connector:
10 km

contact now

product details

Product Description:

Distance:10 km
Data Rate (max):425 Gb/s
Protocol:400G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:8x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature:

Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <13W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with IEEE 802.bs
8x50G PAM4 DFB-based LAN-WDM transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface
Duplex LC receptacles
I2C management interface
