Optical Transceiver Module
For Cisco
new products

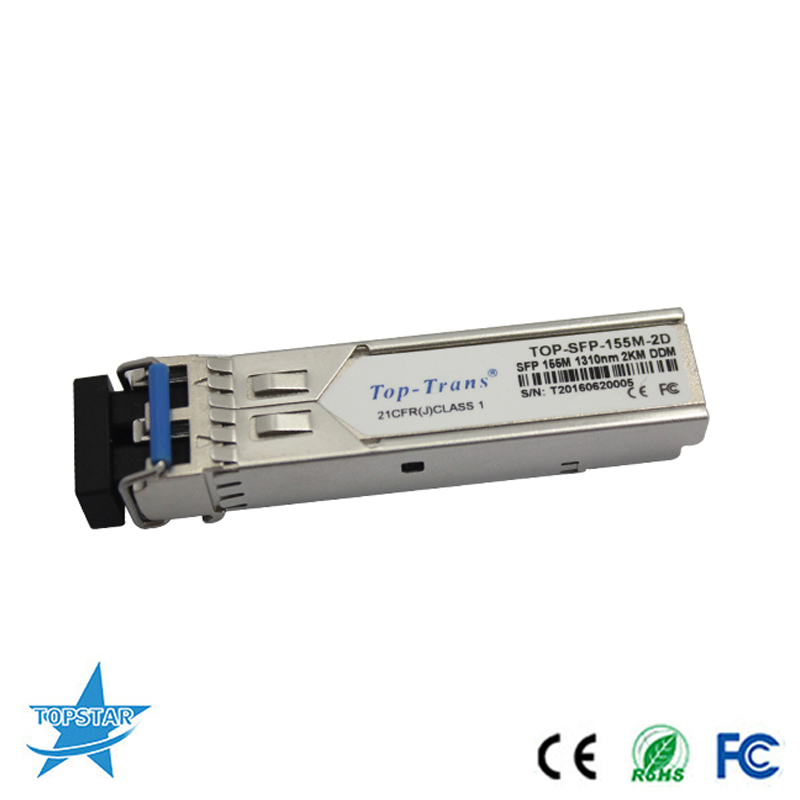

ONS-SI-100-FX Compatible 100BASE-FX SFP 1310nm 2km 10-2350-01 DOM Transceiver Module

ONS 15454 ML-Series Multirate Ethernet Card - 15454-ML-MR-10,Transceiver unit with independent,1310nmFP Laser diode transmitter


  • item no.:

    ONS-SI-100-FX
  • Warranty:

    1 Year
  • Temperature:

    -40 to 85°C
  • Data Rate:

    155M
  • Distance:

    2km
  • Wavelength:

    1310nm
  • Connector:

    LC Duplex
product details

ONS-SI-100-FX Compatible 100BASE-FX SFP 1310nm 2km 10-2350-01 DOM Transceiver Module


Features

  • Transceiver unit with independent
  • 1310nmFP Laser diode transmitter
  • In Ga As PIN photo diode receiver
  • Up to 155Mbps data rate operation
  • Up to 2KMon50/125μmMMF,1KMon62.5/125μm
  • Standard serial ID information compliant with SFPMSA
  • Digital Diagnostic Monitor Interface
  • Very low EMI and excellent ESD protection
  • +3.3V single power supply
  • RoHS compliant
  • Case operating temperature Commercial:0°Cto +70°C Extended:-10°Cto +80°C Industrial:-40°Cto+85°C
