Optical Transceiver Module
home Original Brand Optical Transceiver For Cisco

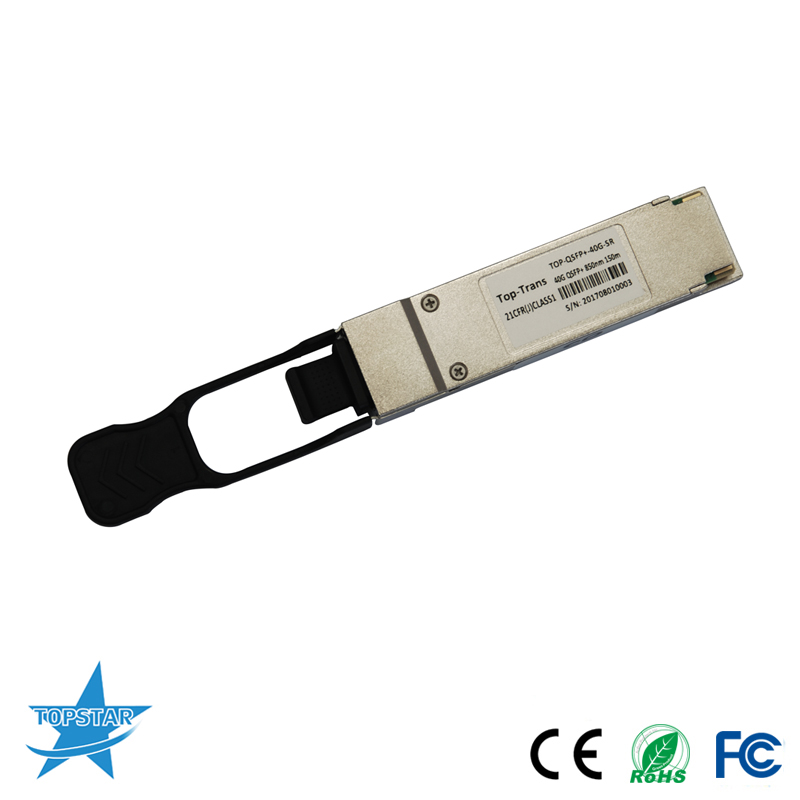

QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m 10-2072-03 Transceiver Module

For Cisco
new products

QSFP-40G-SR4
QSFP-40G-SR4

QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m 10-2072-03 Transceiver Module

The 40G SR4 supports distances compatible with 10GBASE-SR, which is 150m on multi-mode fiber. In addition the SR4 optic can support 4 individual 10G-SR connections using MTP Trunk cable and LC duplex cables for multi-mode fiber.

  • item no.:

    QSFP-40G-SR4

  • brand:

    Top-Trans

  • Warranty:

    1 Year

  • Temperature:

    0 to 70°C

  • Data Rate:

    40G

  • Distance:

    150m

  • Wavelength:

    850nm

  • Connector:

    MTP/MPO
contact now
Datasheet
product details

QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m 10-2072-03 Transceiver Module


Features


  • 4 independent full-duplex channels
  • Up to 11.2Gbps data rate per channel
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 100m  transmission on OM3 multi-mode ribbon fiber
  • CML compatible electrical I/O
  • Single +3.3V power supply
  • Operating case temperature: 0~70C
  • XLPPI  electric interface (with 1.5W Max power)
  • RoHS-6 compliant










tags : 850nm 150m Nexus 3000 N3K-C3264Q QSFP-40G-SR4 40GBASE-SR4 QSFP+ 10-2072-03 6500 C6800-SUP6T
