Optical Transceiver Module
home Original Brand Optical Transceiver For Cisco

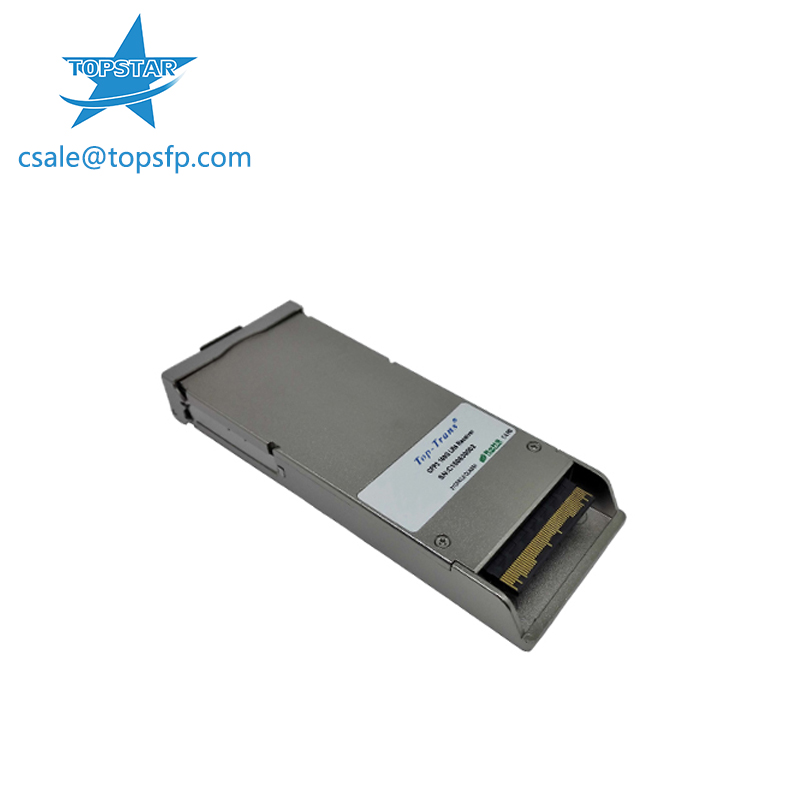

CFP2-100G-LR4 Compatible 100GBASE- LR4 1310nm 10km Transceiver Module

For Cisco
new products

CFP2-100G-LR4
CFP2-100G-LR4

CFP2-100G-LR4 Compatible 100GBASE- LR4 1310nm 10km Transceiver Module

The original switches marked “Unique” below could be found at Topstar, eg: Juniper MX960 & EX 4300 series,Nexus 9396PX & ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

  • item no.:

    CFP2-100G-LR4

  • brand:

    Top-Trans

  • Warranty:

    1 Year

  • Temperature:

    0 to 70°C

  • Data Rate:

    100G

  • Distance:

    10km

  • Wavelength:

    1310nm
contact now
Datasheet
product details

CFP2-100G-LR4 Compatible 100GBASE- LR4 1310nm 10km Transceiver Module


Features

  • Hot Pluggable CFP2 MSA package
  • IEEE 802.3ba 100GBASE-LR4 compliant
  • CFP-MSA-CFP2-HW-Specification compliant
  • Up to 10km for G.652 SMF
  • Receiver: 4 x 25Gb/s PIN ROSA
  • Transmitter: 4 x 25Gb/s WDM TOSA (1295.56,1300.05,1304.58,1309.14nm)
  • 4 x 28G Electrical Serial Interface (CEI-28G-VSR)
  • MDIO management interface with Digital Diagnostic
  • +3.3V power supply
  • Power consumption less than 9W
  • Compact size: 107.5 x 41.5 x 12.4 mm
  • Operating case temperature: 0 to +70 ℃
  • Duplex LC Receptacle
  • ROHs-6 compliant









tags : CFP2-100G-LR4 100GBASE- LR4 1310nm 10km 100G 10km 1310nm -100G-LR4 CFP2 10km
Send Us An Inquiry

We will contact you as soon as possible!

related products
  • CWDM 10G 1270~1610nm 40km Compatible Asa CWDM Fiber 10G 1270~1610nm 40km GBIC Module

    This SFP+ ER CWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

  • CWDM 10G 1470~1610nm 80km Compatible CWDM 10G 1470~1610nm 80km SFP GBIC Ethernet Lan Cards

    This SFP+ ZR CWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

  • QSFP-40G-SR4 QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m 10-2072-03 Transceiver Module

    The 40G SR4 supports distances compatible with 10GBASE-SR, which is 150m on multi-mode fiber. In addition the SR4 optic can support 4 individual 10G-SR connections using MTP Trunk cable and LC duplex cables for multi-mode fiber.

  • CPT-50-44GE Switch ONS-SI-100-FX Compatible 100BASE-FX SFP 1310nm 2km 10-2350-01 DOM Transceiver Module

    ONS 15454 ML-Series Multirate Ethernet Card - 15454-ML-MR-10,Transceiver unit with independent,1310nmFP Laser diode transmitter

  • 10G X2 LR Module Compatible Finisar Juniper 10GBASE X2 1310nm 10km LR Transceiver Module

    The X2 Module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface. An integrated Coder / Decoder and multiplexer / demultiplexer .

  • 10G X2 LRM Transceiver Compatible X2-10GB-LRM Compatible 10GBASE-LRM X2 1310nm 220m DOM Transceiver

    The X2  10GBASE-LRM 1310nm 220M Module is a highly integrated, Serial optical transponder module for 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface. An integrated Coder / Decoder and multiplexer / demultiplexer .

  • 10G X2 SR Compatible X2-10GB-SR Compatible 10GBASE-SR X2 850nm 300m DOM Transceiver Module

    The 10GBASE-SR 850nm X2 Module is a highly integrated, Serial optical transponder module for 10Gbit/s data transmission applications.

  • ONS 15454 ML-SerIE2000 Series-IEs Multirate Ethernet Card- ML100-X-8 ONS-SE-100-FX Compatible 100BASE-FX SFP 1310nm 2km 10-2212-01 DOM Transceiver Module

    ONS 15454 ML-SerIE2000 Series-IEs Multirate Ethernet Card- ML100-X-8, Transceiver unit with independent,1310nmFP Laser diode transmitter
