Compatible X2-10GB-LRM Compatible 10GBASE-LRM X2 1310nm 220m DOM Transceiver

The X2  10GBASE-LRM 1310nm 220M Module is a highly integrated, Serial optical transponder module for 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface. An integrated Coder / Decoder and multiplexer / demultiplexer .

  • item no.:

    TOP-X2-10G-LRM
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Brand new
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10GB
  • Distance:

    220M
  • Wavelength:

    1310nm
  • Connector:

    SC
product details

 X2-10GB-LRM Compatible 10GBASE-LRM X2 1310nm 220m DOM Transceiver

The 10G X2 10GBASR-LRM 220M Transceiver is compatible with equipments for 5G wireless network solution.


Features
Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
Transmission Distance up to 220m(MMF)
SC Receptacle 1310nm DFB Laser
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply :+3.3V, APS(+1.2V)
Diagnostic Optics Monitoring
Temperature Range: 0~70 °C
ROHS Compatible

Applications
10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Other 10Gbps Ethernet Transmission System

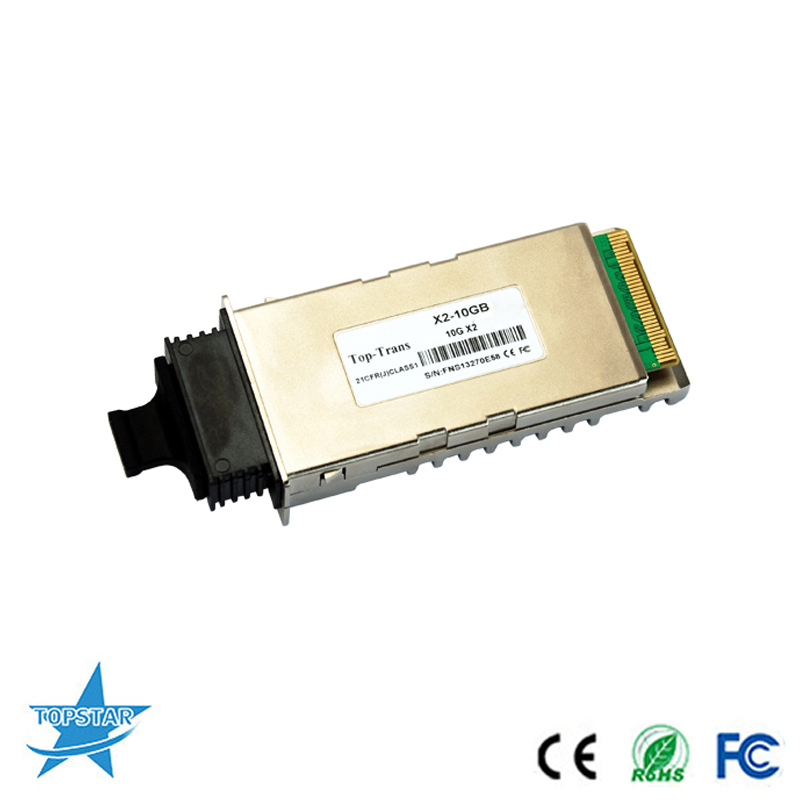

10G X2

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

SFP transceiver



OEM& ODM

Customized label and package , OEM and ODM service offered

fiber transceiver manufacturer


Send Us An Inquiry

We will contact you as soon as possible!
