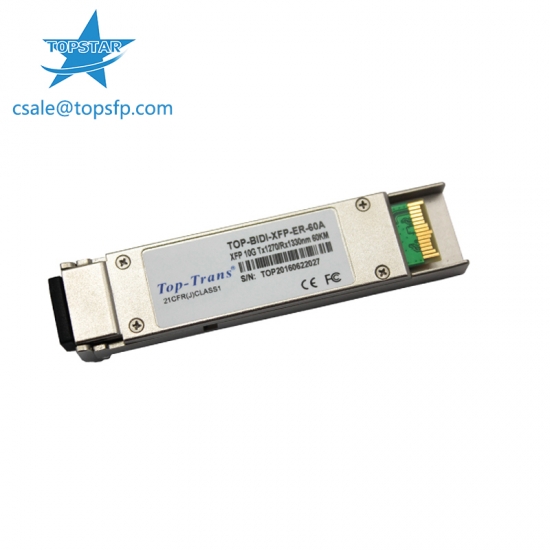

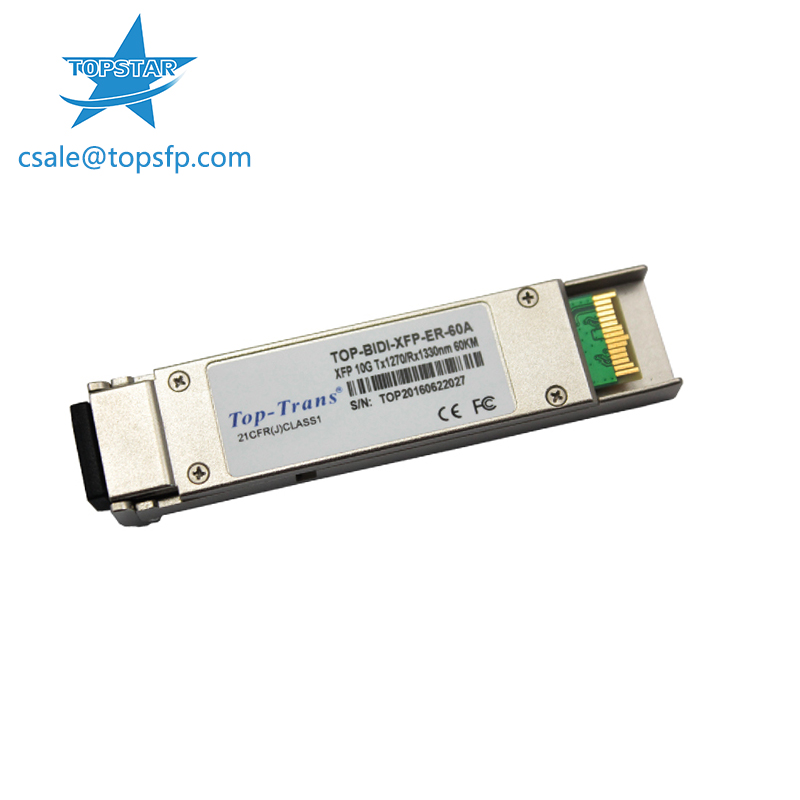

XFP-10G-BX60U-I Compatible 10GBASE-BX XFP 1270nm-TX/1330nm-RX 60km DOM Transceiver Module

For Cisco
new products

XFP-10G-BX60U-I
XFP-10G-BX60U-I

XFP-10G-BX60U-I Compatible 10GBASE-BX XFP 1270nm-TX/1330nm-RX 60km DOM Transceiver Module

XFP-10G-BX60U-I Compatible 10GBASE-BX XFP 1270nm-TX/1330nm-RX 60km DOM Transceiver Module applications 10GBASE-BX10.3125Gb/s Ethernet, 10GBASE-BX9.953Gb/s Ethernet, SONETOC-192 &SDH STM I-64.1

  • item no.:

    XFP-10G-BX60U-

  • Warranty:

    1 Year

  • Temperature:

    0 to 70°C

  • Data Rate:

    10G

  • Distance:

    60km

  • Wavelength:

    1270nm-TX/1330nm-RX

  • Connector:

    LC simplex
contact now
Datasheet
product details

 XFP-10G-BX60U-I Compatible 10GBASE-BX XFP 1270nm-TX/1330nm-RX 60km DOM Transceiver Module


Features


  • Hot pluggable
  • Support 9.95Gb/sto11.1Gb/s bit rates
  • Below <1.8w power consumption
  • XFPMSA package with LC connector
  • Digital Diagnostic Monitor Interface
  • Very low EMI and excellent ESD protection
  • Un-cooled 1270nmDFB laser and APD receiver
  • +3.3V single power supply
  • operating temperature range 0°C to70°C
  • No reference clock requirement







tags : XFP-10G-BIDI XFP 1270nm-TX XFP-1330nm-RX 10G BIDI XFP BIDI 60km BIDI 60km
