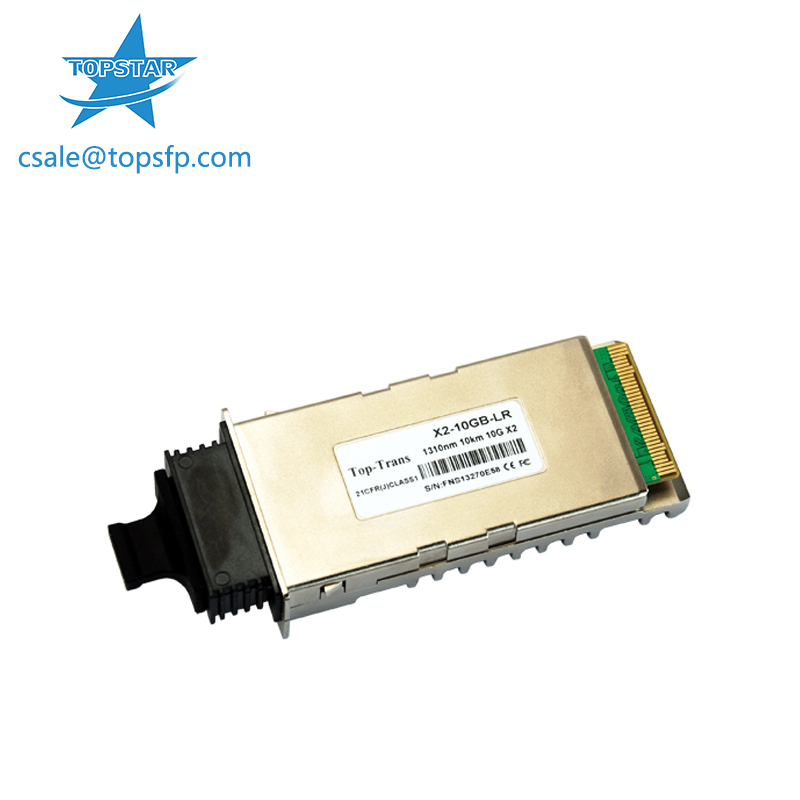

X2-10GB-LR Compatible 10GBASE-LR X2 1310nm 10km DOM 10-2036-05 Transceiver Module

X2-10GB-LR is supported on a wide range of equipment. Such as 7600 WS-X6708-10G-3C, 4900 ME-4924-10GE, WS-X4908-10GE, 3100 WS-CBS3130X-S, etc.,

Compatible with X2 MSA Rev2.0b,.Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps,Transmission Distance up to 10Km(SMF),SC Receptacle 1310nm DFB Laser,SC Duplex Optical Connector,Hot Pluggable 70-PIN Connector with XAUI Electrical Interface,Management and control via MDIO 2-wire interface,Power Supply :+3.3V, APS(+1.2V),Diagnostic Optics Monitoring,Temperature Range: 0~ 70 °C,ROHS Compatible


  • item no.:

    X2-10GB-LR
  • Warranty:

    1 Year
  • Temperature:

    0 to 70°C
  • Data Rate:

    10G
  • Distance:

    10Km
  • Wavelength:

    1310nm
  • Connector:

    SC duplex
product details

X2-10GB-LR Compatible 10GBASE-LR X2 1310nm 10km DOM 10-2036-05 Transceiver Module


Features

  • Compatible with X2 MSA Rev2.0b
  • Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
  • Transmission Distance up to 10Km(SMF)
  • SC Receptacle 1310nm DFB Laser
  • SC Duplex Optical Connector
  • Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
  • Management and control via MDIO 2-wire interface
  • Power Supply :+3.3V, APS(+1.2V)
  • Diagnostic Optics Monitoring
  • Temperature Range: 0~ 70 °C
  • ROHS Compatible
