Top-trans DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.
item no.:
TOP-DWDM-XX-2.5-120lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
EXWprice range:
1-6/258$Warranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
2.5GDistance:
120kmWavelength:
DWDMConnector:
Dual LC

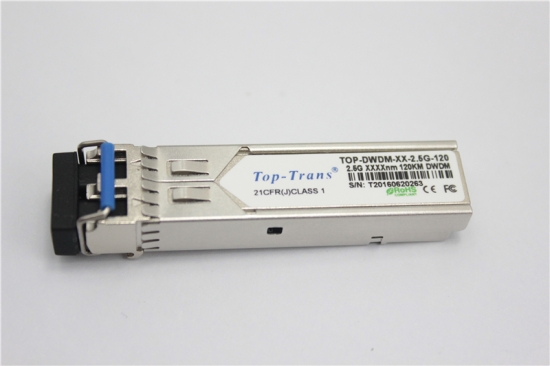

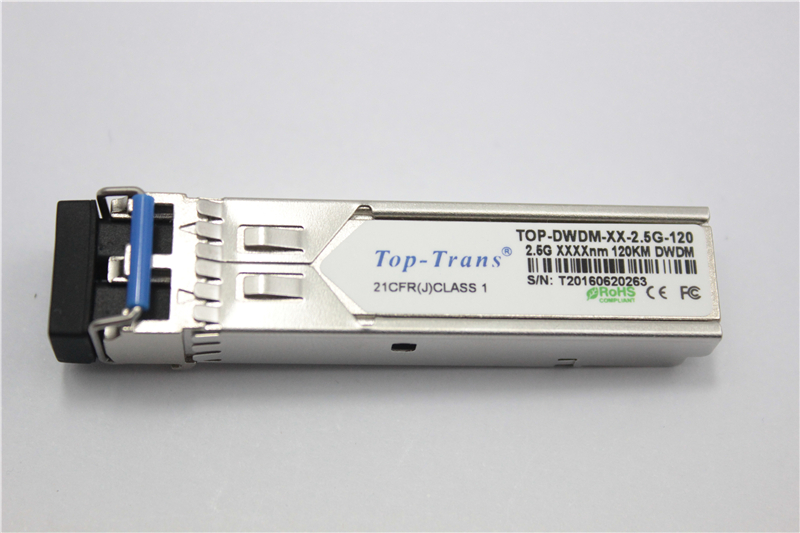

SFP 2.5g Optic Transceiver C/L-Band ITU 120km DWDM SDH Fiber Patch Cord
Features
Wavelength selectable to C-band and L-band ITU-T grid wavelengths
Suitable for use in 100GHz channel spacing DWDM systems
DWDM SFP MSA Compliant
Up to 2. 667Gb/s data rate
Cold Start up Wavelength Compliance
Low Power Dissipation <1.3W Maximum
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current
Extended link budget with APD receiver technology
OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
RoHS compliant and lead free
Applications
SFP Transceivers for DWDM SONET/ SDH
Ethernet IEEE 802.3ae
Fiber Channel
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
prev :
Pluggable Transceiver 25G DWDM SFP+ 80KM optical switch ethernet modulenext :
Compatible Optics 2.5G SFP Transceiver C/L-Band ITU System 80KM DWDM Fiber
10G DWDM SFP ITU Grid 1170-1610nm 40km Telecom Equipment
This SFP+ ER DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Compatible WTD SFP Transceiver 10G ITU Grid 1170-1610nm Switch DWDM 80km 15xx.xxnm
This SFP+ ZR DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
SFP DWDM 10gb Optial Module Tunable 40km Huawei Modem
Top-Trans 50GHz Full C-band Tunable SFP+ transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 40km of G.652 fiber. The SFP+ module supports 10GBASE-ER and –EW applications for Ethernet Switches, IP Routers or SONET/SDH optical interfaces. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.
SFP+ Optical DWDM Manufacturer 10gb tunable 80km Cisco 2690 switch
Top-Trans 50GHz Full C-band Tunable SFP+ transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber. The SFP+ module supports 10GBASE-ZR and –ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2 applications for Ethernet Switches, IP Routers or SONET/SDH optical interfaces. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.
Arista Compatible 10GBASE-DWDM XFP 80km Network Transceiver Module
The transceiver module comprises a transmitter with 100GHz C Band 1528.77~1563.05nm DWDM Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 8.0~11.1Gbps, and transmission distance up to 80km on SMF.
Compatible 10G DWDM XFP 40km CH17-61 DDM Optical Transceiver Module
The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 8.0~11.1Gbps, and transmission distance up to 40km on SMF. The transceiver module comprises a transmitter with 100GHz C Band 1528.77~1563.05nm DWDM Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
10G Gigabit Ethernet Tunable DWDM XFP 40km Compatible Juniper Fibre Channel Transceiver Module
The 10G XFP DWDM 40KM Transceiver Module is for ITU Frequency Grid Applications（SFF-8477）and provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i). It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, and DWDM 10GFC for 40 km reach (Fiber Channel) applications.
Cisco DWDM-XFP-C Compatible 10Gb/s Tunable DWDM XFP 80km Optical Transceiver Module
The Topstar tunable 10 Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications（SFF-8477）It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel) applications.
