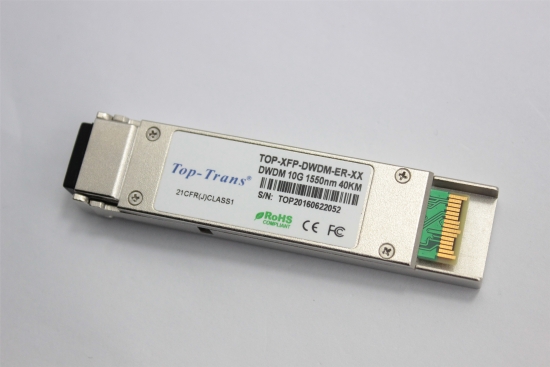

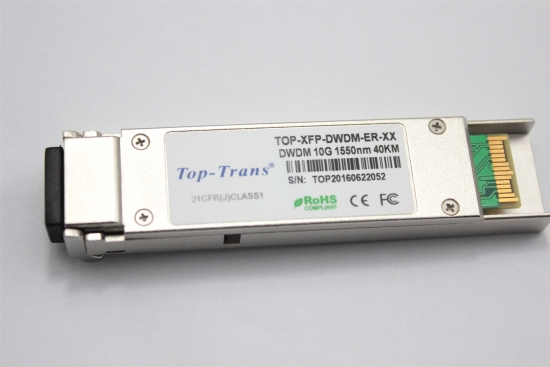

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 8.0~11.1Gbps, and transmission distance up to 40km on SMF. The transceiver module comprises a transmitter with 100GHz C Band 1528.77~1563.05nm DWDM Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
item no.:
TOP-XFP-DWDM-ER-XXlead time:
4-5working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wWarranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
40kmWavelength:
1528.77~1563.05nmConnector:
LCCompatible 10G DWDM XFP 40km CH17-61 DDM Optical Transceiver Module
10GBASE-ER/OC-192 IR-2 Multirate 40km XFP Optical Transceiver compatible Finisar FTLX1612M3BCL
Product Features
Supports 8.0Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint, Built-in digital diagnos
Maximum link length of 40km with SMF
100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode
XFP MSA package with duplex LC connector
No reference clock required
Single +3.3V power supply
Power dissipation <3.5W
Compatible with RoHS
Temperature range：0 to +70°C
Applications
10G DWDM Networks
SONET OC-192&SDH STM-64 at 9.953Gbps
10G Ethernet Applications
10G Fiber Channel Applications
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links, up to 11.1Gbps
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered
