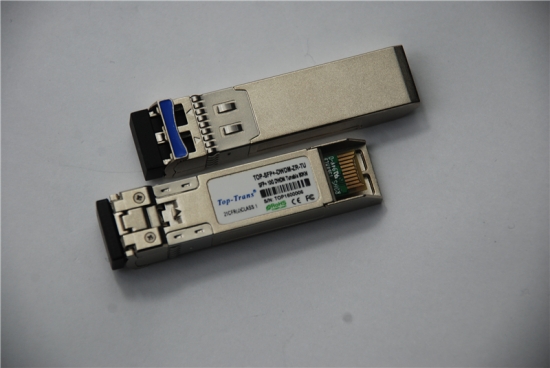

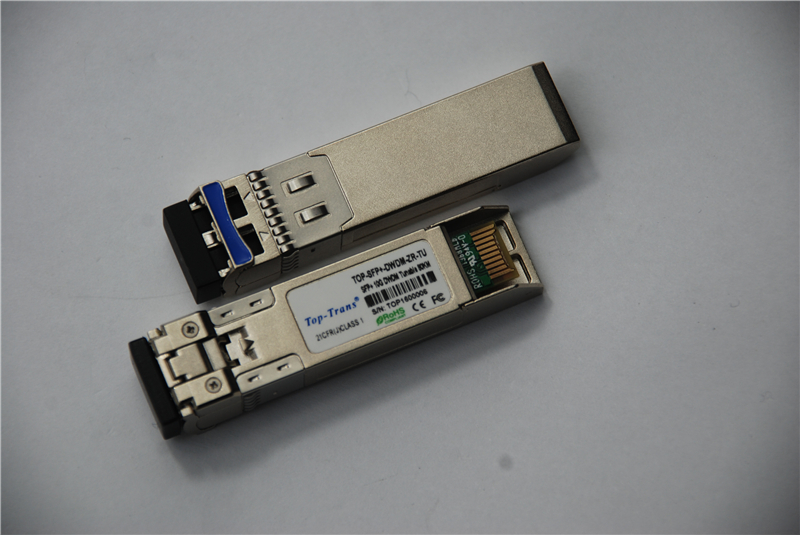

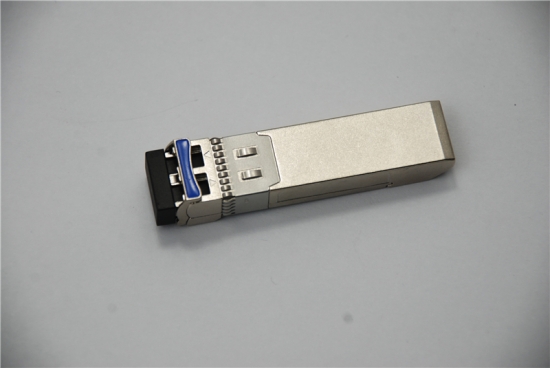

SFP+ Optical DWDM Manufacturer 10gb tunable 80km Cisco 2690 switch

Top-Trans 50GHz Full C-band Tunable SFP+ transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber. The SFP+ module supports 10GBASE-ZR and –ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2 applications for Ethernet Switches, IP Routers or SONET/SDH optical interfaces. Digital Optical Monitoring interfaces are provided via the SFP+ standards compliant I2C interface.

  • item no.:

    TOP-SFP+-DWDM-ZR-Tu
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    80km
  • Wavelength:

    Tunable
product details

SFP+ Optical DWDM Manufacturer 10gb tunable 80km Cisco 2690 switch

SFP+ Optical DWDM Manufacturer 10gb tunable 80km


Features

Hot-pluggable SFP+ footprint

50GHz DWDM ITU-T Full C-band Tunability

Support 9.95Gb/s to 11.3Gb/s bit rates

80km 50GHz DWDM laser

80km APD photodiode receiver

Single 3.3V power supply

Power dissipation <1.7W

-5°C to +70°C

Duplex LC fiber connectors

10GBASE-ZR/ZW

SDH STM-64ITU-T G.959.1 P1L1-2D2

Full Digital Optical Monitoring

Metal enclosure for lower EMI

Complies with RoHS directive (2002/95/EC)

Compliant with SFP+ Electrical MSA SFF-8431

Compliant with SFP+ Mechanical MSA SFF-8432

Laser Class 1 IEC/CDRH compliant


Applications

Full C-band Tunable10GBASE-ZR 10GEthernet

8GB/10GB Fibre Channel

SONET OC-192 LR-2

SDH STM-64ITU-T G.959.1 P1L1-2D2

Access DWDM Ethernet Switch or IP Router Interconnect


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.





OEM& ODM:

Customized label and package , OEM and ODM service offered
