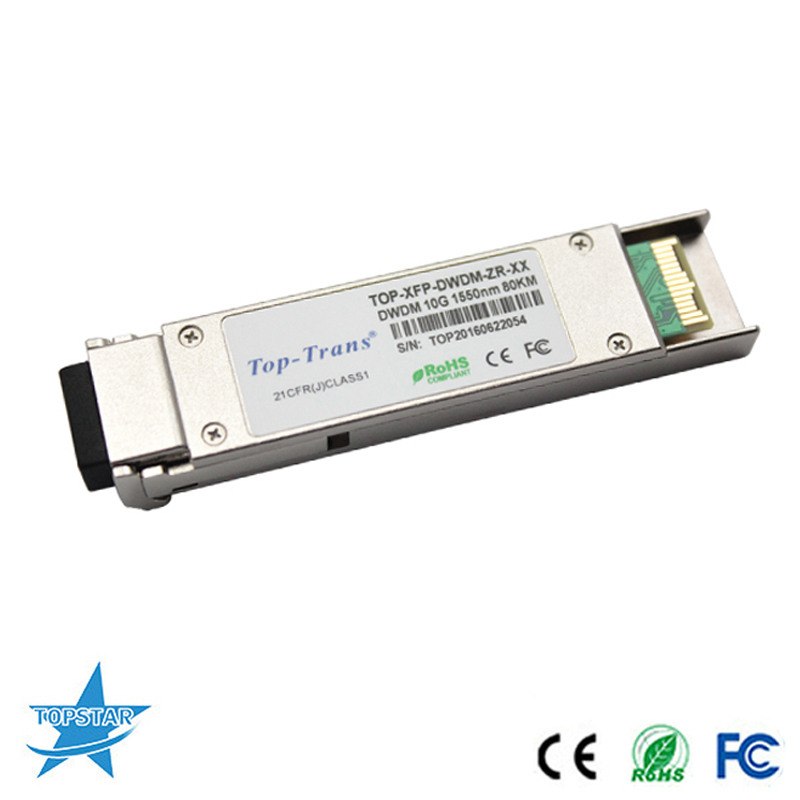

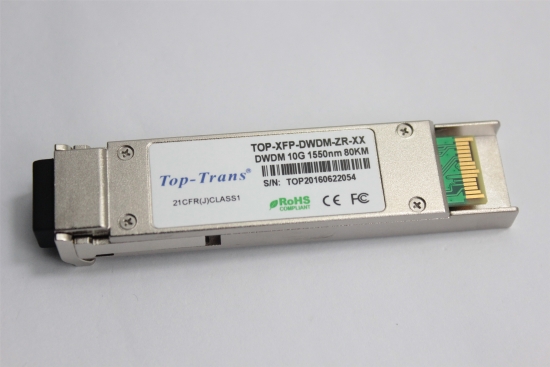

item no.:
TOP-XFP-DWDM-ZR-XXlead time:
4-5working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wWarranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
80kmWavelength:
1528.77~1563.05nmConnector:
LCArista Compatible 10GBASE-DWDM XFP 80km Network Transceiver Module
10G DWDM XFP EX-XFP-10GE-ZR optical module for SDH STM-64 Network equipment
Product Features
Supports 8.0Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint, Built-in digital diagnos
Maximum link length of 80km with SMF
100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode
XFP MSA package with duplex LC connector
No reference clock required
Single +3.3V power supply
Power dissipation <3.5W
Compatible with RoHS
Temperature range：0 to +70°C
Applications
10G DWDM Networks
SONET OC-192&SDH STM-64 at 9.953Gbps
10G Ethernet Applications
10G Fiber Channel Applications
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links, up to 11.1Gbps
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered
