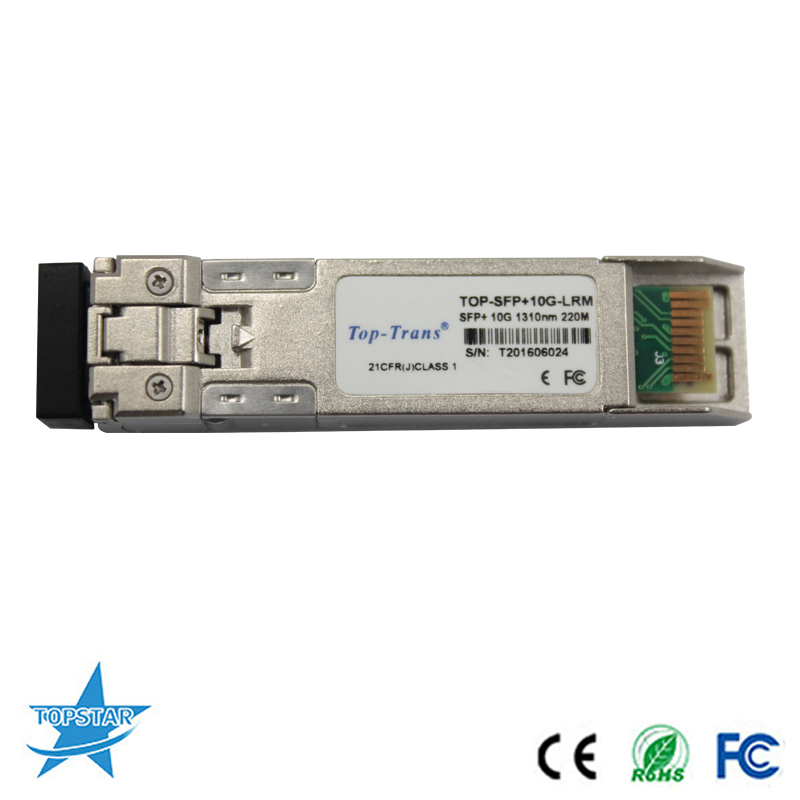

Compatible SFP-10G-LRM 10-2456-03 10G SFP+ 1310nm 220m DOM Transceiver Module for Switch N9K-C9396PX

SFP-10G-LRM can be used on original Switch N9K-C9396PX; The 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3 or OM4

  • item no.:

    SFP-10G-LRM
  • lead time:

    2-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • price range:

    1-10/30$
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    220m
  • Wavelength:

    1310nm
  • Connector:

    LC
product details

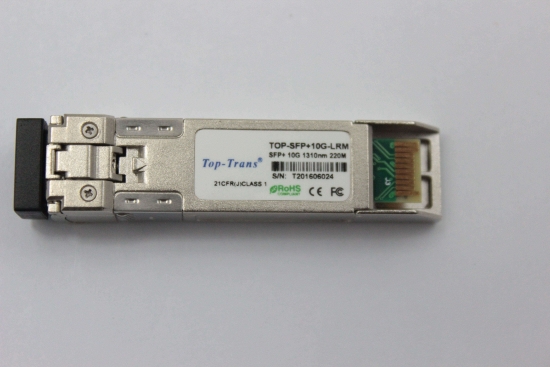

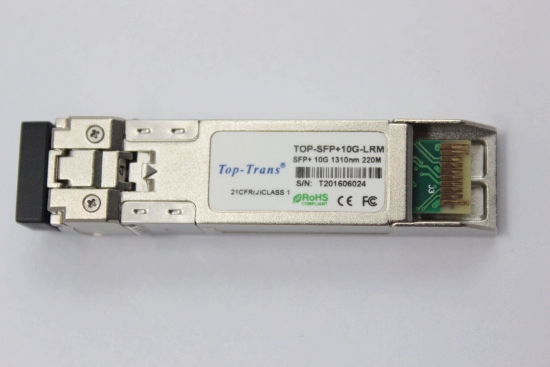

SFP-10G-LRM 10-2456-03 10G SFP+ 1310nm 220m DOM Transceiver Module for Switch N9K-C9396PX


Nexus 9300 Series ( Uplink Module : N9K-M12PQ )




PRODUCT FEATURES

Supports 10GBASE Ethernet and OTU2/OTU2e
Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a  switch
Provides flexibility of interface choice
Supports “pay-as-you-populate” model
Supports digital optical monitoring capability
Supports the  quality identification (ID) feature that enables a switch to identify whether the module is certified and tested



APPLICATIONS

10GBASE-SR/SW Ethernet

SONETOC-192/SDHSTM-64

Other optical links


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.



OEM& ODM:

Customized label and package , OEM and ODM service offered
