Compatible SFP 1.25G 1310NM 20KM 1000BASE-LX/LH SFP For Switch

SFP 1.25G 1310nm 20KM SFP is designed for GE/1 x FC optical interface for data communications with multi mode fiber (MMF). It operates at 1.25Gbps for GE. Compatible Cisco 1.25G 20KM SFP design is optimized for high performance and cost effective to supply customers the best solutions for datacom applications.

item no.:
TOP-SFP-1.25G-20D
lead time:
2-5 Working Days After Payment Received
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Compatible
Temperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Data Rate:
1.25 G
Distance:
20 km
Wavelength:
1310 nm
Connector:
Dual LC

contact now

Datasheet

product details

Compatible SFP 1.25G 1310NM 20KM 1000BASE-LX/LH SFP For Switch

1000BASE-LX/LH SFP for Switch is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Product Features

Transceiver unit with independent

FP laser transmitter and PIN photo-detector

Dual Data-rate of 1.25Gbps/1.0625Gbps Operation

Up to 20KM transmission distance on 9/125μm SMF

Standard serial ID information compliant with SFP MSA

SFP MSA package with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

Wide operating temperature range

RoHS compliant

Case operating temperature:Commercial: 0°C to +70°C, Extended: -10°C to +80°C, Industrial: -40°C to +85°C

Applications

Switch/Router

SAN/Server

Other optical transmission systems

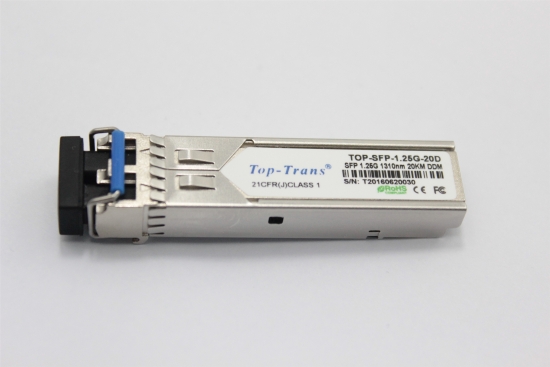

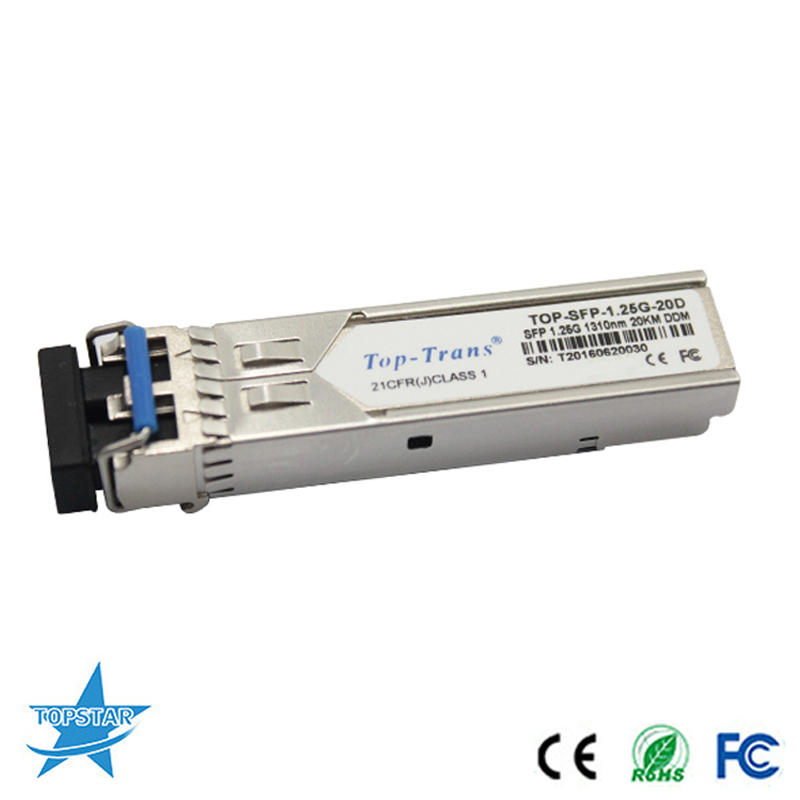

Below is the picture of Compatible SFP 1.25G 1310NM 20KM

Compatible SFP 1.25 G 1310NM 20KM

Professional Service

Compatible SFP 1.25G 1310NM 20KM are fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.

OEM& ODM

Customized label and package. Both OEM and ODM service are offered.
