Compatible SFP-155-MM 155 Mbps SFP Module 155M 550M

155 Mbps SFP <2KM 850nm optical transceivers are designed for optical interfaces for data communications with multimode fiber (MMF).The transceiver designs are optimized for high performance and cost effective to supply customers with the best solutions for telecom applications. It is Compatible SFP-155-MM.

item no.:
TOP-SFP-155M-MMD
lead time:
1-3 Working Days After Payment Received
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Compatible
Temperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Data Rate:
155M
Distance:
550M
Wavelength:
850 nm
Connector:
Dual LC

contact now

Datasheet

product details

Compatible sfp-155-MM 155 Mbps SFP Module 155M 550M

Compatible SFP-155-MM is tested to ensure the compatibility with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Product Features

Transceiver unit with independent
850nm FP Laser diode transmitter
In Ga As PIN photodiode receiver
Up to 155 Mbps data rate operation
Up to <2KM on 50/125μm MMF, 1KM on 62.5/125μm
Standard serial ID information compliant with SFP MSA
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature:

Commercial: 0°C to+70°C

Extended: -10°C to+80°C

Industrial: -40°C to+85°C

Applications

Switch/Router

SAN/Server

Other optical transmission systems

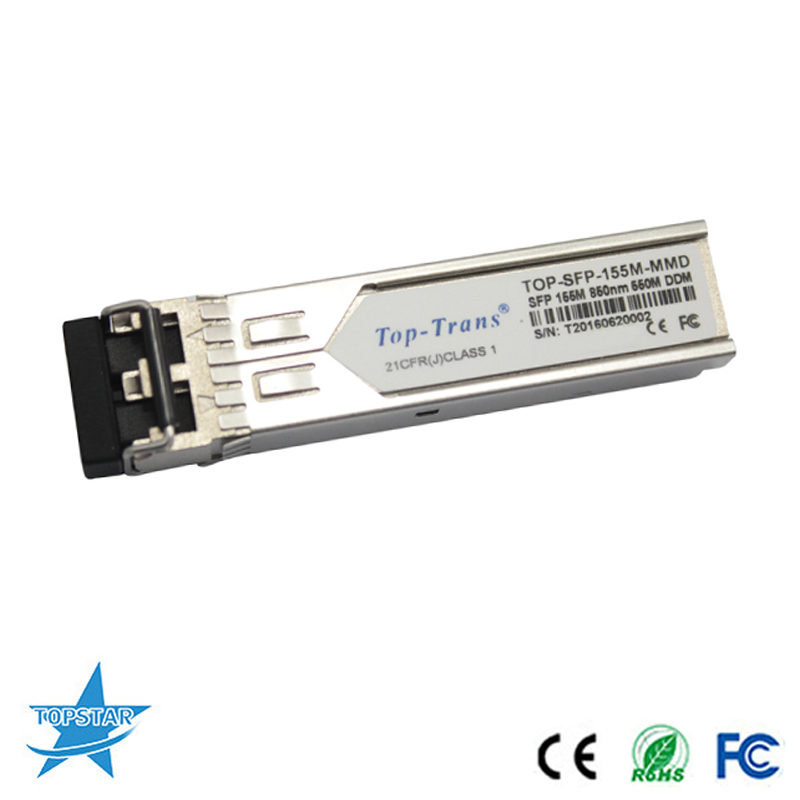

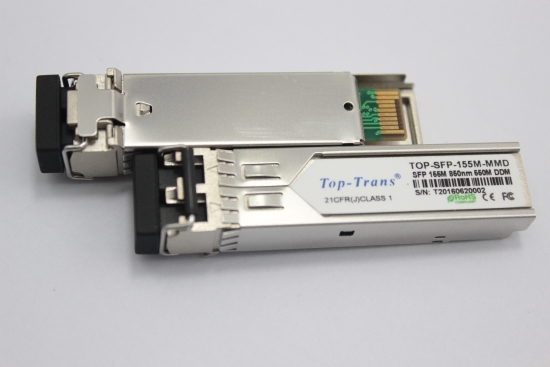

The picture of SFP Module 155M 550M is shown below.

Compatible SFP-155-MM

Professional Service

The Compatible SFP-155-MM is Fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

SFP Module 155M 550M
