Optical Transceiver Module
1G SFP
new products

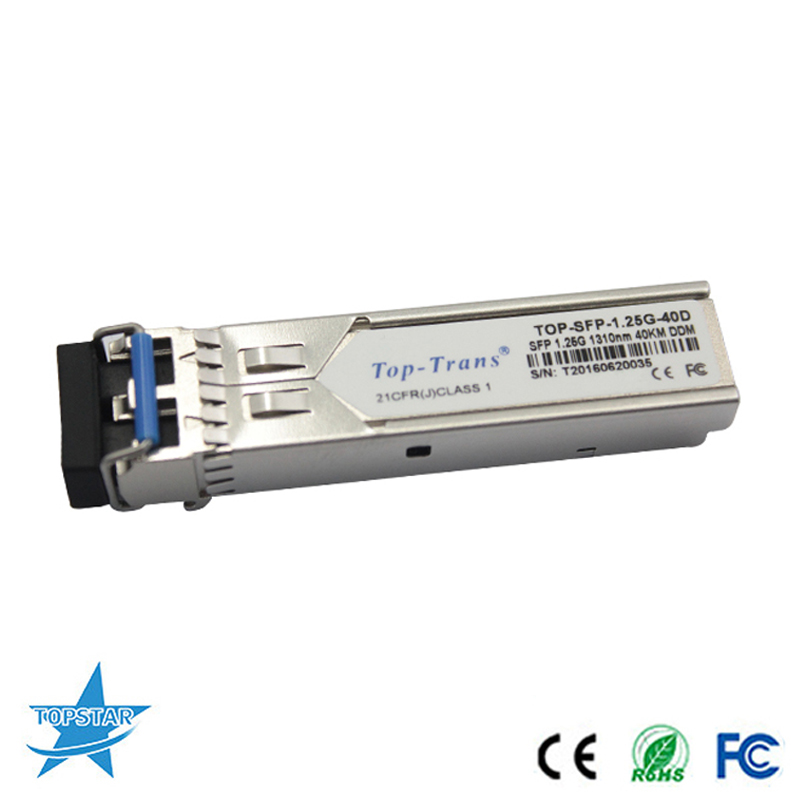

Compatible GLC-EX-SMD Single Mode 1310nm 1000Base-EX SFP Transceiver

1000Base-EX SFP optical transceivers are designed for GE/1 x FC optical interface for data communications with single mode fiber (SMF), and multimode fiber (MMF) as well. Compatible SFP GLC-EX-SMD operate at both 1.25Gbps for GE and 1.0625Gbps for 1xFC. The Transceiver Single mode transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom applications.

  • item no.:

    TOP-SFP-1.25G-40D
  • lead time:

    2-5 Working Days After Payment Received
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Compatible
  • Temperature:

    0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
  • Data Rate:

    1.25 G
  • Distance:

    40 km
  • Wavelength:

    1310 nm
  • Connector:

    Dual LC
product details

Compatible Cisco GLC-EX-SMD Single Mode 1310nm 1000Base-EX SFP Transceiver

1000Base-EX SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.


Product Features

Transceiver unit with independent

DFB laser transmitter and PIN photo-detector

Dual Data-rate of 1.25Gbps/1.0625Gbps Operation

Up to 40KM transmission distance on 9/125μm SMF

Standard serial ID information  compliant with SFP MSA

SFP MSA package with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

Wide operating temperature range

RoHS compliant

Case operating temperature:Commercial: 0°C to +70°C,Extended: -10°C to +80°C, Industrial: -40°C to +85°C



Applications

Switch/Router

SAN/Server

Other optical transmission systems

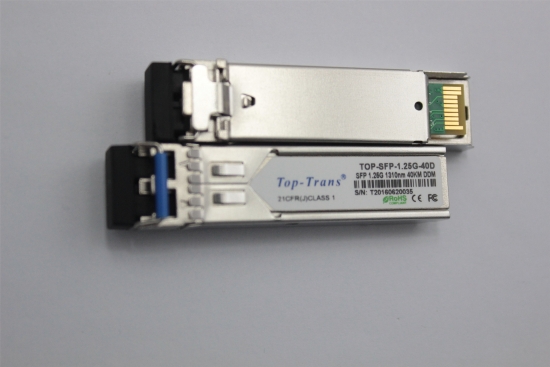

Below is the picture of Compatible SFP GLC-EX-SMD

Compatible SFP glc-ex-smd


Professional Service

Compatible Cisco Transceiver Single mode is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.





OEM& ODM

Customized label and package. Both OEM and ODM service are offered.

Send Us An Inquiry

We will contact you as soon as possible!
