Optical Transceiver Module
1G SFP
new products

100Base FX SFP 1310 2KM for Megabit Ethernet

100Base FX SFP optical transceivers are designed for optical interfaces for data communications with multimode fiber(MMF). SFP 1310 2km for Megabit Ethernet(Compatible SFP 1310 2km) designs are optimized for high performance and cost effective to supply customers with the best solutions for telecom applications.

  • item no.:

    Top-sfp-155M-2D
  • lead time:

    1-3 Working Days After Payment Received
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • price range:

    1-2/8$
  • Warranty:

    3 Years
  • Condition:

    Compatible
  • Temperature:

    0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
  • Data Rate:

    155 M
  • Distance:

    2 km
  • Wavelength:

    1310 nm
  • Connector:

    Dual LC
product details

Compatible SFP-155 m-2 km SFP 1310 2km for Megabit Ethernet

The Compatible SFP 1310 2km is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.


Specifications

Transceiver unit with independent
1310nm FP Laser diode transmitter
In Ga As PIN photodiode receiver
Up to 155Mbps data rate operation
Up to 2K Mon50/125μm MMF,1KMon 62.5/125 μm
Standard serial ID information compliant with SFP MSA
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature
           Commercial: 0°C to +70°C
         Extended: -10°C to +80°C
         Industrial: -40°C to +85°C

Applications
Switch/Router

SAN/Server

Other optical transmission systems

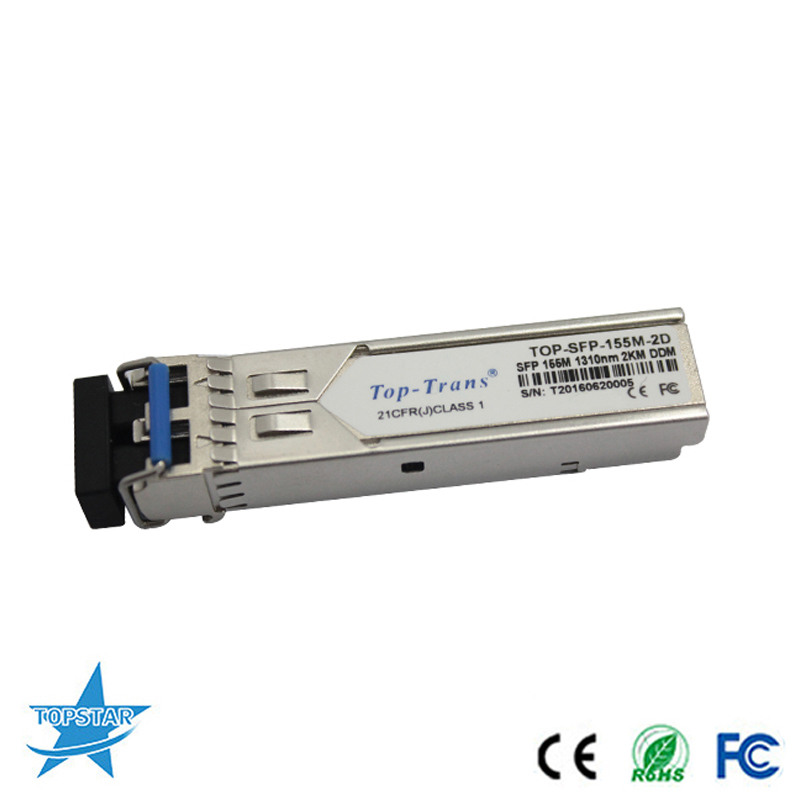

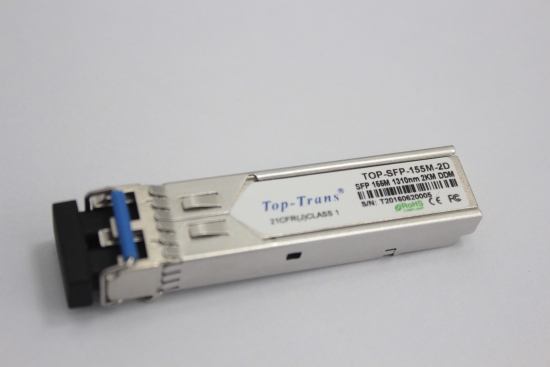

Below lies the picture of  100Base FX SFP

 100Base FX SFP


Professional Service

SFP 1310 2km for Megabit Ethernet is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.Optical Module Manufacturer




OEM& ODM

Customized label and package, both OEM and ODM service are offered.
