1000BASE-LX/LH SFP 1310nm 20km DOM Transceiver Module Small Form-factor Pluggable

SFP 1.25G 20KM 1310nm optical transceivers(1000BASE-LX/LH SFP) are designed for GE/1 x FC optical interface for data communications with single mode fiber (SMF), and multimode fiber (MMF) as well. 1310nm 2km DOM Transceiver operates at both 1.25Gbps for GE and 1.0625Gbps for 1xFC. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom applications.

item no.:
TOP-SFP-1.25G-20D
lead time:
2-7 Working Days After Payment Received
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Compatible
Temperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Data Rate:
1.25 G
Distance:
20km
Wavelength:
1310 nm
Connector:
Dual LC

contact now

Datasheet

product details

1000BASE-LX/LH SFP 1310nm 20km DOM Transceiver Module Small Form-factor Pluggable

1000BASE-LX/LH SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Product Features

Transceiver unit with independent

FP laser transmitter and PIN photo-detector

Dual Data-rate of 1.25Gbps/1.0625Gbps Operation

Up to 20KM transmission distance on 9/125μm SMF

Standard serial ID information compliant with SFP MSA

SFP MSA package with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

Wide operating temperature range

RoHS compliant

Case operating temperature :Commercial: 0°C to +70°C ,Extended: -10°C to +80°C ,Industrial: -40°C to +85°C

Applications

Switch/Router

SAN/Server

Other optical transmission systems

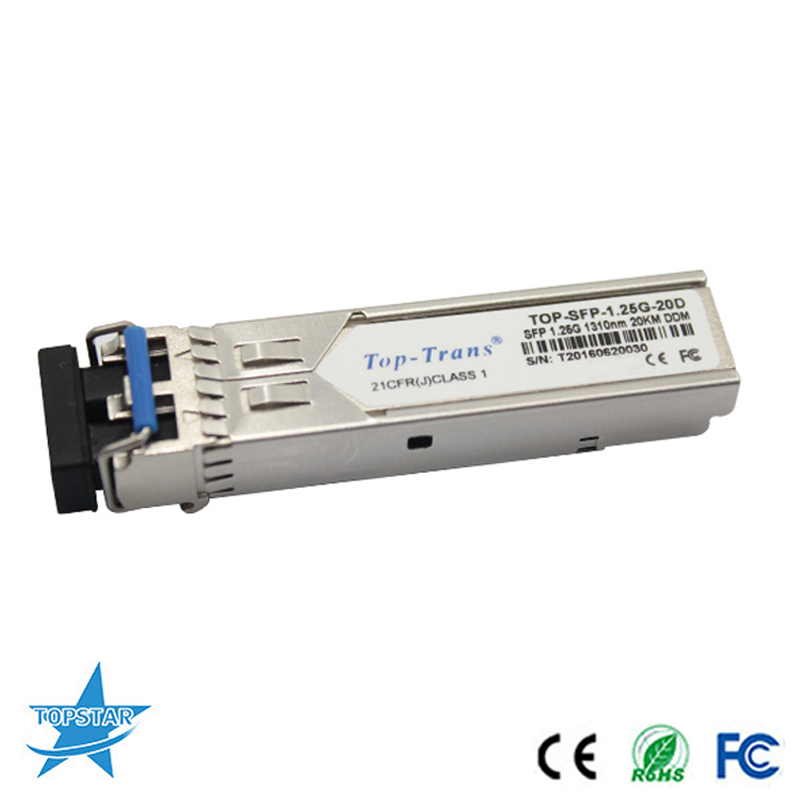

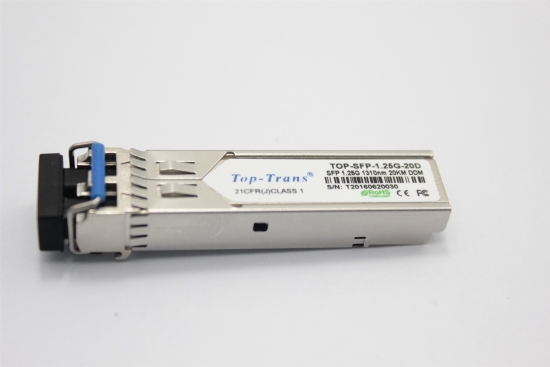

Below is the picture of 1.25G 1310nm 20km DOM Transceiver

Professional Service

This small form-factor pluggable isfully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
