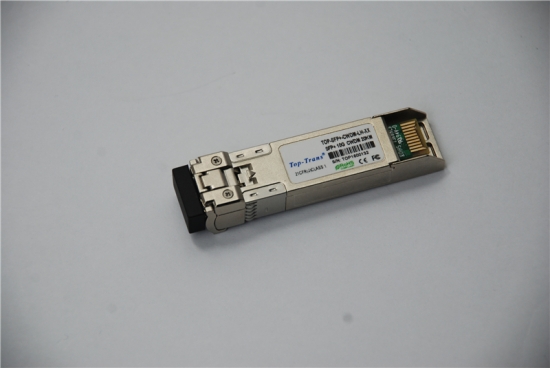

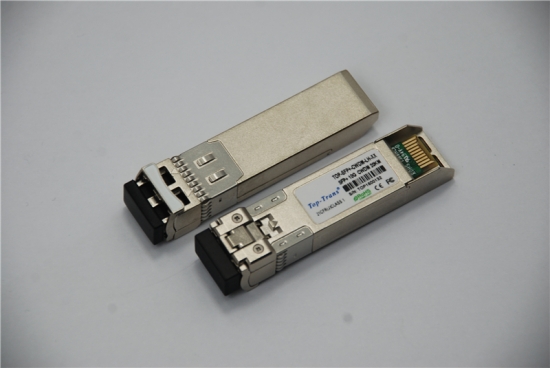

SFP CWDM 10G 1350~1450nm 20km Coarse Wavelength Division Multiplexing


This CWDM DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 20km. The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.


  • item no.:

    TOP-SFP+-CWDM-LH-XX
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • price range:

    1-6/105$
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    20km
  • Wavelength:

    CWDM
product details

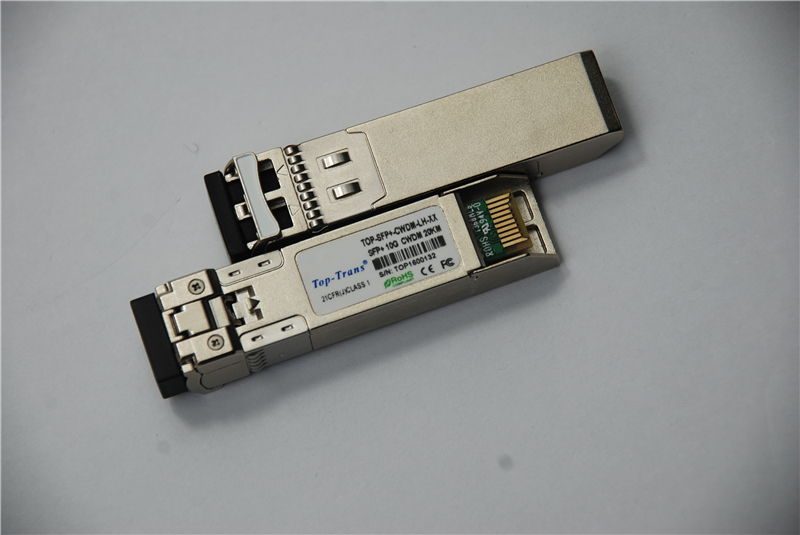

SFP CWDM 10G 1350~1450nm 20km Coarse Wavelength Division Multiplexing

SFP CWDM 10G 1350~1450nm 20km


PRODUCT FEATURES

Optical interface compliant to IEEE 802.3ae 10GBASE-LR

4-Wavelengths CWDM DFB transmitter from

Hot pluggable

1270nm to 1330nm, PIN photo-detector

Applicable for 10km SMF connection

Low power consumption

All-metal housing for superior EMI performance Operating case temperature: 0 to 70 °C



APPLICATIONS

10GBASE-LR at 10.3125Gbps

Other optical links

10G Ethernet



Quality Guarantee:

Top-trans SFP passed quality system verifications: CE, RoHS, FCC.


Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


Warranty:

If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


Payment Terms:
1. Payment: T/T, Western Union, MoneyGram,HSBC, as well as Cash Payment

2. MOQ: 1pcs

3. Warranty : 1 year

4. Package Informations: According to quantity ,we can provide professional package, 10/20/36 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
