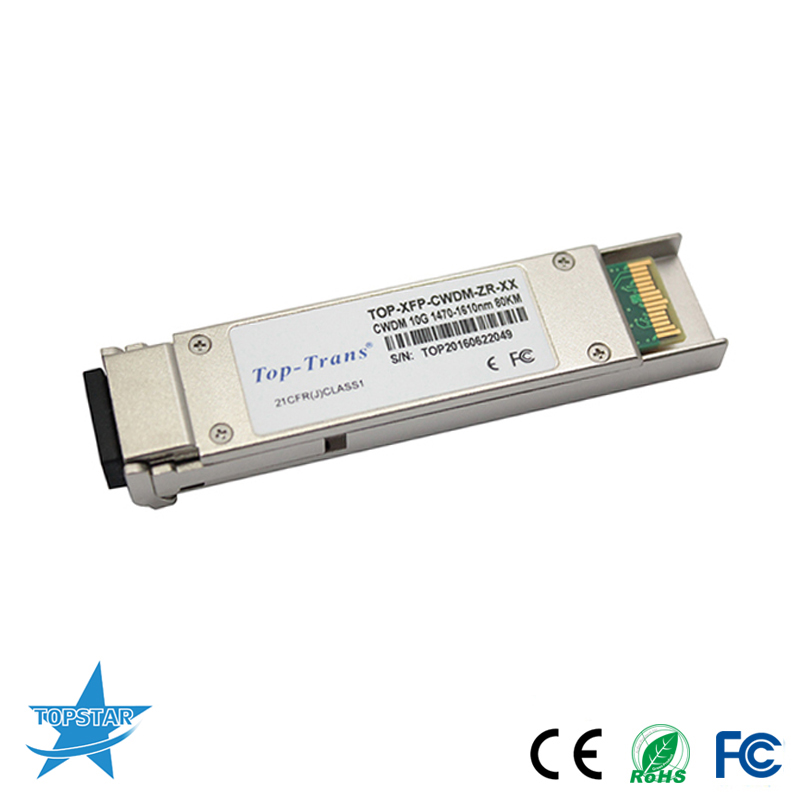

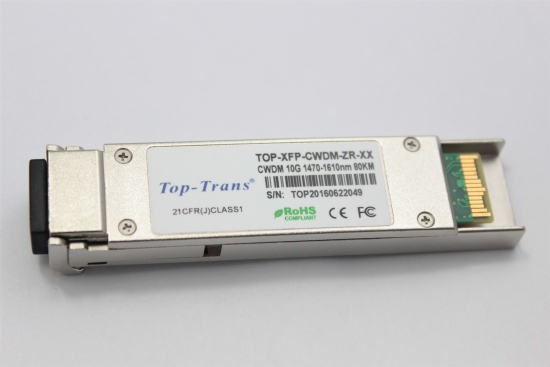

Foundry Networks Compatible 10G CWDM XFP 1470-1610nm 120km DDM Transceiver Module

XFP 10G 120KM CWDM transceivers are de-signed for 10G Ethernet10GBASE-ZR/ZW 802.3ae and10GSOIOC-192/SDHSTM-64,and it can support data-rate from 9.953Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the XFPMSA.The transceiver designs are optimized for high per-formance and cost effective to supply customers the best solutions for data-command telecom applications.
  • item no.:

    TOP-XFP-CWDM-120-XX
  • lead time:

    4-5working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    120km
  • Wavelength:

    1470-1610nm
  • Connector:

    LC
product details

Foundry Networks Compatible 10G CWDM XFP 1470-1610nm 120km DDM Transceiver Module


CWDM XFP 10G Transceivers Are Designed For Use In 10Gb/s to 11.1Gb/s Links Up Yo 120km Over Sngle Mode Fiber


10G CWDM XFP Module



PRODUCT FEATURES

Hot pluggable

Support 9.95Gb/sto11.1Gb/s bit rates

Below<1.6Wpowerdissipation

XFPMS A package with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

Cooled CWDMEML laser and APD Receiver

Up to 120KM for single mode fiber

operating temperature range 0°C to70°C

No reference clock requirement


APPLICATIONS

10GBASE-ZR/ZWEthernet

SONETOC-192/SDHSTM-64

Otheropticallinks


STANDARD

XFPMSA Compliant

SFF-8472reversion9.5compliant

IEEE802.3-2005compliant

Telcordia GR-468-COREcompliant

FCC47CFRPart15,ClassBcompliant

FDA21CFR1040.10and1040.11,class1com-pliant

RoHS compliant


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.





OEM& ODM

Customized label and package , OEM and ODM service offered




Send Us An Inquiry

We will contact you as soon as possible!
