Mini GBIC CWDM 2.5G 1270-1610nm 40km Switch 8 port SFP Optical Transceiver

CWDM Transceiver
new products

GBIC CWDM 2.5G 40km SFP Optical Transceiver
GBIC CWDM 2.5G 40km SFP Optical Transceiver GBIC CWDM 2.5G 40km SFP Optical Transceiver GBIC CWDM 2.5G 40km SFP Optical Transceiver

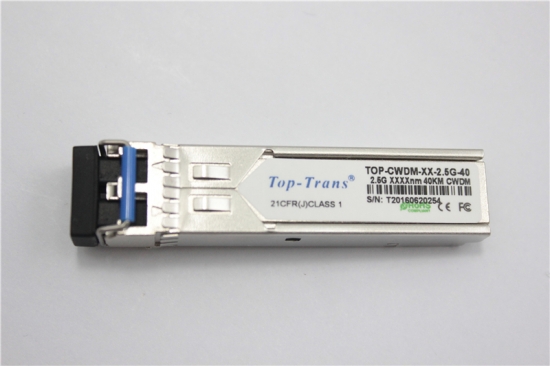

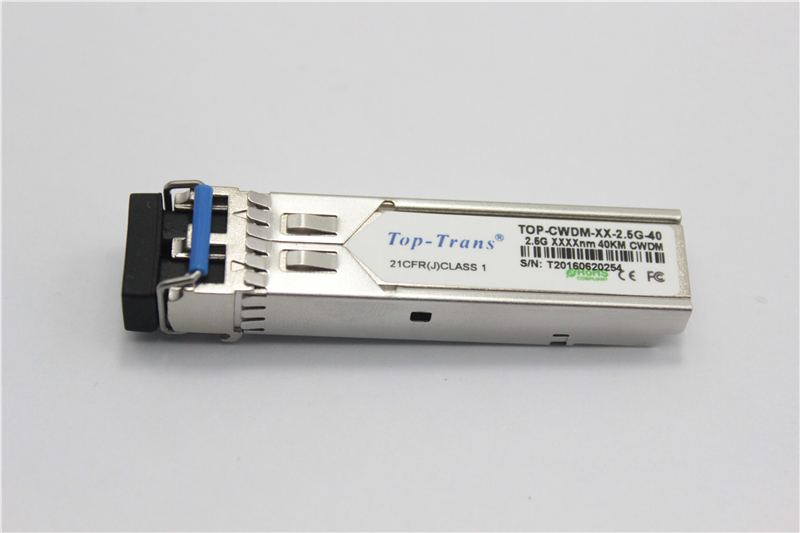

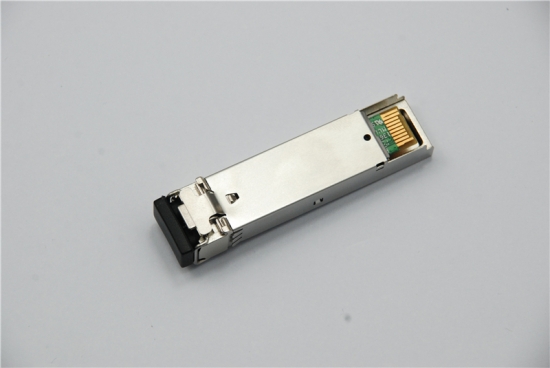

Mini GBIC CWDM 2.5G 1270-1610nm 40km Switch 8 port SFP Optical Transceiver

TOP-CWDM-XX-2.5-40 optical transceivers are designed for optical interfaces for data communications with single mode fiber(SMF). The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecom applications.

  • item no.:

    TOP-CWDM-XX-2.5-40

  • lead time:

    1-3 working days

  • product orgin:

    China

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • payment:

    EXW

  • price range:

    1-10/39$

  • Warranty:

    3 Years

  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃

  • Data Rate:

    2.5G

  • Distance:

    40km

  • Wavelength:

    CWDM

  • Connector:

    Dual LC
contact now
Datasheet
product details

Mini GBIC CWDM 2.5G 1270-1610nm 40km Switch 8 port SFP Optical Transceiver

GBIC CWDM 2.5G 40km


Features

Up to 2.5Gb/s data links

DFB laser transmitter

PIN photo-detector

Up to 40kmon9/125μmSMF

Hot-pluggable SFP footprint

Duplex LC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliantand lead-free

Single+3.3Vpowersupply

Support Digital Diagnostic Monitoring interface

Compliant withSFF-8472

Case operating temperature:0°Cto+70°C


Applications

Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links


STANDARD

SFP+MSA Compliant

SFF-8472reversion9.5compliant

IEEE802.3-2005compliant

Telcordia GR-468-CORE compliant

FCC47CFRPart15,ClassBcompliant

FDA21CFR1040.10and1040.11,class1compliant

RoHS compliant


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.





OEM& ODM:

Customized label and package , OEM and ODM service offered.


tags : Mini GBIC CWDM 2.5G Switch 8 port SFP SFP Optical Transceiver CWDM 2.5G SFP Optical Transceiver 2.5G GBIC 40km CWDM CWDM 2.5G 1270-1610nm 40km
