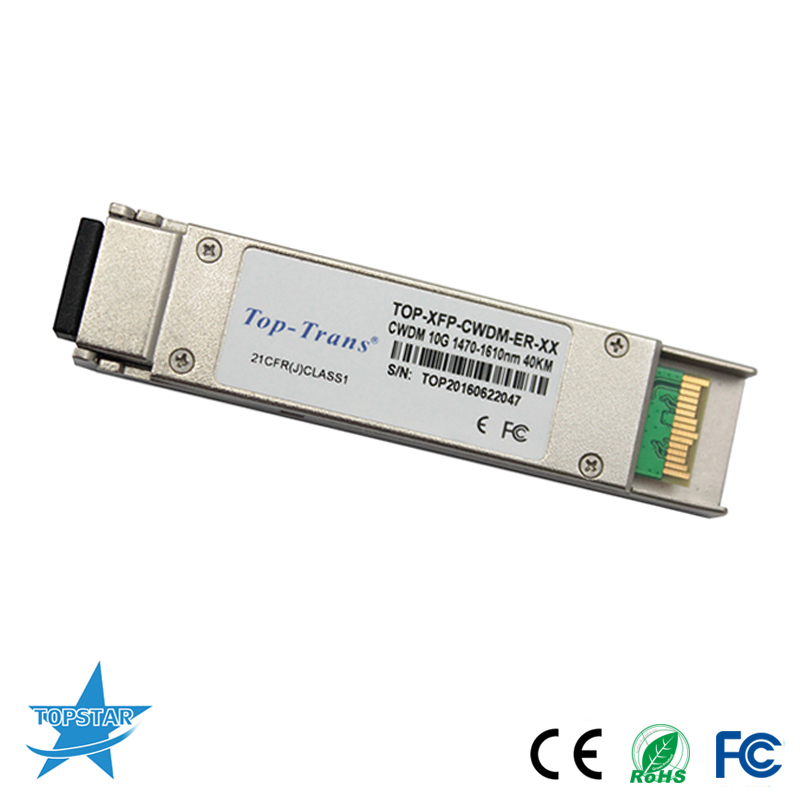

10GBASE-ER CWDM XFP 1270~1610nm 40km Singlemode ASR 9000 Series Transceiver Modules

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

The CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

item no.:
TOP-XFP-CWDM-ER-XX
lead time:
4-5working days
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
payment:
ex-w
Warranty:
3 Years
Condition:
New
Data Rate:
10G
Distance:
40km
Wavelength:
1270-1610nm
Connector:
LC

contact now

Datasheet

product details

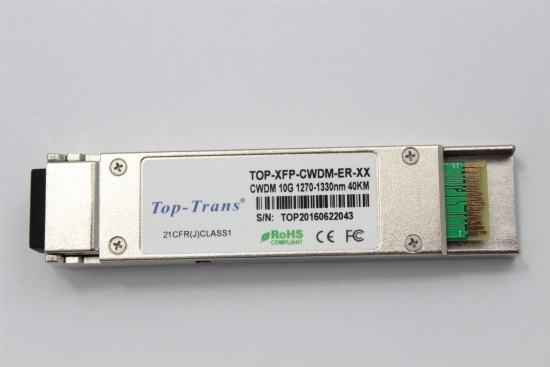

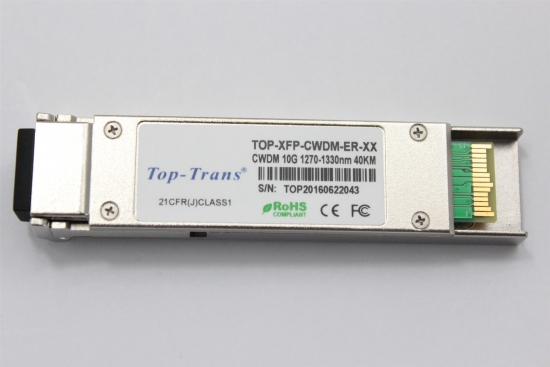

10GBASE-ER CWDM XFP 1270~1610nm 40km Singlemode Cisco ASR 9000 Series Transceiver Modules

Cisco 10G CWDM XFP 1270nm 40km Transceiver

Cisco 10G CWDM XFP

PRODUCT FEATURES

Supports 9.95Gbps to 11.1Gbps bit rates

link length up to 40km

Cooled EML and PIN receiver

Wavelength selectable to ITU-T standards covering CWDM grid

XFP MSA Rev 4.5 Compliant

Very low EMI and excellent ESD protection

High transmission margin

+3.3V single power supply

Temperature range 0°C to 70°C

APPLICATIONS

SONET OC-192&SDH STM 64

10GBASE ER/EW

CWDM Networks

10G Fiber Channel

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

OEM& ODM:

Customized label and package , OEM and ODM service offered
