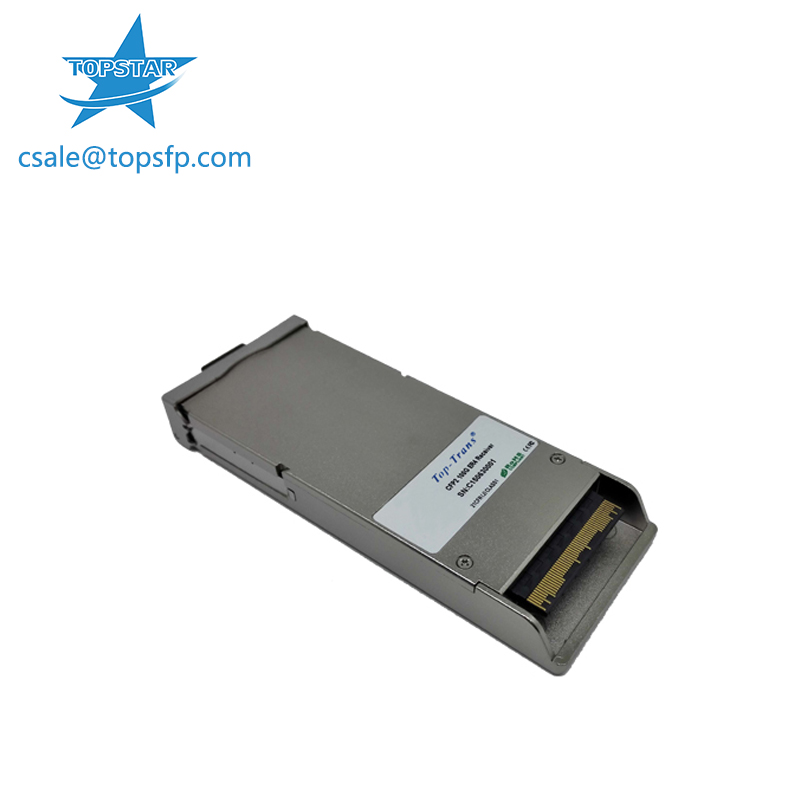

CFP-100G-ER4 Compatible 100GBASE-ER4 1310nm 40km Transceiver Module

Original Brand Optical Transceiver
new products

CFP-100G-ER4
CFP-100G-ER4

CFP-100G-ER4 Compatible 100GBASE-ER4 1310nm 40km Transceiver Module

The original switches marked “Unique” below could be found at Topstar, eg: Juniper MX960 & EX 4300 series, Nexus 9396PX & ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

  • item no.:

    CFP-100G-ER4

  • brand:

    Top-Trans

  • Warranty:

    1 Year

  • Temperature:

    0 to 70°C

  • Data Rate:

    100G

  • Distance:

    40km

  • Wavelength:

    1310nm
contact now
Datasheet
product details

CFP-100G-ER4 Compatible 100GBASE-ER4 1310nm 40km Transceiver Module


Features


  • Supports up to 112Gbps bit rates
  • Duplex LC connector
  • Hot pluggable
  • Operating electrical serial data rate up to 27.952493Gbps
  • APD ROSA
  • 4 parallel electrical serial interface
  • Applicable for 40KM SMF connection
  • Low power consumption, < 12W
  • Digital Diagnostic Monitor Interfacel
  • MDIO Communication Interface
  • Compliant with 100GBASE-ER4
  • Operating case temperature: Commerical:0 to 70 °C








tags : CFP-100G-ER4 100GBASE-ER4 1310nm 40km Transceiver Module ASR 9000 Series Nexus 9396PX 100G-ER4 1310nm 40km
