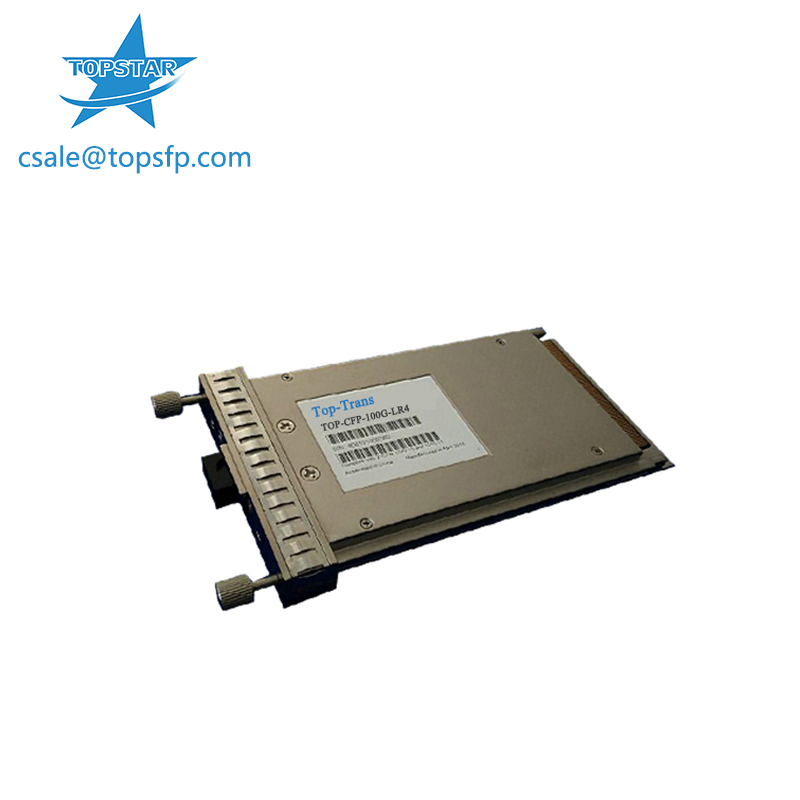

CFP-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km 10-2549-02 Transceiver Module

The original switches marked “Unique” below could be found in Topstar, eg: Juniper MX960 & EX 4300 series, Nexus 9396PX &  ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.
  • item no.:

    CFP CFP-100G-L
  • Warranty:

    1 Year
  • Temperature:

    0 to 70°C
  • Data Rate:

    100G
  • Distance:

    10km
  • Wavelength:

    1310nm
product details

CFP-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km 10-2549-02 Transceiver Module


Features

  • Hot Pluggable CFP MSA package
  • IEEE 802.3ba 100GBASE-LR4 compliant
  • ITU-T 4I1-9D1F compliant
  • CFP-MSA-HW-Spec-rev1-40 compliant
  • Up to 10km for G.652 SMF
  • Receiver: 4-lane x 25Gb/s PIN ROSAs
  • Transmitter: 4-lane x 25Gb/s LAN-WDM EA-DFB TOSAs (1295.56,1300.05,1304.58,1309.14nm)
  • 10x10G Electrical Serial Interface (CAUI/OTL4.10)
  • MDIO management interface with Digital Diagnostic
  • +3.3V power supply
  • Power consumption less than 12W
  • Compact size: 144.75 x 82 x 13.6 mm
  • Operating case temperature: 0 to +70 ℃
  • Duplex SC or LC Receptacle
  • ROHs-6 compliant
