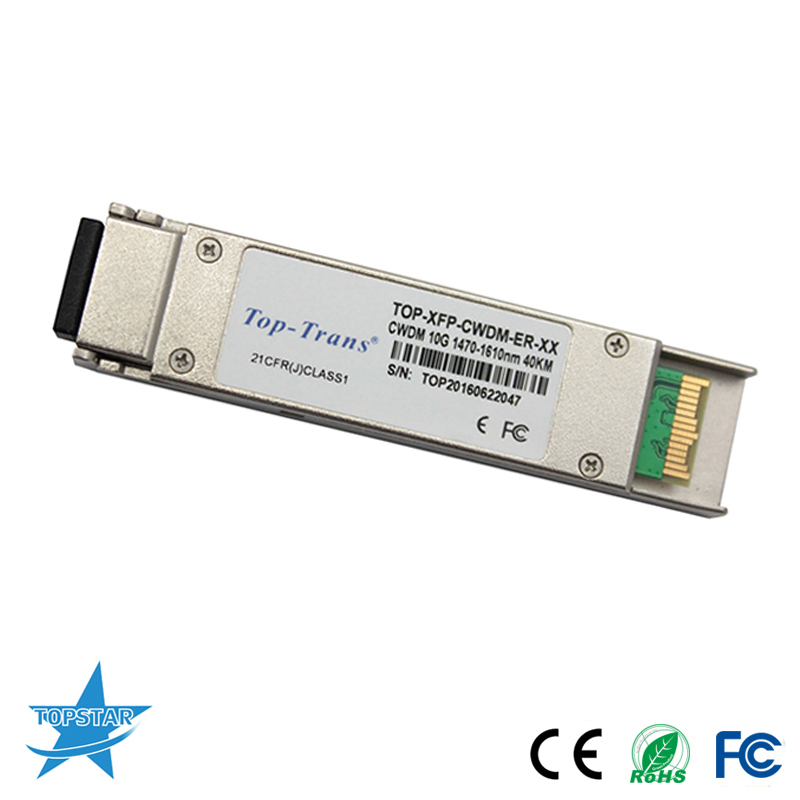

read moreTopstar TOP-XFP-CWDM-ER-XX is Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.The CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
item no.:
TOP-XFP-10G-ER-33lead time:
4-5working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wWarranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
40kmWavelength:
1330nmConnector:

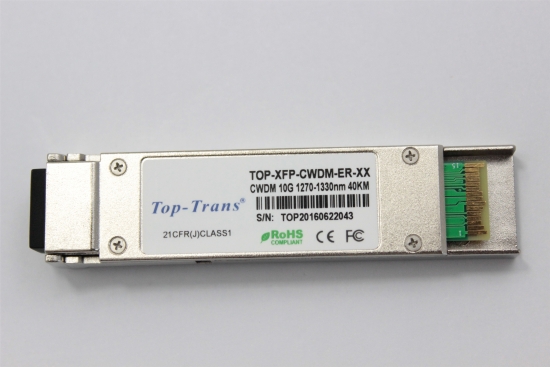

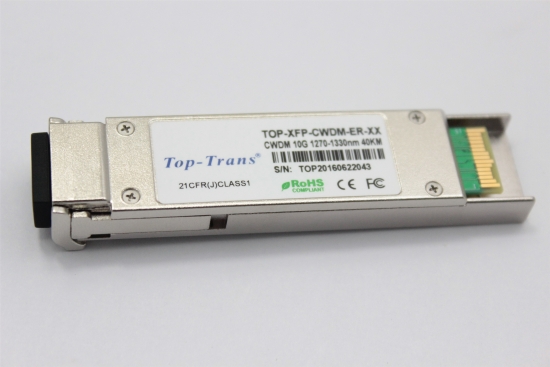

LC10GBASE Double Fiber CWDM XFP 1310nm 40km Compatible Transceiver Module
Multi-Vendor MSA Compatible 10G CWDM XFP Transceiver (10 Gigabit Small Form Factor Pluggable Module)
PRODUCT FEATURES
Supports 9.95Gbps to 11.1Gbps bit rates
link length up to 40km
Cooled EML and PIN receiver
Wavelength selectable to ITU-T standards covering CWDM grid
XFP MSA Rev 4.5 Compliant
Very low EMI and excellent ESD protection
High transmission margin
+3.3V single power supply
Temperature range 0°C to 70°C
APPLICATIONS
SONET OC-192&SDH STM 64
10GBASE ER/EW
CWDM Networks
10G Fiber Channel
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered
