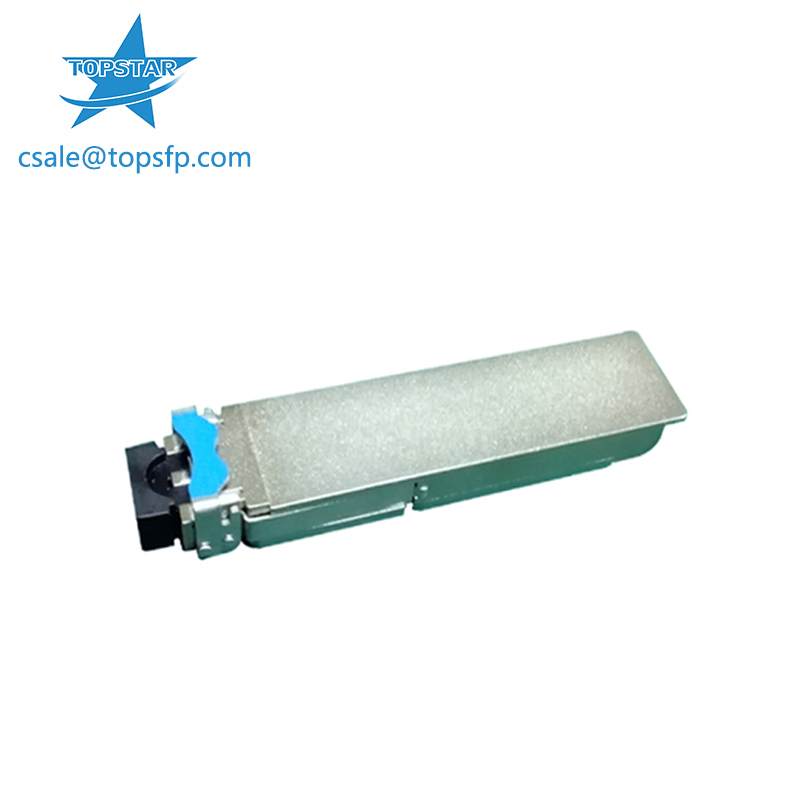

CFP4-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km Transceiver Module

Original Brand Optical Transceiver
new products

CFP4-100G-LR4
CFP4-100G-LR4

CFP4-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km Transceiver Module

The original switches marked “Unique” below could be found at Topstar, eg: Juniper MX960 & EX 4300 series, Nexus 9396PX & ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

  • item no.:

    CFP4-100G-LR4

  • brand:

    Top-Trans

  • Warranty:

    1 Year

  • Temperature:

    0 to 70°C

  • Data Rate:

    100G

  • Distance:

    10km

  • Wavelength:

    1310nm
contact now
Datasheet
product details

CFP4-100G-LR4 Compatible 100GBASE-LR4 1310nm 10km Transceiver Module


Features

  • Hot pluggable CFP4 MSA form factor
  • Compliant to IEEE 802.3ba 100GBASE-LR4  and CFP-MSA-CFP4-HW-Specification
  • Up to 10km reach for G.652 SMF
  • Single +3.3V power supply
  • Operating case temperature: 0~70oC
  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
  • Receiver: 4x25Gb/s PIN ROSA
  • 4x28G Electrical Serial Interface (CEI-28G-VSR)
  • MDIO management interface with digital diagnostic monitoring
  • Power consumption less than 6W
  • Duplex LC receptacle
  • RoHS-6 compliant









tags : CFP4-100G-LR4 100GBASE-LR4 1310nm 10km Transceiver Module CFP4 100GBASE-LR4 CFP4 1310nm 10km Transceiver Module CFP4-100G 1310nm 10km
