Brocade 32Gb/s ELWL FC SFP+ Transceiver Specifications
Highlights
• Provides high system reliability through rigorous qualification and certification processes
• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery
item no.:
57-1000494-01brand:
BrocadeCondition:
NewTemperature:
0-70Data Rate:
32GDistance:
25kmWavelength:
1310nmConnector:
LCBrocade FC SFP Transceiver Module 57-1000494-01 32G ELWL 1310nm 25km Single Mode Fiber
Brocade 32Gb/s ELWL FC SFP+ Transceiver Specifications
Highlights
• Provides high system reliability through rigorous qualification and certification processes
• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery
• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs
• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility
• Optimizes connectivity with Brocade platforms to enable maximum cable distance
• Extends Fibre Channel connectivity over distance in mainframe environments, enabling highperformance business continuity and disaster recovery solutions
Key Features
• Hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signaling rates up to 28.05 Gb/s
• 1310 nm DFB laser
• FC-PI-6 compliance for 28.05/14.025/8.5 Gb/s operation
Ordering Part Number
• XBR-000278 (1-pack)
Regulatory and Standards Compliance
• North America: UL/CSA 60950, CDRH Class 1
• European Union: EN 60950, EN 60825 Class 1
Caution
• Do not look through the optical ports, as it is a potential eye hazard.
• SFP is an ESD sensitivity Class 1 device. It should be handled accordingly
Parameters for the 32Gb/s ELWL FC SFP+ Transceiver Module:
Fiber Type | single mode fiber |
Connector | LC |
Transmit&Receive Wavelength (nm) | 1295 nm to 1310 nm |
Pull Tab Color | Blue |
Optical return loss | 26 dB min |
Tx Power | +2.0 dBm to +7.0 dBm |
Rx Sensitivity | 41 µW, −13.9 dBm |
Spectral width | 1.0 nm |
Power Consumption | 1.5W |
Single Power Supply | 3.3 V |
Dimensions | (H x W x D)12.21 x 14.80 x 56.70 mm |

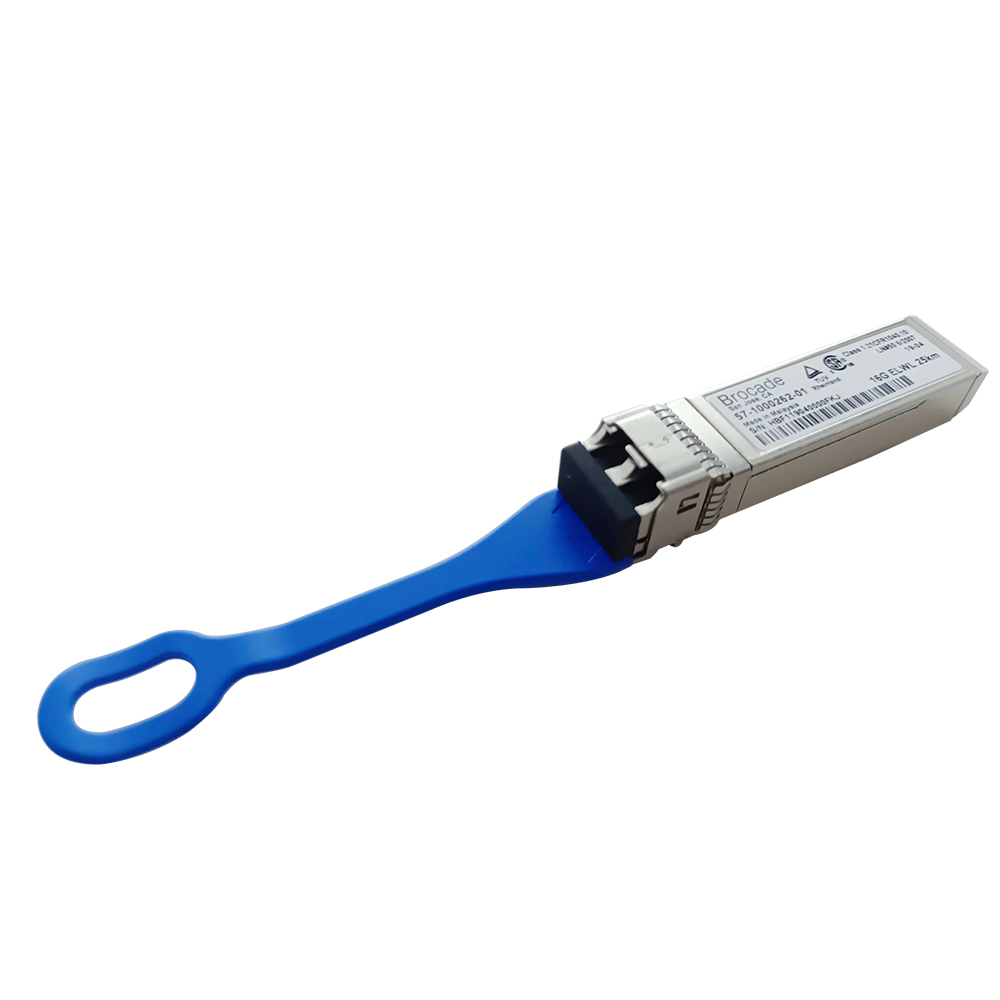

Photo for Brocade 32Gb/s ELWL FC SFP+ Transceiver
