Brocade 32Gb/s LW FC SFP+ Transceiver Specifications
Key Features
The Brocade 32Gb/s LWL 10 km SFP+ modules are hot-swappable, lowvoltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signaling rates up to 28.05Gb/s. They comply with SFP+ mechanical (SFF-8402), optical, and electrical specifications (FC-PI-6) for LC duplex transceivers.
The Brocade 32Gb/s LWL 10 km SFP+ is a multirated 1310 nm SFP that complies with 28.05/14.025/8.5Gb/s Fibre Channel specifiations.
item no.:
57-1000486-01brand:
BrocadeCondition:
NewTemperature:
0-70Data Rate:
32GDistance:
10kmWavelength:
1310nmConnector:
LC
Brocade 57-1000486-01 32G LW FC SFP+ Transceiver XBR-000438 SMF Optical Module
Brocade 32Gb/s LW FC SFP+ Transceiver Specifications
Key Features
The Brocade 32Gb/s LWL 10 km SFP+ modules are hot-swappable, lowvoltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over single-mode optical fiber at signaling rates up to 28.05Gb/s. They comply with SFP+ mechanical (SFF-8402), optical, and electrical specifications (FC-PI-6) for LC duplex transceivers.
The Brocade 32Gb/s LWL 10 km SFP+ is a multirated 1310 nm SFP that complies with 28.05/14.025/8.5Gb/s Fibre Channel specifiations.
End-to-End Compatibility and Reliability
Brocade 32Gb/s LWL 10 km SFP+ modules support highly reliable operations in data center fabrics and are optimized for Brocade 32Gb/s switching platforms. They undergo rigorous qualification and certification testing that results in an end-to-end solution that is easier to maintain—helping improve the availability of data center fabrics supporting mission-critical applications.
Ordering Part Number
• XBR-000238 (1-pack)
• XBR-000239 (8-pack)
Parameters for the 32Gb/s LW FC SFP+ Transceiver Module:
Fiber Type | single mode fiber |
Connector | LC |
Transmit&Receive Wavelength (nm) | 1295 to 1325 nm |
Pull Tab Color | Blue |
Optical return loss | 26 dB min |
Tx Power | −5.0 to 2.0 dBm |
Rx Sensitivity | 72 μW, –11.4 dBm |
Spectral width | 1.0 nm |
Power Consumption | 1.5W |
Single Power Supply | 3.3 V |
Dimensions | (H x W x D)12.21 x 14.80 x 56.70 mm |

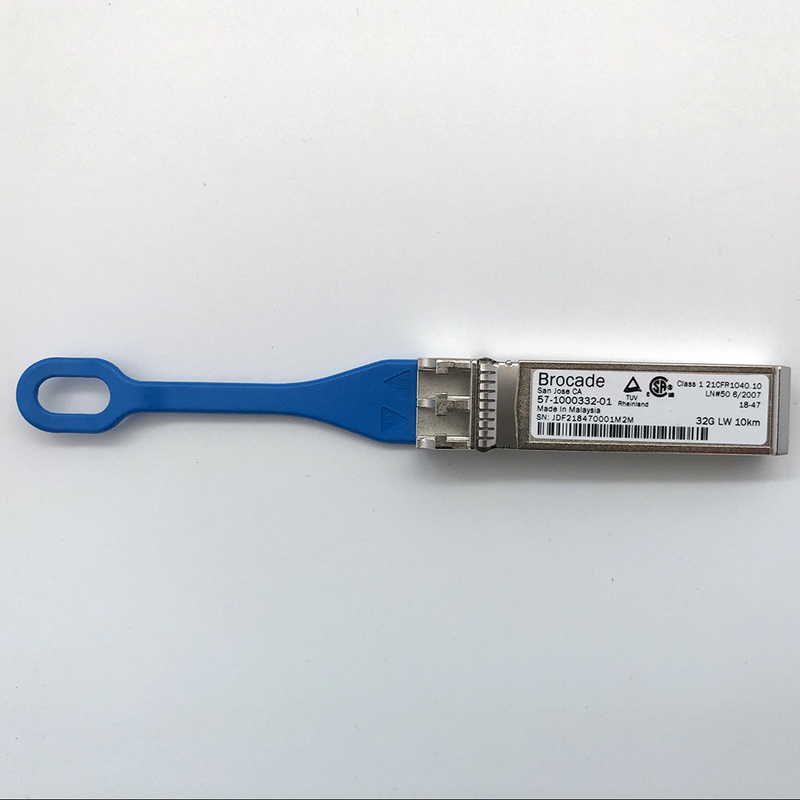

Photo for Brocade 32Gb/s LW FC SFP+ Transceiver
Photo for Brocade 32Gb/s ELWL FC SFP+ Transceiver
