Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
read more
The Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation,
read more
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
read more
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28
read more
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498
read more
item no.:
Brocade 57-1000080-0brand:
BrocadeWarranty:
1 YearCondition:
NewTemperature:
0~70℃Data Rate:
8GDistance:
25kmWavelength:
1310nmConnector:
LC duplex| Brocade Transceiver Support Matrix | |||||||||||||||||
|
Gen7
|
Gen6
|
Gen5
|
|||||||||||||||
| Description | Manufacturing Part Number | Brocade Ordering Part Number | Brocade7X |
BrocadeFC64-48 |
BrocadeFC32-X7-48 | BrocadeG720 | BrocadeX6 | BrocadeFC32-64 | BrocadeFC32-48 | BrocadeG630 | BrocadeG620 | BrocadeG610 | BrocadeDCX8510 | Brocade6520 | Brocade6510 | Brocade6505 | |
| 64 FC SFP+ | SWL | 57-1000495-01 | XBR-000462/XBR-000463(1-pack) |
|
●
|
|
●
|
|
|
|
|
|
|
|
|
|
|
| Gen 7 FC QSFP+ | SWL | 57-1000481-01 | XBR-000420(1-pack) |
●
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8G FC SFP+ |
SWL | 57-1000117-01 | XBR-000163/XBR-000164(8-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
| LWL-10km | 57-1000027-02 | XBR-000153/XBR-000172(8-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
| ELWL-25km | 57-0000080-01 | XBR-000174(1-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
| 10G FC SFP+ | SWL | 57-1000114-01 | XBR-000218(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
| LWL-10km | 57-1000115-01 | XBR-000217(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
| SWL | 57-1000492-01 | XBR-000418(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
| LWL-10km | 57-1000493-01 | XBR-000417(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
| 16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192/XBR-000193(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
| SWL | 57-1000487-01 | XBR-000492/XBR-000493(8-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
| LWL-10km | 57-0000089-01 | XBR-000198/XBR-000199(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
| LWL-10km | 57-1000488-01 | XBR-000498/XBR-000499(8-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
| ELWEL-25km | 57-1000262-01 | XBR-000258(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
| ELWEL-25km | 57-1000489-01 | XBR-000458(1-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
| 4x16G FC QSFP+ | SWL | 57-1000294-01/02 | XBR-000245(1-pack) |
|
|
|
|
●
|
●
|
|
●
|
●
|
|
●
|
|
|
|
| SWL | 57-1000267-01 | XBR-000232(1-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
|
|
|
|
| 2km | 57-1000310-01 | XBR-000255(1-pack) |
|
|
|
|
●
|
|
|
|
|
|
●
|
|
|
|
|
| 32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212/XBR-000213(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
| SWL | 57-1000485-01 | XBR-000412/XBR-000413(8-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
| LWL-10km | 57-1000332-01 | XBR-000238/XBR-000239(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
| LWL-10km | 57-1000486-01 | XBR-000438/XBR-000439(8-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
| ELWL-25km | 57-1000355-01 | XBR-000278(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
| ELWL-25km | 57-1000494-01 | XBR-000478(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
| 4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275(1-pack) |
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
| SWL | 57-1000490-01 | XBR-000475(1-pack) |
●
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
|
| 2km | 57-1000480-01 | XBR-000285(1-pack) |
●
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
|
| Ethernet QSFP+ | 40GBASE-SR4 or 4x10GbE | 57-1000129-01 | XBR-40G-SR4-INT-0286 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
| 40GbE BiDi | 57-1000339-01 | XBR-40G-SR-BIDI-0287 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
|
| 100GBASE-SR4 or 4x25GbE | 57-1000326-01 | XBR-100G-SR4-0288 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
|

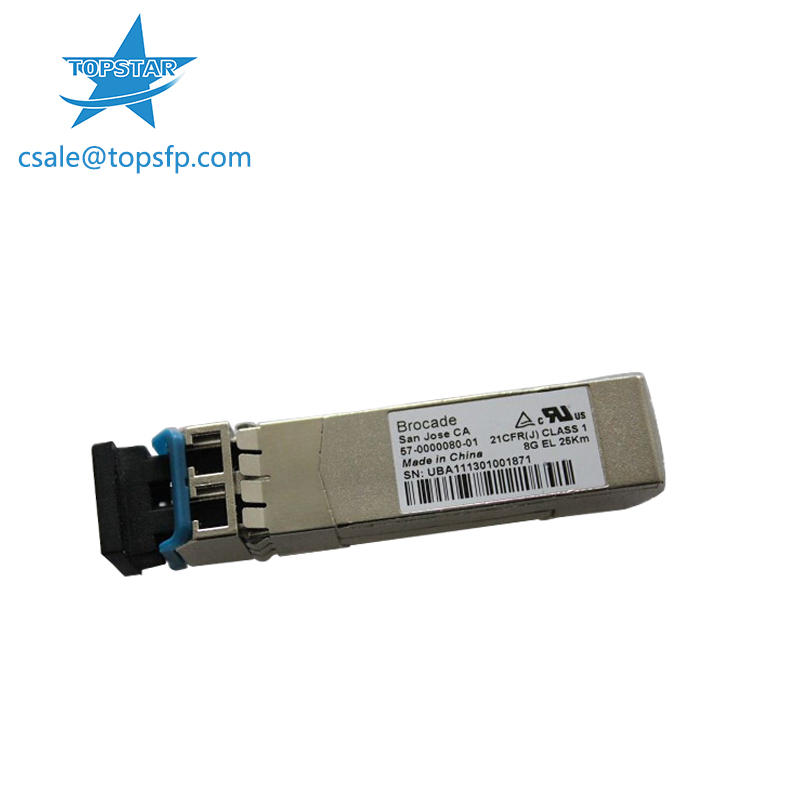

Original Brocade 57-1000080-01/XBR-000174 8Gbps EL 1310nm 25km fiber optic module Brocade 5100 300 Encryption
Brand
Brocade
Place of origin
Malaysia
Condition
New
Form Factor
SFP
Wavelength:
1310nm
Distance
25km
Data Rate (max)
8Gb/s
Low End Case Temperature (°C)
0°C
High End Case Temperature (°C)
70°C
Diagnostics
Digital
Transmitter
VCSEL
Receiver
PIN
Voltage Supply
3.3--5v
Connector
Dual LC
Warranty
1 year
Certificate
CE , FCC, RoHs
Condition
99% to new
DDMI
Yes
Time of delivery
Within 24 hours
Package
10 pcs/anti-static box
Compatible with
Brocade XBR-000174/57-000080-01 DCX 8510,DCX,6520,6510,6505,5300,5100,300, Encryption,7800,7840
PRODUCT FEATURES
SERVERICES WE HAVE
prev :
Used Original Brocade 57-1000088-01 XBR-000193 SW 16G sfp+ Optical Modules Switch Brocade DCX 8510,6520,6510,6505,7840next :
Used Original Brocade 10G-SFPP-SR 57-0000075-01 XBR-000180 Ethernet SR SFP+
Brocade XBR-000139 57-1000013-01 Compatible SFP 4.25G 850nm 550m Fibre Optic For 5300,5100,300 switch
The SFP transceivers are high performance,Brocade XBR-000139 XBR-000141 XBR-000158 57-1000013-01 Compatible SFP 4.25G 850nm 550m Fibre Optic for Brocade DCX,5300,5100,300,Encryption,7800
SFP+ Compatible With Brocade XBR-000192 XBR-000193 16G 850nm 300m Optical Transceivers For Switch DCX 8510
TOP-SFP+-16G-SW Compatible With Brocade XBR-000192,XBR-000193,57-0000088-01,DCX 8510,6520,6510,6505,7840 Switch,optical transceivers are designed for 16Gb/s serial optical interfaces.Please read more on our web.
Used Original Brocade 10G-SFPP-SR 57-0000075-01 XBR-000180 Ethernet SR SFP+
Brocade 10G-SFPP-SR 57-0000075-01 XBR-000180 XBR-000218 XBR-000181 optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with multimode fiber (MMF) Please read and check it.
Used Original Brocade 57-1000088-01 XBR-000193 SW 16G sfp+ Optical Modules Switch Brocade DCX 8510,6520,6510,6505,7840
Brocade XBR-000192,XBR-000193,57-0000088-01 for DCX 8510,6520,6510,6505,7840 Switch,optical transceivers are designed for 16Gb/s serial optical interfaces.Please read more on our web.
Used Original Brocade 57-0000089-01 XBR-000198/XBR-000199 SFP+ 16G LWL 1310nm 10km FC for switch DCX 8510,6520,6510
Brocade 57-0000089-01 XBR-000198/XBR-000199 for DCX 8510,6520,6510,6505,7840 Switch,optical transceivers are designed for 16Gb/s serial optical interfaces.Please read more on our web.
Used Original Brocade 57-1000012-01 XBR-000147 8G SW Fibre Channel 850nm SFP Transceiver Brocade DCX ,5300,5100
Brocade 57-1000012-01 XBR-000147/XBR-000148/XBR-000159 for DCX ,5300,5100,300,encryption,7800 Switch,optical transceivers are designed for 8Gb/s serial optical interfaces.Please read more on our web.
Used Original Brocade XBR-000139 57-1000013-01 SFP 4.25G 850nm 550m Fibre Optic For 5300,5100,300 switch
Brocade XBR-000139 XBR-000141 XBR-000158 XBR-000097 57-1000013-01 SFP 4.25G 850nm 550m Fibre Optic for Brocade DCX,5300,5100,300,Encryption,7800 Switch,optical transceivers are designed for 4.25Gb/s serial optical interfaces.Please read more on our web.
Used Original Brocade XBR-000142 57-1000014-01 fiber optic transceiver 4G 4km ge sfp lc connector lx/lh transceiver 5300,5100,300
Brocade XBR-000143 XBR-000142 57-1000014-01 SFP 4.25G 1310nm 4km Fibre Optic for Brocade DCX,5300,5100,300,Encryption,7800 Switch,optical transceivers are designed for 4.25Gb/s serial optical interfaces.Please read more on our web.
