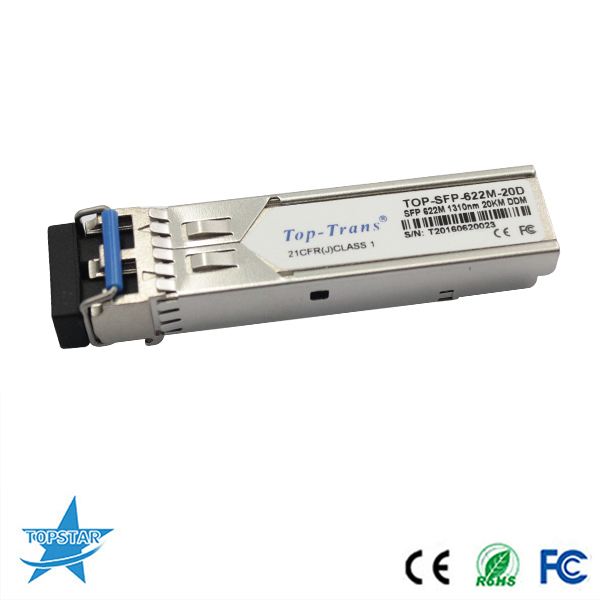

622m 20km LC Connector SFP 1310nm Optical Fiber Switch SFP

622m 20km LC Connector SFP is high performance, cost effective modules supporting 622Mbps data-rate and 20km transmission distance with SMF.

1310nm Optical Fiber Switch SFP consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

LC Connector SFP transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


  • item no.:

    Top-sfp-622M-20D
  • lead time:

    1-3 Working Days After Payment Received
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Compatible
  • Temperature:

    0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
  • Data Rate:

    622 M
  • Distance:

    20 km
  • Wavelength:

    1310 nm
  • Connector:

    Dual LC
product details

622m 20km LC Connector SFP 1310nm Optical Fiber Switch SFP

622m 20km LC Connector SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.


Product Features

Transceiver unit with independent

1310nm FP Laser diode transmitter

In GaAs PIN photodiode receiver

Up to 622Mbps data rate operation

Up to 20KM on 9/125μm SMF

Standard serial ID information compliant with SFP MSA

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

RoHS compliant

Case operating temperature

  Commercial: 0°C to +70°C

  Extended: -10°C to +80°C

  Industrial: -40°C to +85°C


Applications

SDH STM-1, S-1.1,L-1.1, L-1.2

SONET OC-3 IR1,LR1,LR2

Other optical transmission systems

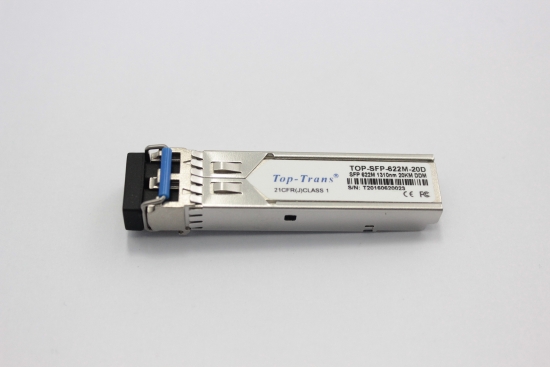

Below is the picture of 1310nm Optical Fiber Switch SFP

622m 20km LC Connector SFP


Professional Service

622M LC Connector SFP is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.




OEM& ODM

Customized label and package. Both OEM and ODM service are offered.
