100Base ZX SFP Transceiver Module Manufacturers

100Base ZX SFP Transceiver Module designs are optimized for high performance and cost effective to supply customers with the best solutions for telecom applications from Transceiver Module Manufacturers.

item no.:
Top-sfp-155M-80D
lead time:
1-5 Working Days After Payment Received
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Compatible
Temperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Data Rate:
155 M
Distance:
80 km
Wavelength:
1550 nm
Connector:
Dual LC

contact now

Datasheet

product details

100Base ZX SFP Transceiver Module Manufacturers

The Compatible GLC-ZX-SMD is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Product Features

Transceiver unit with independent
1550nmDFBLaser diode transmitter
In GaAsPIN photodiode receiver
Up to 155Mbps data rate operation
Up to 80KMon9/125μmSMF
Standard serial ID information compliant with SFP MSA
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature

Commercial: 0°C to+70°C

Extended: -10°C to+80°C

Industrial: -40°C to+85°C

Applications

Switch/Router
SAN/Server

Other optical transmission systems

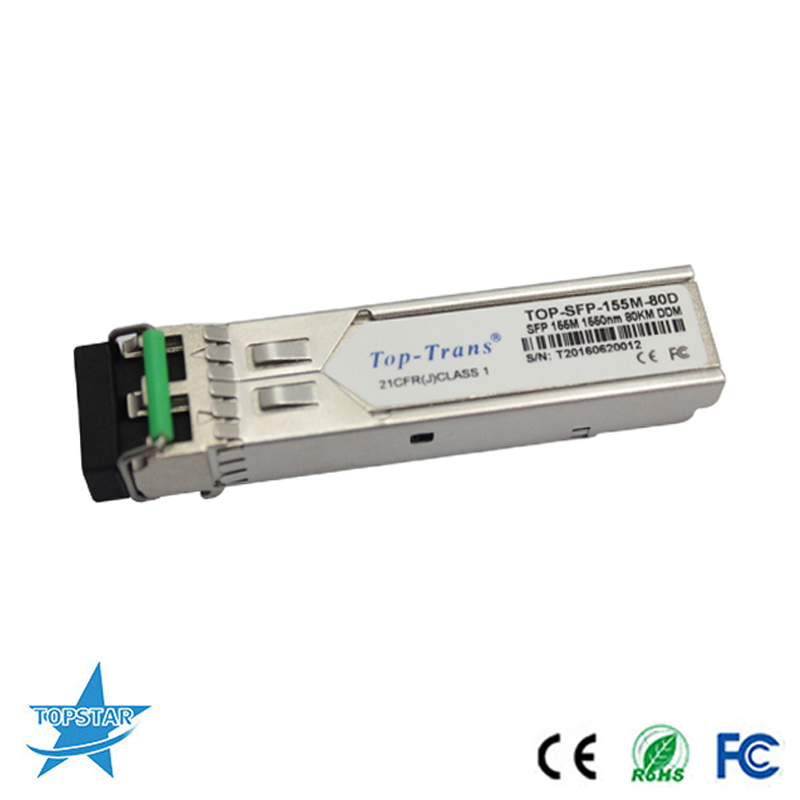

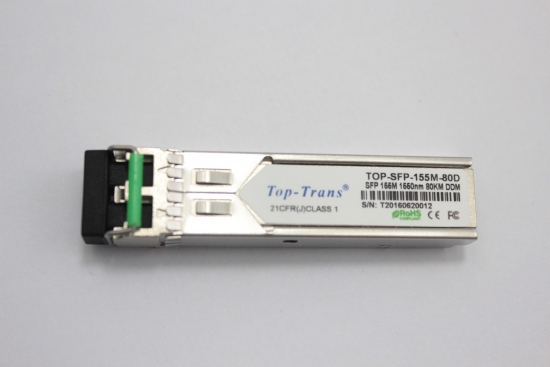

Below lies the picture of 100Base ZX SFP Transceiver Module

Compatible GLC-ZX-SMD

Professional Service

SFP made by Transceiver Module Manufacturers is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
