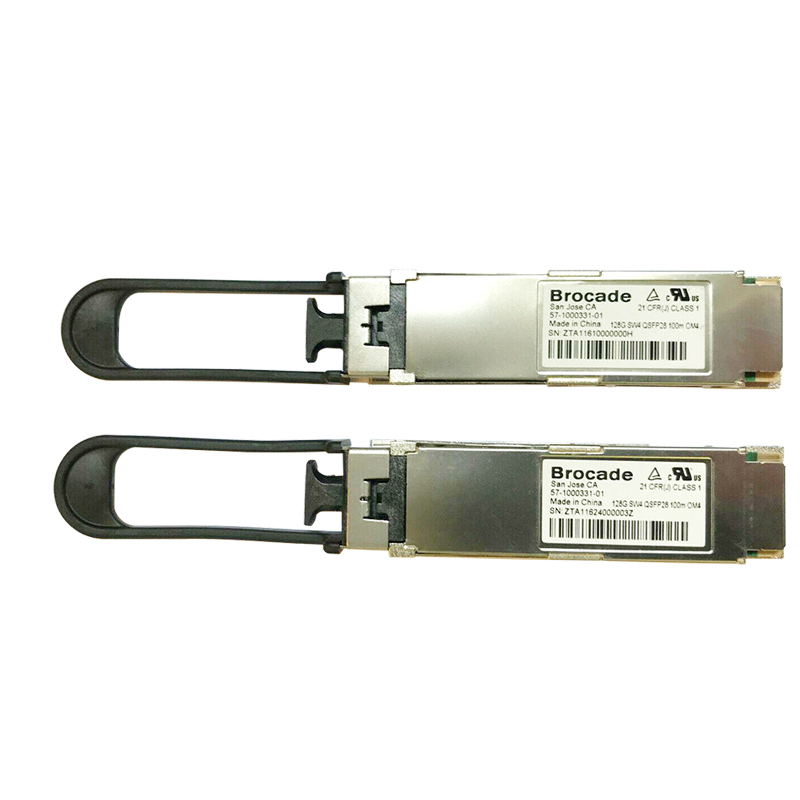

read moreUsed Brocade 57-1000331-01 XBR-000268 QSFP 128G SW4 QSFP28 100m OM4 Transceiver
item no.:
128G QSFP28 SW4 100mbrand:
BrocadeWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
128GDistance:
100mWavelength:
850nmConnector:
LCBrocade Transceiver Support Matrix | |||||||||||||||||
Gen7
|
Gen6
|
Gen5
|
|||||||||||||||
Description | Manufacturing Part Number | Brocade Ordering Part Number | Brocade7X |
BrocadeFC64-48 |
BrocadeFC32-X7-48 | BrocadeG720 | BrocadeX6 | BrocadeFC32-64 | BrocadeFC32-48 | BrocadeG630 | BrocadeG620 | BrocadeG610 | BrocadeDCX8510 | Brocade6520 | Brocade6510 | Brocade6505 | |
64 FC SFP+ | SWL | 57-1000495-01 | XBR-000462/XBR-000463(1-pack) |
|
●
|
|
●
|
|
|
|
|
|
|
|
|
|
|
Gen 7 FC QSFP+ | SWL | 57-1000481-01 | XBR-000420(1-pack) |
●
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8G FC SFP+ |
SWL | 57-1000117-01 | XBR-000163/XBR-000164(8-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
LWL-10km | 57-1000027-02 | XBR-000153/XBR-000172(8-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
ELWL-25km | 57-0000080-01 | XBR-000174(1-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
10G FC SFP+ | SWL | 57-1000114-01 | XBR-000218(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
LWL-10km | 57-1000115-01 | XBR-000217(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
SWL | 57-1000492-01 | XBR-000418(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
LWL-10km | 57-1000493-01 | XBR-000417(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
|
●
|
●
|
●
|
|
|
16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192/XBR-000193(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
SWL | 57-1000487-01 | XBR-000492/XBR-000493(8-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
LWL-10km | 57-0000089-01 | XBR-000198/XBR-000199(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
LWL-10km | 57-1000488-01 | XBR-000498/XBR-000499(8-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
ELWEL-25km | 57-1000262-01 | XBR-000258(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
ELWEL-25km | 57-1000489-01 | XBR-000458(1-pack) |
|
|
●
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
4x16G FC QSFP+ | SWL | 57-1000294-01/02 | XBR-000245(1-pack) |
|
|
|
|
●
|
●
|
|
●
|
●
|
|
●
|
|
|
|
SWL | 57-1000267-01 | XBR-000232(1-pack) |
|
|
|
|
|
|
|
|
|
|
●
|
|
|
|
|
2km | 57-1000310-01 | XBR-000255(1-pack) |
|
|
|
|
●
|
|
|
|
|
|
●
|
|
|
|
|
32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212/XBR-000213(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
SWL | 57-1000485-01 | XBR-000412/XBR-000413(8-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
LWL-10km | 57-1000332-01 | XBR-000238/XBR-000239(8-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
LWL-10km | 57-1000486-01 | XBR-000438/XBR-000439(8-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
ELWL-25km | 57-1000355-01 | XBR-000278(1-pack) |
|
|
|
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
ELWL-25km | 57-1000494-01 | XBR-000478(1-pack) |
|
●
|
●
|
●
|
|
|
●
|
●
|
●
|
●
|
|
|
|
|
|
4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275(1-pack) |
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
SWL | 57-1000490-01 | XBR-000475(1-pack) |
●
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
|
2km | 57-1000480-01 | XBR-000285(1-pack) |
●
|
|
|
|
●
|
●
|
|
●
|
●
|
|
|
|
|
|
|
Ethernet QSFP+ | 40GBASE-SR4 or 4x10GbE | 57-1000129-01 | XBR-40G-SR4-INT-0286 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
40GbE BiDi | 57-1000339-01 | XBR-40G-SR-BIDI-0287 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
|
100GBASE-SR4 or 4x25GbE | 57-1000326-01 | XBR-100G-SR4-0288 |
|
|
|
|
|
●
|
|
|
|
|
|
|
|
|
Product Description:
Brand Name:Brocade
Model Number:57-1000331-01
Wavelength:850nm
Distance:100m
Data Rate:128G
Type:QSFP28
Connector:LC Dulplex
Temperature:0°-70°
Warranty:1-year
Application:switch,router
Model:57-1000332-01
Fiber Type:MM
