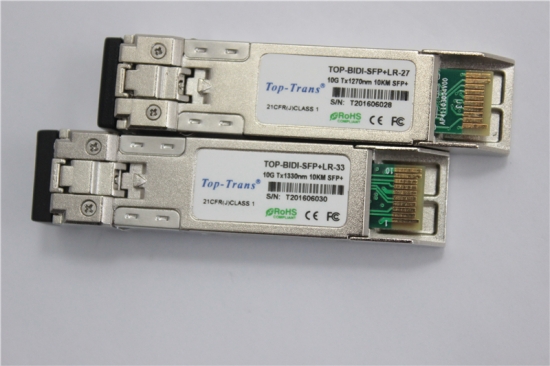

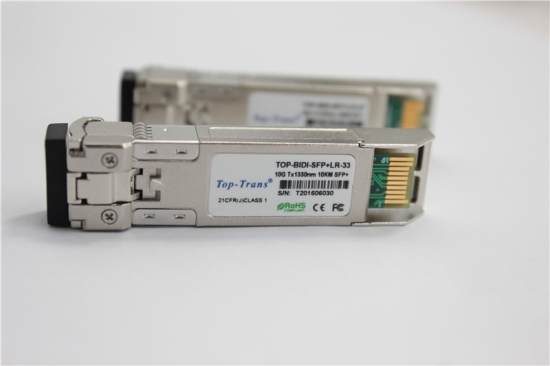

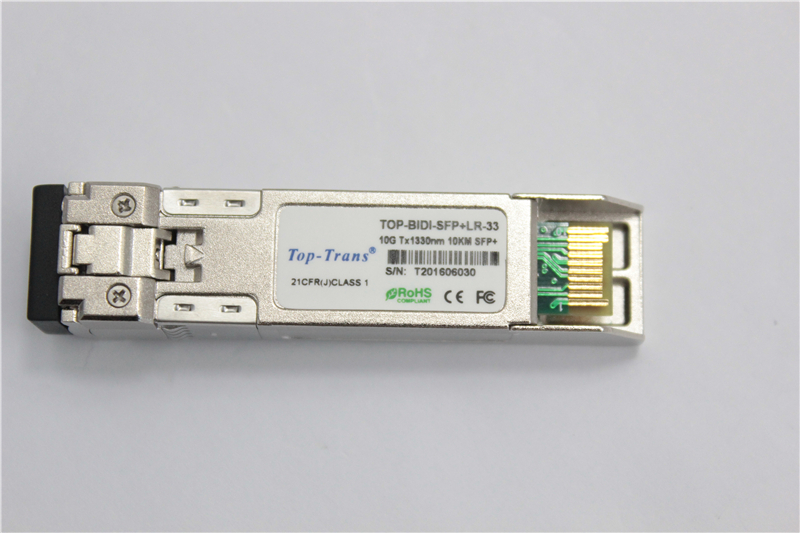

10G BIDI SFP+ TX1330/RX1270nm 20km 0-70°C
single core LC compatible optical module
item no.:
TBD-SFP+-LH33lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
EXWprice:
$0.9/pcsWarranty:
3 YearsTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
10kmWavelength:
Tx1330/Rx1270nmConnector:
Single port LC/SC
10g Sfp Compatibility Matrix Tx1330/Rx1270nm 10km BIDI Manufacturers WDM
PRODUCT FEATURES
● SFPMS A package with duplex LC connector
● Very low EMI and excellent ESD protection
● Digital Diagnostic Monitor Interface
● Hot pluggable
● 10Gb/s serial optical interface
● Upto10km distance
● Compliant with SFP+MSA
● High transmission margin
● +3.3V single power supply
● Below<1.5W power consumption
● SFP mechanical interface
APPLICATIONS
● 10GBASE-BXat10.3125Gb/s
● 10GBASE-BXat9.953Gb/s
STANDARD
● SFP+MSA Compliant
● SFF-8472reversion9.5compliant
● IEEE802.3-2005compliant
● Telcordia GR-468-COREcompliant
● FCC47CFRPart15,ClassBcompliant
● FDA21CFR1040.10and1040.11,class1compliant
● RoHS compliant
Professional Service
1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
4.Customized label and package , OEM and ODM service offered
prev :
TBD-SFP+-LH27 10G BIDI SFP+ TX1270/RX1330nm 20km 0-70°C single core LC compatible Huawei optical modulenext :
TOPSTAR compatible Finisar Juniper BIDI TOP-SFP+10G-LR 1310nm SMF SFP transceiver
48 Port SFP Switch 10G Tx1270/Rx1330nm 10km BIDI Bi-directional SFP Mini-GBIC
SFP+10G 10KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module.It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 10kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of TxDisable.TxFault is provided to indicate that degradation of the laser .Loss of signal (LOS)output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
10g Sfp Compatibility Matrix Tx1330/Rx1270nm 10km BIDI Manufacturers WDM
SFP+10G 10KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module.It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 10km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Fiber Optic Switches 10G Tx1270/Rx1330nm 20km BIDI Sfp Transceiver Module
BIDI SFP+ 10G 20KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to 20km in9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of TxDisable. TxFault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
SFP Media Converter 10G Tx1330/Rx1270nm 20km BIDI Cisco Router
SFP+ 10G 20KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 20km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Asr 9010 Router 10G Tx1270/Rx1330nm 40km Patch Cord Cable Sfp Module
SFP+ 10G 40KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472andSFP+MSA. The module data link up to 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided to indicate that degradation of the laser. Loss of signal(LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Switch 10G Tx1330/Rx1270nm 40km Transmissions Wdm Cwdm
SFP+ 10G 40KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 40kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided to indicate that degradation of the laser. Loss of signal (LOS) out put is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Asa Firewall Price 10G Tx1270/Rx1330nm 60km Hollow Fiber Membrane Module
SFP+10G 60KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Firewall 10G Tx1330/Rx1270nm 60km Single Mode Fiber Optic Cable
SFP+ 10G 60KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
