Optical Transceiver Module
10G BIDI SFP+
new products

Compatible Fiber Optic Switches 10G Tx1270/Rx1330nm 20km BIDI Sfp Transceiver Module

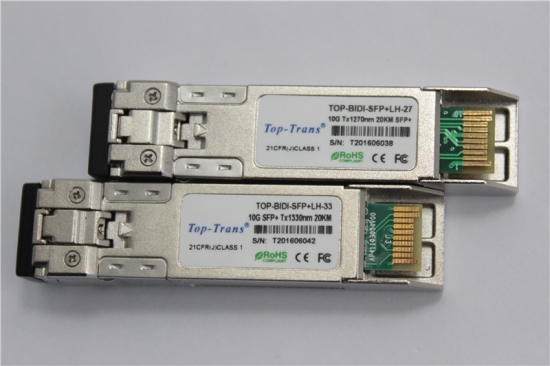

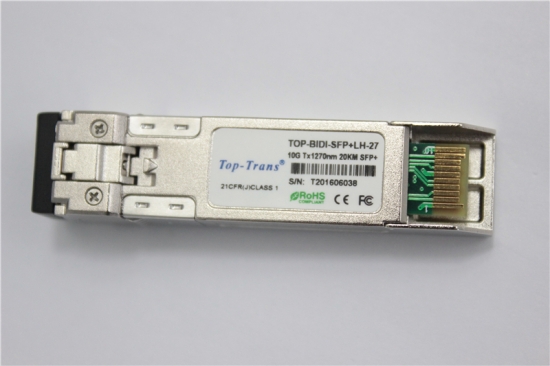

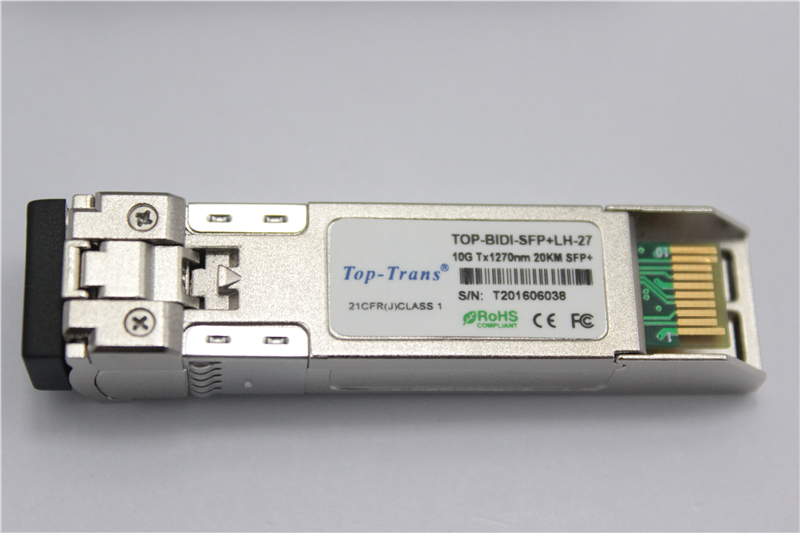

BIDI SFP+ 10G 20KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with  SFF-8472 and SFP+ MSA. The module data link up to 20km in9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of TxDisable. TxFault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.


  • item no.:

    TOP-BIDI-SFP+-LH-27
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • price range:

    1-10/59.5$
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    20km
  • Wavelength:

    Tx1270/Rx1330nm
  • Connector:

    Single port LC/SC
product details

Fiber Optic Switches 10G Tx1270/Rx1330nm 20km BIDI Sfp Transceiver Module

Cisco Sfp Transceiver Module 10G BIDI


PRODUCT FEATURES

● SFPMSA package with duplex LC connector

● Very low EMI and excellent ESD protection

● Digital Diagnostic Monitor Interface

● Hot pluggable

● 10Gb/s serial optical interface

● Upto20 km distance

● Compliant with SFP+MSA

● High transmission margin

● +3.3Vsingle power supply

● Below<1.5W power consumption

● SFP mechanical interface



APPLICATIONS

● 10GBASE-BXat10.3125Gb/s

● 10GBASE-BXat9.953Gb/s



STANDARD

● SFP+ MSA Compliant

● SFF-8472reversion9.5compliant

● IEEE802.3-2005compliant

● Telcordia GR-468-COREcompliant

● FCC47CFRPart15,ClassBcompliant

● FDA21CFR1040.10and1040.11,class1compliant

● RoHS compliant



Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered .
