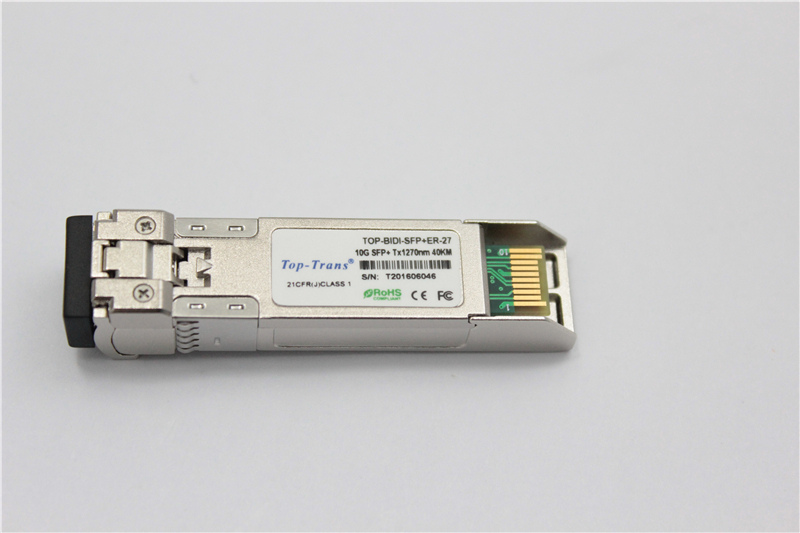

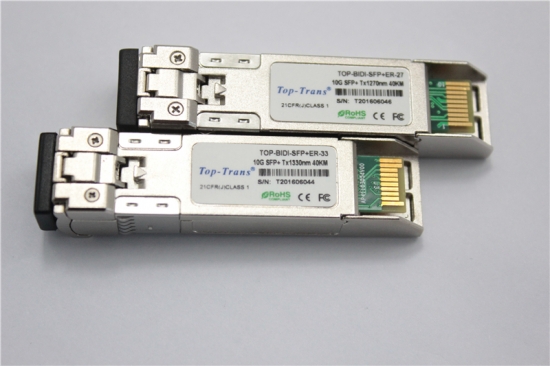

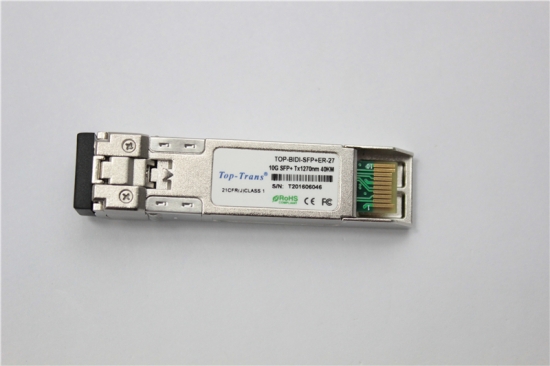

Compatible Asr 9010 Router 10G Tx1270/Rx1330nm 40km Patch Cord Cable Sfp Module

SFP+ 10G 40KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472andSFP+MSA. The module data link up to 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided  to indicate that degradation of the laser. Loss of signal(LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.


  • item no.:

    TOP-BIDI-SFP+-ER-27
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • price range:

    1-10/67$
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    40KM
  • Wavelength:

    Tx1270/Rx1330nm
  • Connector:

    Single port LC/SC
product details

Cisco Asr 9010 Router 10G Tx1270/Rx1330nm 40km Patch Cord Cable Sfp Module

10G Tx1270/Rx1330nm 40km Sfp Module

PRODUCT FEATURES

● SFPMS A package with duplex LC connector

● Very low EMI and excellent ESD protection

● Digital Diagnostic Monitor Interface

● Hot pluggable

● 10Gb/s serial optical interface

● Up to 40km distance

● Compliant with SFP+ MSA

● High transmission margin

● +3.3V single power supply

● Below<1.5Wpower consumption

● SFP mechanical interface



APPLICATIONS

● 10GBASE-BX at 10.3125Gb/s

● 10GBASE-BX at 9.953Gb/s



STANDARD

● SFP+ MSA Compliant

● SFF-8472 reversion 9.5 compliant

● IEEE802.3-2005 compliant

● Telcordia GR-468-CORE compliant

● FCC47CFR Part15, Class B compliant

● FDA21CFR 1040.10 and 1040.11, class1compliant

● RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered
