Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
read moreThe Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation,
read moreCompatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
read moreKit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28
read moreKit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498
read moreitem no.:
G620 Switch G620-48-brand:
BrocadeWarranty:
1 YearCondition:
NewData Rate:
64G/32G/16G
Specification:
Brand | Brocade | Switch Capacity | 32/16 Gbit/s |
Module type |
G620-48-32G-F
G620-48-32G-R
G620-24-32G-F
G620-24-32G-R
G620-24-F
G620-24-R
|
POD |
SMED8PTPOD-16GE
• 8p, 8 x 16 Gbps SWL SFP
SMED8PTPOD-01E
• 8p, 0 SFP
|
Powersupply | 1 Included | Fan | Included |
Rack Mount kit for
IEA310
|
XBR-R000296 |
USB Stick = Flash
Drive 4G
|
XBR-USB-4GB |
Warranty | 1-Year | Package Size |
2pcs/carton |
Optics
Description
Part Number
FC SFP Short Wave 5µm MMF
BR SFP, SWL(MMF), 8GB/s , 1-Pack
XBR-000163
BR SFP, SWL(MMF), 8GB/s, 8-Pack
XBR-000164
SFP+, SWL(MMF), 16GB/s, 1-Pack
XBR-000218
SFP+, SWL(MMF), 16GB/s, 1-Pack
XBR-000192
SFP+, SWL(MMF), 32Gb/s, 1-Pack
XBR-000212
SFP+, SWL(MMF), 32Gb/s, 8-Pack
XBR-000213
SFP Long Wave 9µm SMF
BR SFP, LWL (SMF), 8GB/s 10Km, 1-Pack
XBR-000153
BR SFP, LWL (SMF), 8GB/s 10Km, 8-Pack
XBR-000172
BR SFP, LWL (SMF), 8GB/s 25Km, 1-Pack
XBR-000174
BR SFP+, LWL(SMF), 10GFC 10Km, 1-Pack
FCSFP-B-10GFC-1L
BR SFP+, LWL(SMF), 10GFC 10Km, 1-Pack
XBR-000198
SFP+, LWL(SMF), 16GB/s 10km, 8-Pack
XBR-000199
SFP+, LWL(SMF), 32Gb/s, 10KM, 1-Pack
XBR-000238
SFP+, LWL(SMF), 32Gb/s, 10KM, 8-Pack
XBR-000239
QSFP
QSFP 16 Gbps Breakout capable
XBR-000245
QSFP 32 Gbps Breakout capable
XBR-000275
Ethernet
1 GE Copper
XBR-000190
1 GE SR SFP
E1MG-SX-OM
1 GE LR SFP
E1MG-LXOM
10 GbE SR SFP
XBR-000180
10 GbE USR SFP
10G-SFPP-USR
10 GbE LR SFP
XBR-000182
40 GbE SR QSFP
S26361-F5294-L110
40 GbE LR QSFP
S26361-F5317-L110

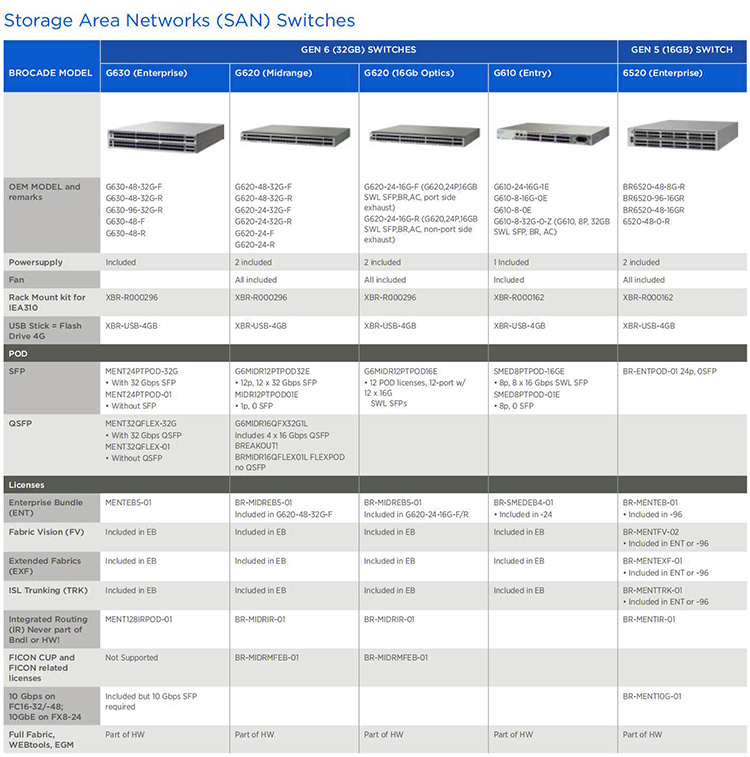

Brocade Model |
|
||||
G630(Enterprise) | G620(Midrange) | G620(16Gb Optics) | G610(Entry) | 6520(Enterprise) | |
|
|
|
|
|
|
|
|||||
OEM MODEL and
remarks
|
G630-48-32G-F
G630-48-32G-R
G630-96-32G-R
G630-48-F
G630-48-R
|
G620-48-32G-F
G620-48-32G-R
G620-24-32G-F
G620-24-32G-R
G620-24-F
G620-24-R
|
G620-24-16G-F (G620,24P,16GB
SWL SFP,BR,AC, port side
exhaust)
G620-24-16G-R (G620,24P,16GB
SWL SFP,BR,AC, non-port side
exhaust)
|
G610-24-16G-1E
G610-8-16G-0E
G610-8-0E
G610-8-32G-0-Z (G610, 8P, 32GB
SWL SFP, BR, AC)
|
BR6520-48-8G-R
BR6520-96-16GR
BR6520-48-16GR
6520-48-0-R
|
Powersupply | Included | 2Included | 2Included | 1 Included | 2Include |
Fan |
|
All included | All included | Included | All included |
Rack Mount kit for
IEA310
|
XBR-R000296 | XBR-R000296 | XBR-R000296 | XBR-R000162 | XBR-R000162 |
USB Stick = Flash Drive 4G |
XBR-USB-4GB | XBR-USB-4GB | XBR-USB-4GB | XBR-USB-4GB |
XBR-USB-4GB |
24/48 Ports Compatible Brocade G620 Switch G620-48-32G-F/G620-48-32G-R/G620-24-32G-F/G620-24-32G-R/G620-24-F/G620-24-R/G620-24-16G-F/G620-24-16G-R Optical Switch
Compatible Finisar FTLX2672D3xx 10Gb/s Bidirectional 30km SFP+ Optical Transceiver Low End Case Temperature (°C):-40,High End Case Temperature (°C):85,Diagnostics:Digital,Transmitter:DFB Laser,Receiver:PIN,Voltage Supply:3.3,Connector:LC,Wavelength:Bidi 1271/1331nm
Compatible D-Link DEM-310GT 1000BASE-LX Single-Mode 10 Km LC SFP Transceiver High-performance 1310 nm single-mode SFP transceiver.
Compatible WTD 8.5Gb/s SFP+ RTXM228-851 850nm 150m LC Optical Module transceiver are designed for optical interfaces for data communications with Single mode fiber(SMF). The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecom applications.
TOP-SFP+-16G-SW Compatible With Brocade XBR-000192,XBR-000193,57-0000088-01,DCX 8510,6520,6510,6505,7840 Switch,optical transceivers are designed for 16Gb/s serial optical interfaces.Please read more on our web.
Finisar’s FTRJ1421P1WCL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They comply with SONET OC-48 IR-1 (SDH STM S-16.1) standards, Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC-PI 13.0. They are compatible with SONET OC-12 and SONET OC-3 standards. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. They are RoHS compliant and leadfree per Directive 2002/95/EC and Finisar Application Note AN-2038.
TBD-SFP+-LH27 10G BIDI SFP+ TX1270/RX1330nm 20km 0-70°C single core LC compatible Huawei optical module
Finisar’s FTL4C1QM1C QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA1,2 , IEEE 802.3ba 40GBASE-LR43 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU4. See Finisar Application Note AN-2038 for more details5.
