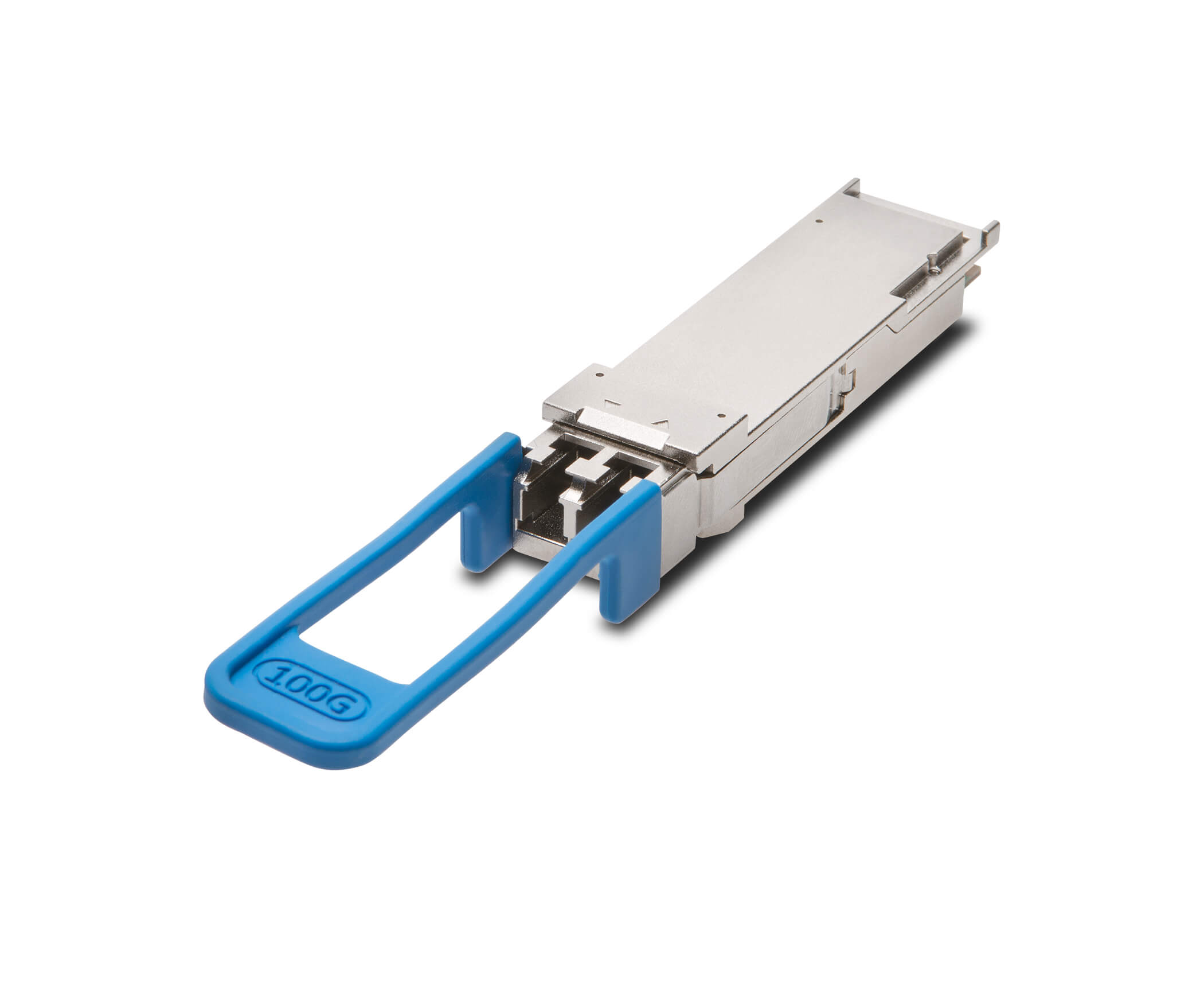

Compatible Juiper QSFP-100G-ER4L QSFP28 100G-ER4 Lite Ethernet only module Optical Transceriver
item no.:
100G QSFP28 ER4L 40kbrand:
Top-TransWarranty:
1 YearCondition:
NewTemperature:
0-75Data Rate:
100GDistance:
40kmWavelength:
DWDMConnector:
LCProduct Descripiton:
Transceiver Type:QSFP28
Connector:LC/PC
Monitoring Available:Yes
Digital Optical Monitoring:Yes
Standard: 100GBASE-ER4
MSA compliance (SFF, for e.g. SFF-8665)SFF-8665
Diagnostic support:Yes
NEBs (Yes or No):Yes
Minimum Junos/EVO OS release:17.3R1
Signaling rate, each lane:25.78125 ± 100 ppm
Transceiver input/output fibers:2
Transmitter wavelengths (range)
1294.53 to 1296.59 nm
1299.02 to 1301.09 nm
1303.54 to 1305.63 nm
1308.09 to 1310.19 nm
Receive lane wavelengths (range)
1294.53 to 1296.59 nm
1299.02 to 1301.09 nm
1303.54 to 1305.63 nm
1308.09 to 1310.19 nm
Transmitter output power, each lane (minimum)-2.9 dBm
Transmitter output power, each lane (maximum)2.9 dBm
Receiver input power, each lane (minimum)-20.9 dBm
Receiver input power, each lane (maximum)-3.5 dBm
Stressed receiver sensitivity (OMA) each lane (maximum)
-14.9 dBm (w/o FEC)
-17.9 dBm (w/ FEC)
Core size/cladding9/125 µm
Distance
30 km (w/o FEC)
40 km (w/ FEC)
Maximum Power consumption (W)
5.0 W (0 to 70 °C)
5.5 W (0 to 75 °C)
Operating Temperature (range):0 to 75 °C
Typical Weight & Dimensions
Weight: 0.2 kg
Height: 13.5 mm
Width: 18.35 mm
Depth: 73.4 mm
