This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
item no.:
TOP-QSFP28-100G-LR4lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transpayment:
EXWprice range:
1-6/936$Warranty:
3 YearsCondition:
NewTemperature:
0℃~70℃Data Rate:
100GDistance:
10kmWavelength:
CWDMConnector:
LC

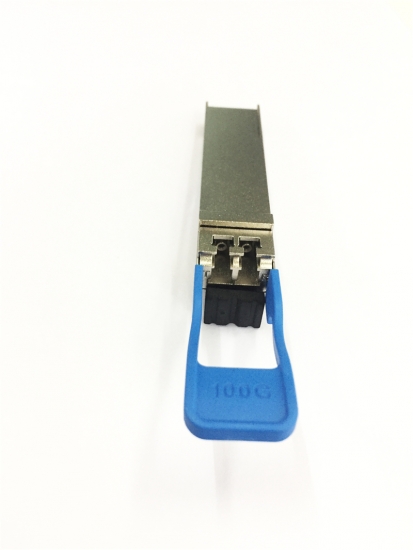

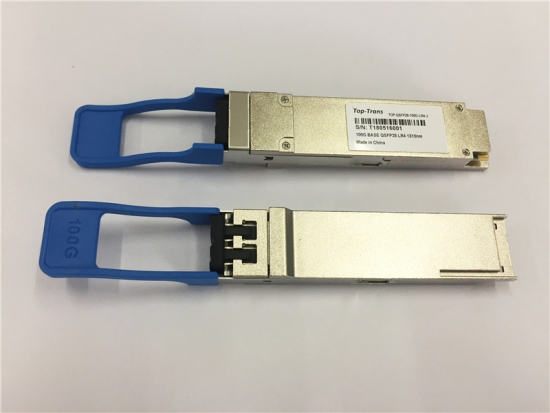

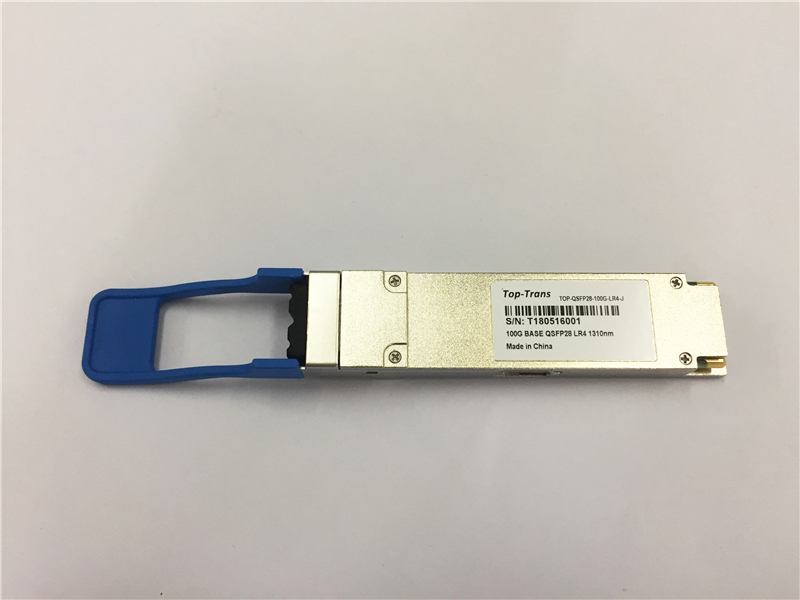

Finisar FTLC1151RDPL Compatible 100GBASE-LR4 QSFP28 10km Optical Module
Features
Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70℃
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant
Applications
100GBASE-LR4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
