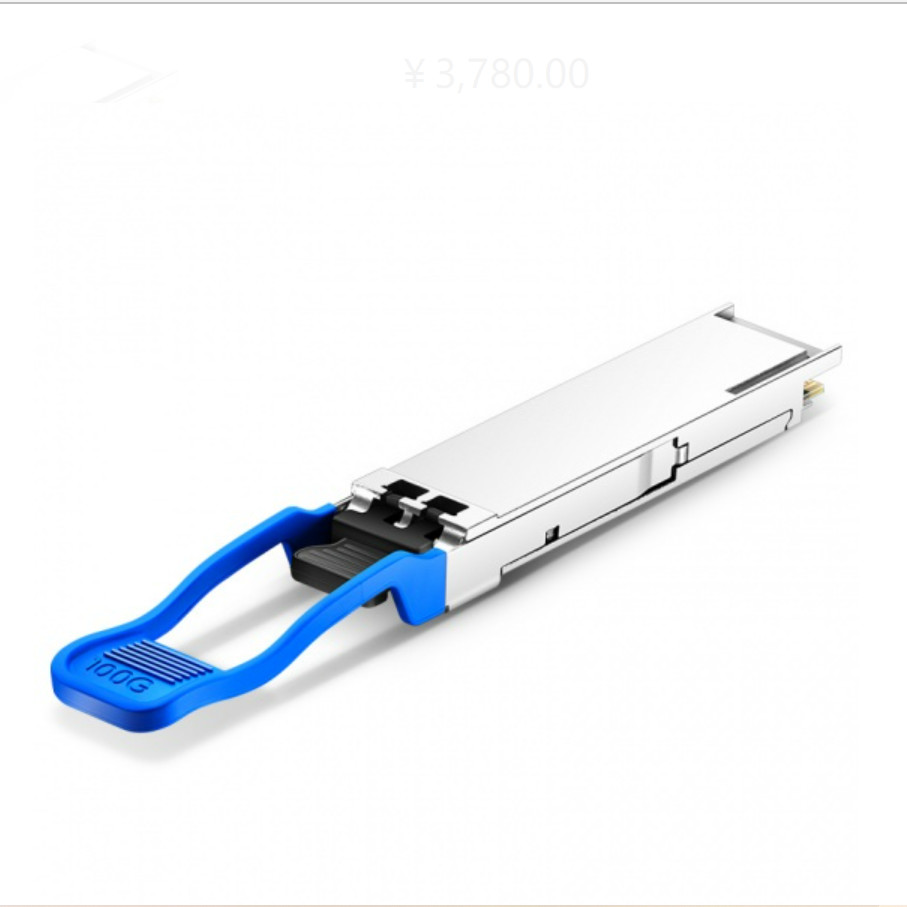

Q28-100G-BIDI Bi-Directional QSFP28 850nm 100m DOM Duplex LC MMF Optical Transceiver Module
item no.:
Q28-100G-BIDIlead time:
2-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wWarranty:
3 YearsCondition:
NewTemperature:
10℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
100GDistance:
70kmWavelength:
850nmConnector:
duplex LC
QSFP28 100G Transceiver Ethernet LWDM4 70KM Single-Mode Optical Fiber
QSFP28 100G Transceiver
100G QSFP28 Product Features
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range of 0℃~70℃
Single 3.3V power supply
Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)
VCSEL-based transmitter
CAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
100G QSFP28 Application
100G Ethernet over Duplex MMF
QSFP28 HIGHLIGHT
Featured with low-power, high-density and high-speed, the QSFP28 transceiver offers a popular
way to help you quickly ramp up to 100G transmission
FAQ
Q1. Are your transceiver modules compatible with Cisco?
A1: Yes, Topstar transceivers can compatible with Cisco. All the brand Topstar's SFP compatible as the fellowing:Cisco, Nortel, Juniper, 3COM, H3C, Alcatel-lucent, FOUNDRY, D-Link, EXTREME, Ruijie, NETGEAR, ZTE, Enterasys, ZyXEL, Linksys, Ericsson, DCN, Allied, SMC, Brocade, Force10, Hirschmann, Planet, Adtran, ASNTE, Trendnet, BDCOM, BLADE, BITWAY, Telco, Feixun...etc.
Q2. How does your company do regarding quality control?
A2: Every single optic individually tested in our test center , and also tested for compatibility on a variety of different brands of network equipment.
Q3. What are the trade terms?
A3: Lead Time: we keep 40,000pcs SFP in stock ready to ship.
Payment term: T/T, Western Union, Alipay, Paypal, L/C and so on for your option.
Q4. What is operating temperature range of optical modules?
A4: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
We can supply according to your request.
