QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM 10-3146-01 Transceiver Module

The original switches marked “Unique” below could be found at Topstar, eg: Juniper MX960 & EX 4300 series, Cisco Nexus 9396PX & Cisco ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.

item no.:
QSFP-100G-LR4-
brand:
Top-Trans
Warranty:
1 Year
Temperature:
0 to 70°C
Data Rate:
100G
Distance:
10km
Wavelength:
1310nm
Connector:
LC duplex

contact now

Datasheet

product details

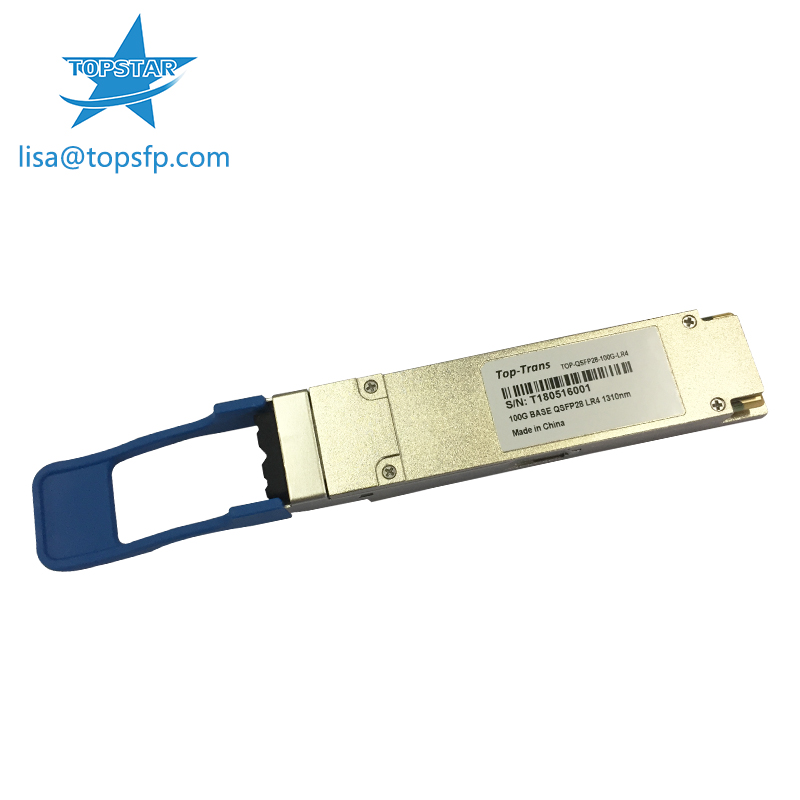

QSFP-100G-LR4-S Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM 10-3146-01 Transceiver Module

Features

Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant
