Fiber Channel Single Core 10GBASE-BX 10G 1550nm/1490nm 80km BiDi XFP Transceiver

XFP BIDI
new products

10GBASE-BX BiDi XFP Transceiver
10GBASE-BX BiDi XFP Transceiver 10GBASE-BX BiDi XFP Transceiver 10GBASE-BX BiDi XFP Transceiver

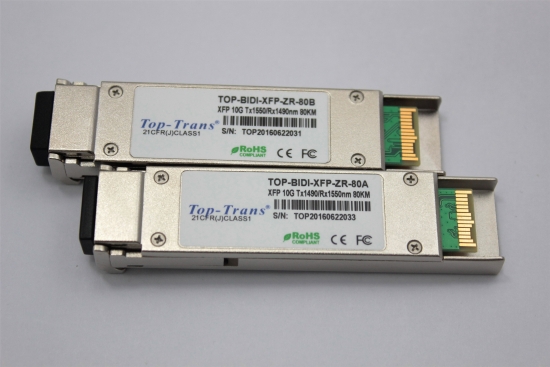

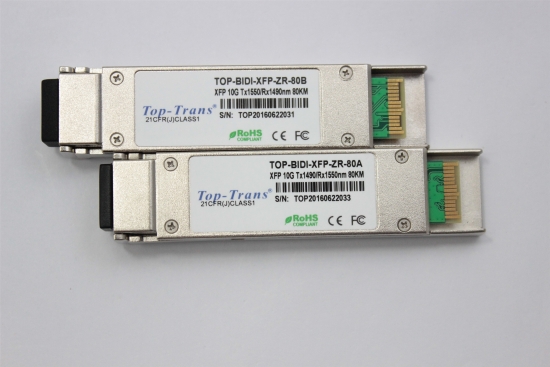

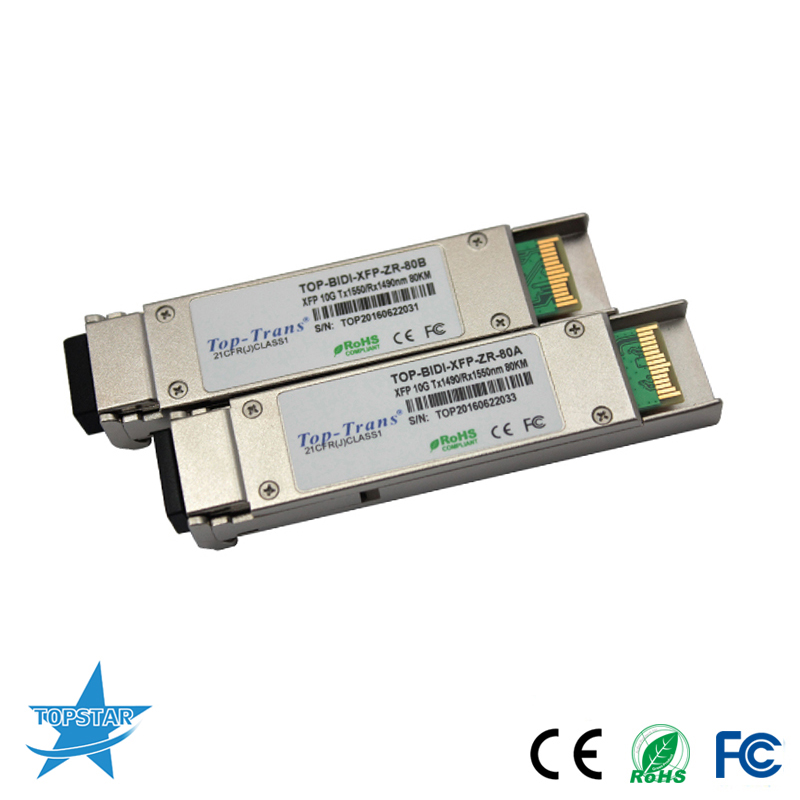

Fiber Channel Single Core 10GBASE-BX 10G 1550nm/1490nm 80km BiDi XFP Transceiver

TOPSTAR's TOP-BIDI-XFP-ZR-80 transceivers are designed for 10G Ethernet 10G BASE-LR/LW per 802.3ae and 10G SOI OC-192/SDH STM-64, and it can support data-rate from 9.953Gb/s to 11.1Gb/s. Digital diagnostics are avail-able via I2C interface as specified in the XFP MSA. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for data-com and telecom applications.

  • item no.:

    TOP-BIDI-XFP-ZR+-80B

  • lead time:

    3-4 working days

  • product orgin:

    China

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • payment:

    ex-w

  • Warranty:

    3 Years

  • Condition:

    New

  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃

  • Data Rate:

    10G

  • Distance:

    80km

  • Wavelength:

    1550/1490nm

  • Connector:

    LC
contact now
Datasheet
product details

Fiber Channel Single Core Cisco 10GBASE-BX 10G 1550nm/1490nm 80km BiDi XFP Transceiver

Cisco XFP-10G-BX-U-80KM is XFP Single Fiber Transceiver supporting 1.24-11.32Gbps data rate in 80 km distance over Single-Mode Fiber (SMF)


Cisco XFP-10G-BX-U-80KM





PRODUCT FEATURES

XFP MSA package with single LC connector

Typical bidi 1490/1550nm and 1550nm/1490nm for commission

APD receiver for high sensitivity

Hot pluggable

Support 9.95Gb/s to 11.1Gb/s bit rates

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

Below <1.5w power consumption

operating temperature range 0°C to 70°C

No reference clock requirement


APPLICATIONS

10GBASE-BX 10.3125Gb/s Ethernet

10GBASE-BX 9.953Gb/s Ethernet

SONET OC-192 &SDH STM I-64.1




STANDARD

XFP MSA Compliant

SFF-8472 reversion 9.5 compliant

IEEE802.3-2005 compliant

Telcordia GR-468-CORE compliant

FCC 47 CFR Part 15,Class B compliant

FDA 21 CFR 1040.10 and 1040.11,class1 compliant

RoHS compliant


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered




tags : BiDi XFP 1550nm/1490nm 80km XFP Single Core Transceiver 80km BiDi XFP Transceiver XFP BiDi Fiber Channel Transceiver 10GBASE-BX XFP Transceiver XFP BIDI 80km Module
