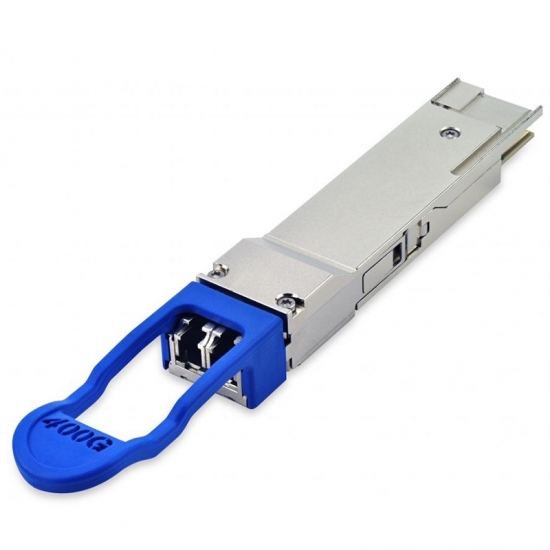

read moreCustom TOPSTAR TOP-QSFP-400G-LR8 NRZ 10km Optical Transceiver
item no.:
400G QSFP LR8 10kmbrand:
Top-TransClass 1 Laser
Table 1 – Absolute Maximum Ratings
|
|||||
Parameter |
Symbol |
Min. |
Max. |
Unit |
Notes |
Storage Temperature |
TS |
-40 |
85 |
ºC |
|
Supply Voltage |
VCC |
-0.5 |
3.6 |
V |
|
Relative Humidity (non-condensing) |
RH |
5 |
95 |
% |
|
Data Input Voltage Differential |
lVDIP-VDINl |
- |
1 |
V |
|
Control Input Voltage |
VI |
-0.3 |
VCC+0.5 |
V |
|
Control Output Current |
IO |
-20 |
20 |
mA |
|
Table 2 – Recommended Operating Conditions
|
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Operating Case Temperature |
TOPR |
0 |
- |
70 |
ºC |
1 |
Power Supply Voltage |
VCC |
3.135 |
3.3 |
3.465 |
V |
|
Instantaneous peak current at hot plug |
ICC_IP |
- |
- |
TBD |
mA |
|
Sustained peak current at hot plug |
ICC_SP |
- |
- |
TBD |
mA |
|
Maximum Power Dissipation |
PD |
- |
- |
TBD |
W |
|
Maximum Power Dissipation, Low Power Mode |
PDLP |
- |
- |
TBD |
W |
|
Signalling Speed per Lane |
DRL |
- |
26.5625 |
- |
Gbd |
|
Control Input Voltage High |
VIH |
VCC*0.7 |
- |
VCC+0.3 |
V |
|
Control Input Voltage Low |
VIL |
-0.3 |
- |
VCC*0.3 |
V |
|
Two Wire Serial Interface Clock Rate |
- |
- |
- |
400 |
kHz |
|
Power Supply Noise |
- |
- |
- |
50 |
mVpp |
|
Rx Differential Data Output Load |
- |
- |
100 |
- |
Ohm |
|
Operating Distance |
- |
2 |
- |
10000 |
m |
|
