Compatible SFP-10G-T-S RJ-45 10GBase Copper SFP+ Transceiver

BASE-T SFP
new products

SFP-10G-T-S

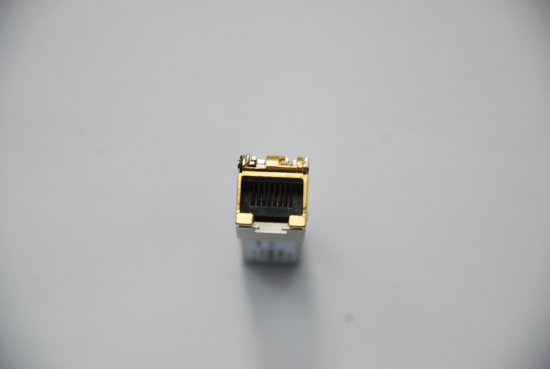

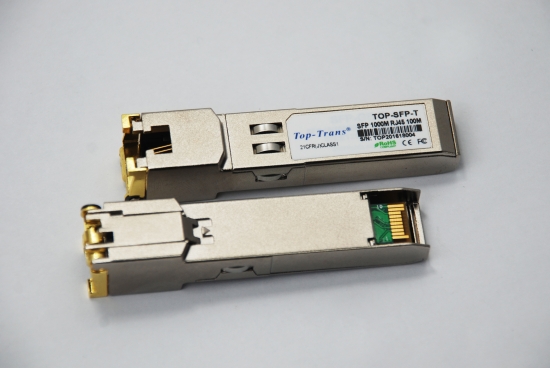

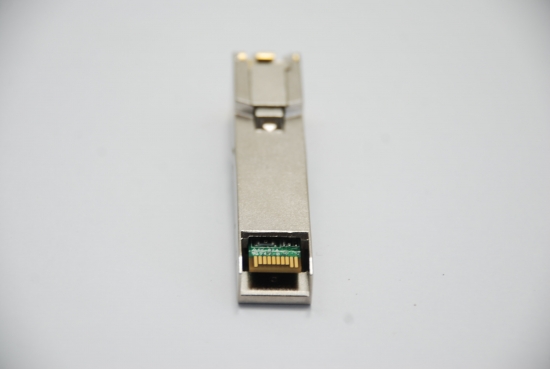

SFP-10G-T-S SFP-10G-T-S SFP-10G-T-S SFP-10G-T-S

Compatible SFP-10G-T-S RJ-45 10GBase Copper SFP+ Transceiver

10G RJ45 Copper SFP+ transceivers are based on the SFP Multi-Source Agreement (MSA). Copper RJ-45 Transceiver is compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. 10GBase Copper SFP+ uses the SFP's RX_LOS pin for link indication. If you pull up SFP's TX_DISABLE pin,  PHY IC should be reset.

  • item no.:

    TOP-SFP-T 10G

  • lead time:

    2-7 Working Days After Payment Received

  • product orgin:

    China

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • Warranty:

    3 Years

  • Condition:

    Compatible

  • Temperature:

    0°C to 65°C

  • Data Rate:

    10 G

  • Distance:

    100 M

  • Wavelength:

    N/A

  • Connector:

    RJ45
contact now
Datasheet
product details

Compatible  SFP-10G-T-S RJ-45 10GBase Copper SFP+ Transceiver

 SFP-10G-T-S Compatible is compatible with  etc. types of equipment for the network solution.


Product Features

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

Hot-pluggable SFP footprint

Compact RJ-45 connector assembly

RoHS compliant and lead-free

Single +3.3V power supply

10 Gigabit Ethernet over Cat 6a cable

Ambient Operating temperature: 0°C to +65°C


Professional Service

10GBase Copper SFP+ is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.

10G Copper SFP




OEM& ODM

Customized label and package. Both OEM and ODM service are offered.

tags : SFP-10G-T-S Compatible Copper RJ-45 Transceiver 10GBase Copper SFP+ RJ-45 10GBase Copper SFP+ SFP+ Transceiver
