Compatible OC-48/STM-16 2.5G SFP Modules 2KM

SFP 2.5G 2KM 1310nm single-mode optical transceivers Compatible OC-48/STM-16 2.5G SFP LR1 are optimized for STM-16/OC-48optical interface for telecom applications. They are designed for Multi-rate operation. 2.5G SFP Modules are optimized for high performance and cost effective to supply customers with the best solutions for telecom applications.

item no.:
TOP-SFP-2.5G-2A
lead time:
2-5 Working Days After Payment Received
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Compatible
Temperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
Data Rate:
2.5 G
Distance:
2 km
Wavelength:
1310 nm
Connector:
Dual LC

contact now

Datasheet

product details

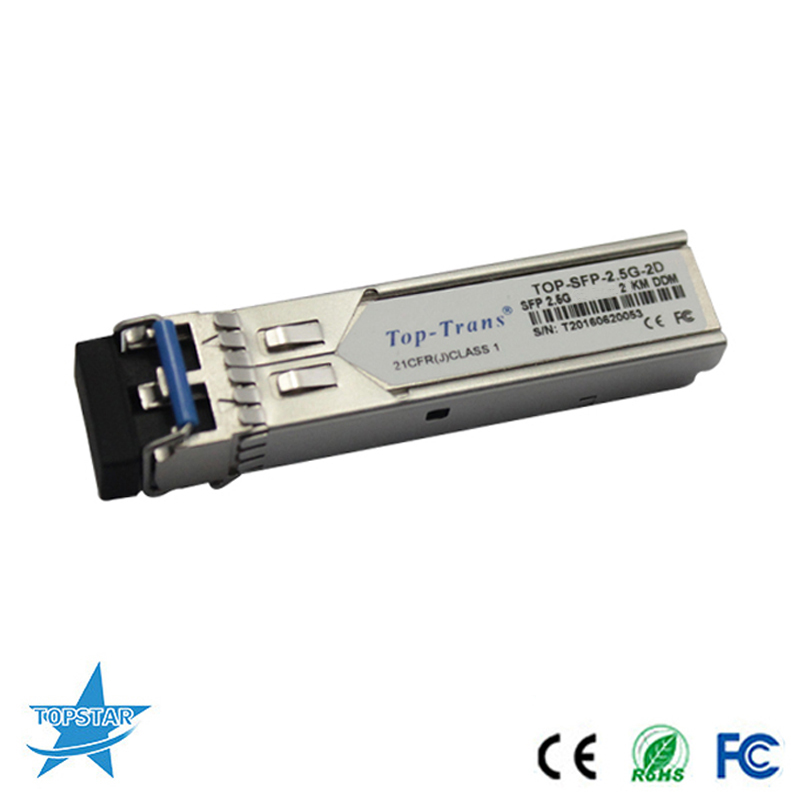

Compatible OC-48/STM-16 2.5G SFP Modules 2KM

2.5G SFP Modules is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.

Product Features

Transceiver unit with independent

FP laser transmitter and PIN photo-detector

Multi-rate operation, optimized at 2.488Gb/s

Up to 2KM transmission distance on 9/125μm SMF

Standard serial ID information compliant with SFPMSA

SFPMS A package with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

RoHS compliant

Case operating temperature:Commercial: 0°Cto+70°C,Extended: -10°Cto+80°C,Industrial: -40°Cto+85°C

Applications

Switch/Router

SAN/Server

Fiber Channel

Other optical transmission system

2.5G SFP

Professional Service

2.5G 1310nm 2KM SFP is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
