Compatible 2.5G 850nm SFP Module Multi Mode Transceiver

Compatible  2.5G 850nm SFP Module optical transceivers are designed for GE/1 x FC optical interface for data communications with multimode fibre (MMF). It operates at 1.25Gbps for GE. 2.5G SFP Module Multi Mode design is optimized for high performance and cost effective to supply customers with the best solutions for datacom applications.

  • item no.:

    TOP-SFP-2.5G-MMD
  • lead time:

    2-7 Working Days After Payment Received
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Compatible
  • Temperature:

    0°C to +70°C/ -10°C to +80°C / -40°C to +85°C
  • Data Rate:

    2.5 GB
  • Distance:

    550 M
  • Wavelength:

    850 nm
  • Connector:

    Dual LC
product details

Compatible Cisco 2.5G 850nm SFP Module Multi Mode Transceiver

2.5G 850nm SFP Multi Mode Module is compatible with types of equipment for the network solution.


Product Features

Transceiver unit with independent

850nm VCSEL laser  transmitter and PIN photo-detector

Up to 2.5Gbps data rate operation

Up to 300M transmission distance at 2.5Gbps

Standard serial ID information compliant with SFP MSA

SFP MSA package  with duplex LC connector

Digital Diagnostic Monitor Interface

Very low EMI and excellent ESD protection

+3.3V single power supply

RoHS compliant

Case operating temperature : Commercial: 0°C to +70°C; Extended: -10°C to +80°C; Industrial: -40°C to +85°C


Applications

Switch/Router

SAN/Server

Other optical transmission systems

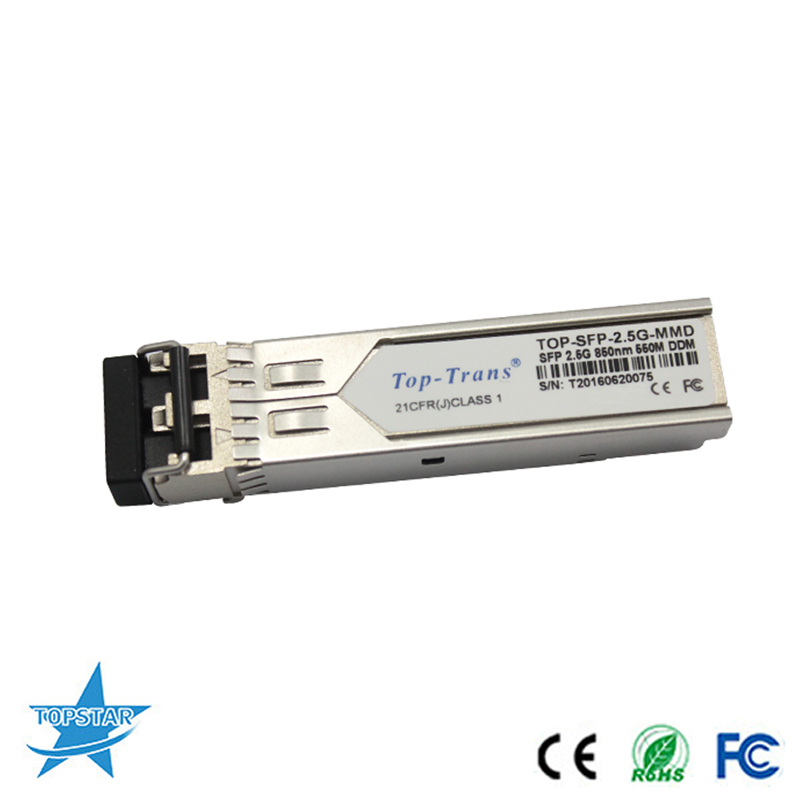

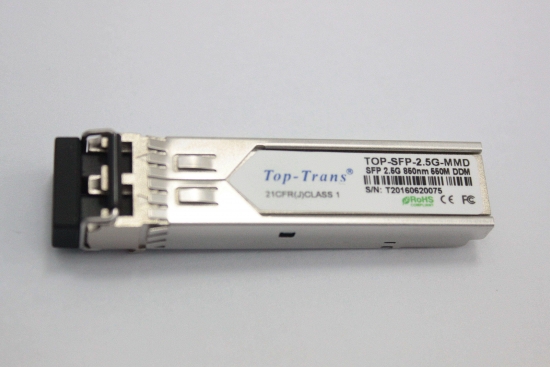

Below is the picture of Compatible 2.5G 850nm SFP Module

2.5g SFP Module Multi Mode


Professional Service

This 2.5G Multi Mode Transceiver is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.




OEM& ODM

Customized label and package. Both OEM and ODM service are offered.
