Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
read more
24/64 ports Brocade G720 Switch G720-64-32G-F Fiber Optical Switch
The Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation,
read more
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
read more
Compatible Mikrotik XS+2733LC15D SFP 1.25G FR Single Mode 1270nm+ 1330nm 15km Optical Transceivers
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28
read more
Compatible Mikrotik XS+2733LC15D 10G QSFP+ SR Optical Transceivers
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-24-16GR/BR6510-24-16GR/6505-24-0-R Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498
read more

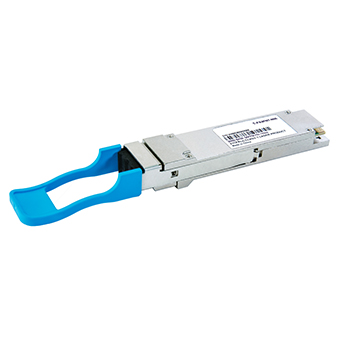

Compatible Innolight Finisar T-DQ4FNL-N00 200G QSFP-DD ER4 40km Optical Transeciver

Duplex LC connector,RoHS-6 compliant (lead-free),Built-in digital diagnostic functions

item no.:
200G QSFP-DD ER4 40k
brand:
Innolight
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
200G
Distance:
40km
Wavelength:
100m
Connector:
LC

contact now

product details

INNOLIGHT DATA CENTER

10G SFP+

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
TR-PX13L-N00	SFP+ LR	10G	1310nm DFB	PIN	-8.2	0.5	-	-14.4	<1w	10km	0-70
TR-PX15E-N00	SFP+ ER	10G	1550nm EML	PIN	-3	3	-	-15.8	<1.5w	40km	0~70
TR-PX15Z-N00	SFP+ ZR	10G	1550nm EML	APD	0	4	-	-24	<1.8w	80km	0~70

25G SFP28

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
TF-PYxxx-N00	SFP28 AOC	25G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	1.0 (each SFP28)	100m	0-70
TR-PY85S-N00	SFP28 SR	25G	850nm VCSEL	PIN	-8.4	2.4	-10.3	2.4	1	100m	0~70
TR-PY13L-N00	SFP28 LR	25G	1310nm DFB	PIN	-7	2	-13.3	2	1	10km	0~70
TR-PY13E-N00	SFP28 ER	25G	1310nm EML	APD	-3	6	-21	-4	1.5	40km	0~70
TR-PB85S-N00	SFP28 32GFC SR	28G	850nm VCSEL	PIN	-6.2	2	-10.3	2	1	100m	0~70
TR-PB13L-N00	SFP28 32GFC LR	28G	1310nm DFB	PIN	-5	2	-13.3	2	1.2	10km	0~70

40G QSFP

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
TR-QQ85S-N00	QSFP+ eSR4	40G	850nm VCSEL	PIN	-7.6	1	-9.5	2.4	1.5	100m	0-70
TR-QQ85X-N00	SFP28 SR	40G	850nm VCSEL	PIN	-7.3	1	-9.9	2.4	1.5	300m	0~70
TR-QQ13T-N00	QSFP+ IR4	40G	DFB CWDM	PIN	-7	2.3	-11.7	2.3	3.5	10km	0~70
TR-QQ13L-N00	QSFP+ LR4	40G	DFB CWDM	PIN	-7	2.3	-21	-4	1.5	40km	0~70
TR-QQ13E-N00	QSFP+ ER4	40G	DFB CWDM	APD	-2.7	4.5	-21.2	-4.5	3.5	40km	0~70
TR-IQ13C-N00	QSFP+ PSM IR4	40G	1310nm DFB	PIN	-5.5	1.5	-11.5	1.5	3.5	10km	0~70
TR-IQ13L-N00	QSFP+ PSM LR4	40G	1310nm DFB	PIN	-5.5	1.5	-12.6	1.5	3.5	10km	0~70
TF-QQxxx-N00	QSFP+ AOC	40G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	1.5 (each QSFP+)	100m	0~70
TR-QQ13Y-N00	QSFP+ LX4(MMF/SMF)	40G	DFB CWDM	PIN	-5 / -7	3.5 / 2.3	-7 / -11.7	3.5 / 2.3	3.5	150m / 2km	0~70
TF-QPQXxxx-N00	QSFP+ to 4x SFP+ AOC	40G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	1.5 (QSFP+)0.8 (each SFP+)	100m	0~70

100G QSFP28

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
TR-FC85S-N00	QSFP28 SR4	100G	850nm VCSEL	PIN	-8.4	2.4	-10.3	2.4	2.5	100m	0-70
TR-FC13R-N00	QSFP28 LR4 Ethernet	100G	1296-1309nm LWDM DFB	PIN	-4.3	4.5	-10.6	4.5	4	10km	0~70
TR-FC13T-N00	QSFP28 CWDM4	100G	DFB CWDM	PIN	-6.5	2.5	-11.5	2.5	3.5	10km	0~70
TR-FC13D-N00	QSFP28 ER4 Lite	100G	1296-1309nm LWDM EML	APD	-2.5	6.5	-16.65 / -20.5	-3.5	4.5	30km / 40km (w/ FEC)	0~70
TR-FC13D-NSN	QSFP28 ER4 Lite Dual Rates	100G / 112G	1296-1309nm LWDM EML	APD	-0.7	6.5	-14.85 / -18.7	-3.5	4.5	30km / 40km (w/ FEC)	0~70
TP-VC13Txxxx-N00	QSFP28 PSM4 Pigtail	100G	1310nm DFB	PIN	-5.5	2	-10.5	2	3.5	2km	0~70
TF-FCxxx-N00	QSFP28 AOC	100G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	N/A	10km	0~70
TF-QQxxx-N00	QSFP+ AOC	100G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	2.5 (QSFP28)1.0 (each SFP28)	100m	0~70
TR-VC13T-N00	QSFP28 PSM4	100G	1310nm DFB	PIN	-5.5	2	-10.2	2	3.5	2km	0~70

200G QSFP-DD

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
T-FX4FNS-N00	QSFP56 SR4	200G	850nm VCSEL	PIN	-6.5	4	-8.4	4	5.5	100m	0~70
T-FX4FNT-H00	QSFP56 FR4	200G	EML CWDM4	PIN	-4.2	4.7	-8.2	4.7	6.5	2km	15~65
C-FXT4FNMxxx-N00	QSFP56 200G to QSFP28 2*100G AOC	200G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	8 (200G side) 4 (100G side)	20m	0~70

400G QSFP-DD SR8

P/N	Product Description	Data Rate(Gbit/s)	TX	RX	TX_Min (dBm)	TX_Max (dBm)	RX_Min (dBm)	RX_Max (dBm)	Power Consumption	Reach	Temperature (deg C)
T-DQ8FNS-N00	QSFP-DD SR8	400G	850nm VCSEL	PIN	-6	4	-7.9	4	12	100m	0-70
T-DP4CNH-N00	QSFP-DD DR4	400G	1310nm EML	PIN	-2.9	4	-5.9	4	12	500m	0~70
T-DP4CNT-N00	QSFP-DD DR4+	400G	1310nm EML	PIN	-2.4	4	-6.4	4.5	12	2km	0~70
T-DQ4CNT-N00	QSFP-DD FR4	400G	EML CWDM4	PIN	-3.3	3.5	-7.3	3.5	12	2km	0~70
T-DQ4CNL-N00	QSFP-DD LR4	400G	EML CWDM4	PIN	-1.4	4.5	-7.7	-4.5	12	10km	0~70
C-DQ8FNMxxx-H00	QSFP-DD AOC	400G	850nm VCSEL	PIN	N/A	N/A	N/A	N/A	12.0 (each QSFP-DD)	100m	0~70
T-DQ4CNE-N00	QSFP-DD ER4	400G	EML LWDM4	APD	0.4	1.5	-12.6	-2.5	12.0	30km 40km (w/ FEC)	0~70
