read moreFinisar’s FTLX1871D3BNL transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431 , SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. Finisar’s FTLX1871D3BNL transceivers are RoHS compliant as per Directive 2011/65/EU and Finisar Application Note AN-2038.
item no.:
FTLX1871D3BNLlead time:
2-3 working daysproduct orgin:
Malaysiabrand:
Finisarshipping port:
Shenzhenpayment:
ex-wWarranty:
1 YearCondition:
OriginalTemperature:
-5°C-85°CData Rate:
10GDistance:
80kmWavelength:
1550nmConnector:
LC

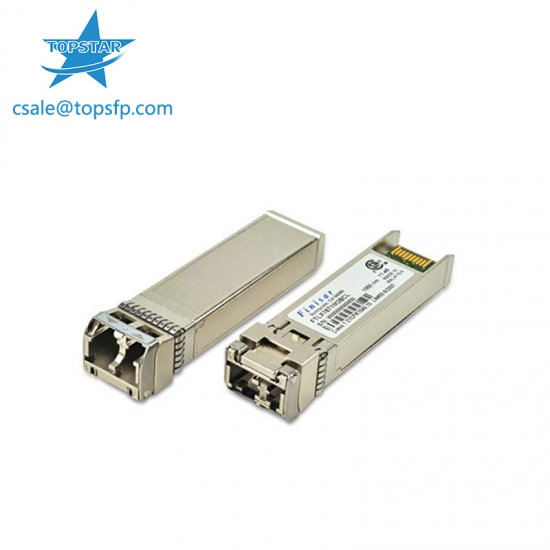

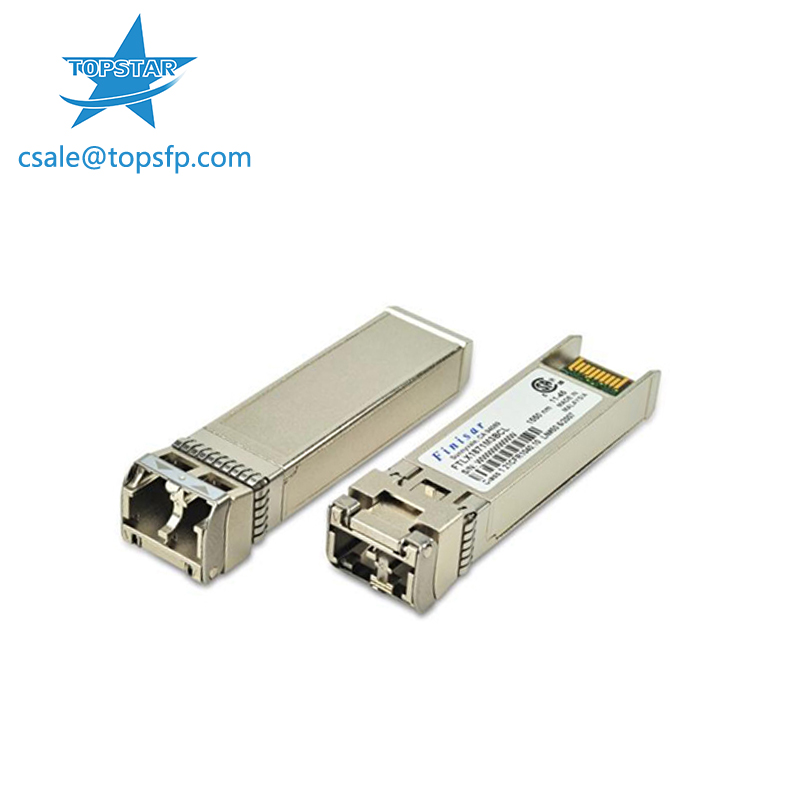

FTLX1871D3BNL Finisar 10GBASE-ZR 80km Single Mode, Multi-Rate SFP+ Transceiver
10G Ethernet ZR and 10G Fibre Channel 80km original Finisar Modules
Product Fectures
Brand | Finisar |
Original Place | Malaysia |
Form Factor | SFP |
Part Number |
FTLX1871D3BNL |
Datarate | 10G |
Wavelength | 1550nm |
Distance |
80km |
Connector | LC Connector |
Temperature | -5-85°C |
Warranty |
1 year |
Details
Hot-pluggable SFP+ footprint
Supports 8.5 and 9.95 to 11.3 Gb/s
80km link length
-5/85°C case temperature range
Cooled 1550nm EML laser
Limiting electrical interface receiver
Duplex LC connector
Built-in digital diagnostic functions
RoHS-6 compliant (lead-free)
APPLICATIONS
10G Ethernet ZR and 10G Fibre Channel
OTN G.709 OTU1e/2/2e FEC bit rates
8.5Gb/s Fibre Channel
