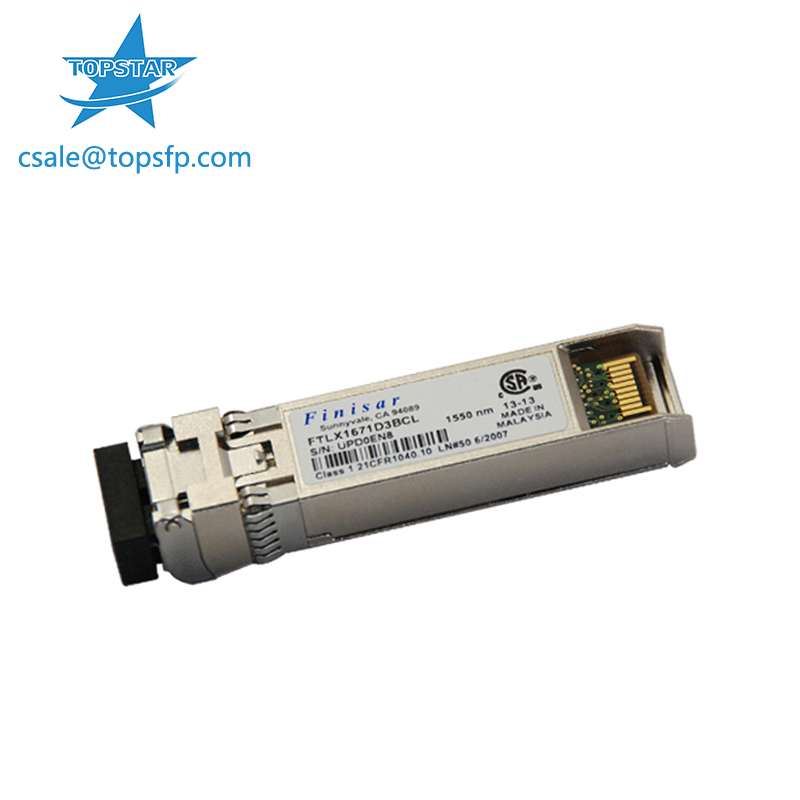

Finisar FTLX1671D3BTL Network Transceiver Module SFP+ up to 40 km 10.3 Gb/s LC 1550nm
RoHS-6 Compliant 10Gb/s Industrial Temperature 40km Datacom SFP+ Transceiver
Product Fectures
Brand | Finisar |
Original Place | Malaysia |
Form Factor | SFP |
Part Number |
FTLX1671D3BTL |
Datarate | 10G |
Wavelength | 1550nm |
Distance |
40km |
Connector | LC Connector |
Temperature | -40-85°C |
Warranty |
1 year |
Details
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.3Gb/s bit rates
Power dissipation < 1.5W; Typical <1W
RoHS-6 compliant (lead-free)
Industrial temperature range -40°C to 85°C
Single 3.3V power
supply Maximum link length of 40km 1550nm
cooled CMLTM technology
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
APPLICATIONS
10GBASE-ER/EW 10G Ethernet
